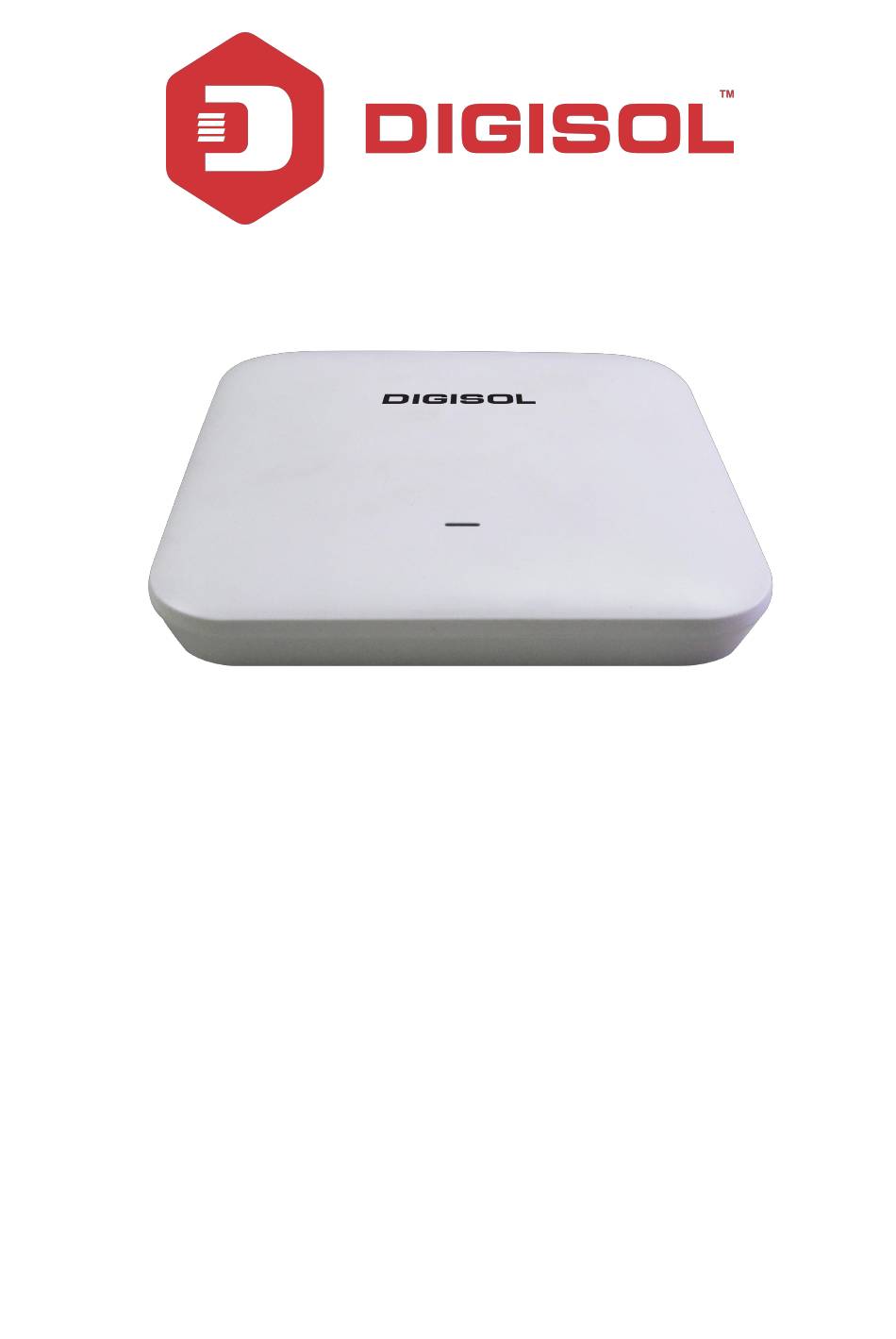

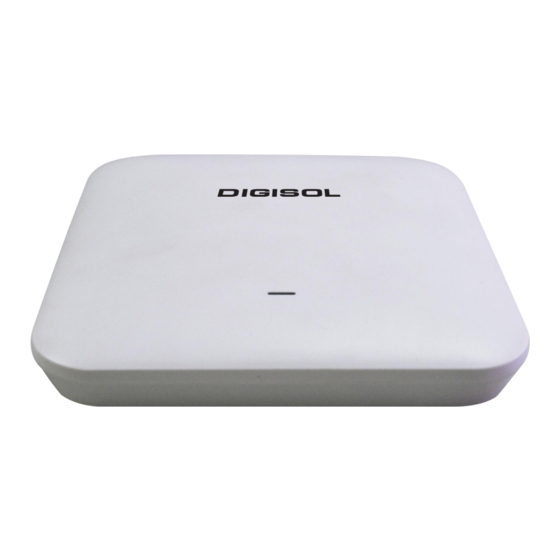

DG-WM2003SIE
User Manual
V1.0
2017-11-08
As our products undergo continuous development the specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-WM2003SIE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digisol DG-WM2003SIE

Summary of Contents for Digisol DG-WM2003SIE

  • Page 1 DG-WM2003SIE User Manual V1.0 2017-11-08 As our products undergo continuous development the specifications are subject to change without prior notice.
  • Page 2 Please check with your local distributors for latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademark DIGISOL is a trademark of Digisol Systems Ltd. All other trademarks are the property of the respective manufacturers.

  • Page 3: Table Of Contents

    DG-WM2003SIE User Manual INDEX 1. Hardware and Operation Mode Instruction……………..……………………..………………………………4 1.1. LED indicator:…………………………………………..………………………………………………………..…….4 1.2. AP Router Interface:……………………………………………..………………………………………………..…4 1.3. Power Supply:……………………………………………………………..……………………………………………4 1.3.1. PoE Adapter Power Supply:……………………………………..…………………...………………...4 1.3.2. PoE Switch Power Supply…………………………........………..………..5 1.4. AP Router installation:…....................…..5 2. Connect Wireless AP Router with PC:……………………………………………..…..………………………………………7 3.

  • Page 4: Hardware And Operation Mode Instruction

    Before using this access point, please check if there is anything missing in the package, and contact your dealer of purchase to claim for missing items:  DG-WM2003SIE Ceiling Mount AP Router  DC 12V Power Adapter  Patch Cord ...

  • Page 5: Power Supply

    DG-WM2003SIE User Manual 1.3. Power Supply 1.3.1 PoE Adapter Power Supply: The connection diagram shown as P1, internet cable connect to PoE adapter’s LAN Port, Ceiling AP Router’s WAN port connect to PoE adapter’s PoE Port, then PC will access into ceiling AP Router through cable or wireless.
  • Page 6 DG-WM2003SIE User Manual...

  • Page 7: Connect Wireless Ap Router With Pc

    You can connect the PC with wireless AP Router by Wireless SSID and LAN cable: The diagram of wireless connection showed as follow: Pls note: the default SSID is DG-WM2003SIE, SSID’s password is blank P3. Connect the PC to AP Router using WiFi as shown above...

  • Page 8: Login

    DG-WM2003SIE User Manual 3. Login 1. Connect the Ceiling AP Router with computer by wired or wireless 2. The default IP address of this wireless AP Router is 192.168.1.200. Configure the PC’s local connection. IP address as 192.168.1.X (X is number from 2 to 254), subnet mask is 255.255.255.0.
  • Page 9 DG-WM2003SIE User Manual 3. Input 192.168.1.200 into browser, login page will appear, the default login password: admin. P7: Login Page 4. After login the following page appear which shows Device Status. This page will show the device default operation mode, Channel, Connection status, CPU usage, Wireless settings, LAN Setting, Wireless AP’s Location, Hardware/Firmware version.

  • Page 10: Web Gui Interface Setting

    DG-WM2003SIE User Manual 4. WEB GUI interface Setting 4.1. Status After login, the Device Status and home page will be showed P9: Device Status This page, show the device default operation mode, channel, end user QTY, connection status, CPU usage status, Wireless, LAN and AP location info.
  • Page 11 DG-WM2003SIE User Manual P10: Wireless Setting As shown below user can set LAN Setting to configure the DHCP or Static IP address. P11: LAN Setting...

  • Page 12: Wizard Configuration

    DG-WM2003SIE User Manual AP location setting: can mark where the AP set up, and AP name. P12: AP Location Setting 4.2. Wizard Configuration Wizard: It instruct users to configure wireless AP Router’s operation mode based on needs, there are four operation mode including Gateway, Repeater, WISP, Wireless AP. Please confirm the operation mode first before starting the configuration.

  • Page 13: Gateway Mode

    DG-WM2003SIE User Manual P13: Wizard Configuration 4.2.1 Gateway Mode Before Clicking the Gateway mode, confirm your internet will be Static IP, PPPoE, or DHCP. Then clicking on the Gateway mode will pop up the below image. Please choose the right WAN setting mode, then click next to continue.
  • Page 14 DG-WM2003SIE User Manual P15: Wireless setting in Gateway mode Please note: to make the device work in some clear channel, user can click wireless analyzer at first. Check Less AP in the channel, and then select your channel accordingly, then Wireless performance will be more stable.
  • Page 15 DG-WM2003SIE User Manual Clicking next will complete the Gateway mode setting and show following picture: Please Note: The equipment will restart automatically for the changes to take effect. P17: Settings complete in Gateway mode When return to Status page, will show Wireless router’s SSID, Internet connection, LAN connection status shown as below.

  • Page 16: Wifi Repeater Mode

    DG-WM2003SIE User Manual 4.2.2. WiFi Repeater mode 1. Login the Web management page, click “Wizard” then “WiFi Repeater” 2. Scan AP and select the AP’s SSID want to bridge then input the AP’s key, click next to complete. P19: Repeater mode Click Return button, will back to Status, show Repeater mode data, will show fail or success, and user can configure this data in this page if required.
  • Page 17 DG-WM2003SIE User Manual P20: Status in Repeater mode In wifi repeater operation mode, the default is SSID disable. If you want to enable SSID, then click Wireless Setting. Pls note, when click wireless relay setting, following page will pop up, you can make changes from here easily.

  • Page 18: Wisp Operation Mode

    DG-WM2003SIE User Manual 4.2.3. WISP Operation mode Click WISP operation mode in Wizard, then will pop up the configure page, please set the WISP operation mode based on the steps shown in picture: P22: WISP mode Select the appropriate wireless AP and configure the correct WAN setting in WISP operation mode, then next to complete.
  • Page 19 DG-WM2003SIE User Manual P23: WAN setting in WISP mode Then complete and back to status, will show the connection fail or success, then can configure the data based on request: P24: Status in WISP mode...

  • Page 20: Ap Operation Mode

    DG-WM2003SIE User Manual Remark: When click WAN Setting, will pop up following picture to ask you choose PPPoE, DHCP or Static IP P25: WAN setting in WISP mode 4.2.4. AP Operation mode Set the wireless data, AP Location info as required, then click next to continue and enter into LAN setting.
  • Page 21 DG-WM2003SIE User Manual P27: LAN setting in AP mode Please Note: The equipment will restart automatically for the changes to take effect. P28: Status in AP mode...

  • Page 22: Advanced Setting

    DG-WM2003SIE User Manual 4.3. Advanced Setting In advanced setting you can get wireless AP Router’s device status, Wireless setting, Network setting and AP management configuration. Let’s click Advanced Setting in status page, will show Return home, Setup Wizard which we showed before.

  • Page 23: Wireless Setting

    DG-WM2003SIE User Manual In LAN Status, we can check device IP address, Subnet Mask, LAN MAC address and other info showed in following picture. P31: LAN status 4.3.2. Wireless Setting Wireless setting, mainly to configure the wireless SSID, password, encryption, channel, Multi SSID, tag VLAN &...

  • Page 24: Virtual Ap

    DG-WM2003SIE User Manual Wireless Status: On mean SSID on, Off mean SSID off. 2G Wireless Analyzer: Mainly to analyze the AP’s signal strength and channel, to make user more easy to choose the channel with less wireless AP and to avoid the Wireless Interference.

  • Page 25: Access Control

    DG-WM2003SIE User Manual P34: Virtual AP 4.3.4. Access Control Allow or deny the users access into this device based on MAC address. P35: MAC Access Control...

  • Page 26: Advanced Settings

    DG-WM2003SIE User Manual 4.3.5. Advanced Settings This page, will show the regional info, mode, RF Power, Max user access,etc. P36: Advanced Setting 4.3.6. Network Setting In network, you can configure LAN setting and tag VLAN as follow: In LAN Settings, mainly including Static IP and DHCP.

  • Page 27: Management

    DG-WM2003SIE User Manual In VLAN part, you need an VLAN switch and make sure the multi SSID is enable, then input the VLAN ID to different SSID. P38: Tag VLAN setting 4.3.7. Management It show’s the System time, Logs, Upgrade firmware, System, User info.
  • Page 28 DG-WM2003SIE User Manual Upgrade Fimrware:- Browse the fimrware file and click on upgrade. Wait till the upgrade is successfull. The device will reboot automatically and successfull firmware upgrade. P40: Firmware Upgrade System:- You can save the config or restore the previously saved config or reset the device to its default config.

  • Page 29: Share Internet And Obtain Ip Address Automatically

    DG-WM2003SIE User Manual 5. Share Internet and Obtain IP address automatically Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. The computer will obtain the IP address from router or base station to get Internet.

  • Page 30: Troubleshooting

    DG-WM2003SIE User Manual Troubleshooting The Failure phenomenon and solution. If the problems are not listed, please contact the local service or call the Toll Free service. We are willing to offer the service. Failure phenomenon Solution Pls make sure the PoE module connection is right. POE...
  • Page 31 DG-WM2003SIE User Manual Press the “Reset” button more than 15 seconds after How to Reset Wireless AP Router power on. The device will restore factory default after it restarts. This product comes with three Years warranty. For further details about warranty policy and product registration, please visit support section of www.digisol.com...
  • Page 32 DG-WM2003SIE User Manual...
  • Page 33 DG-WM2003SIE User Manual...
