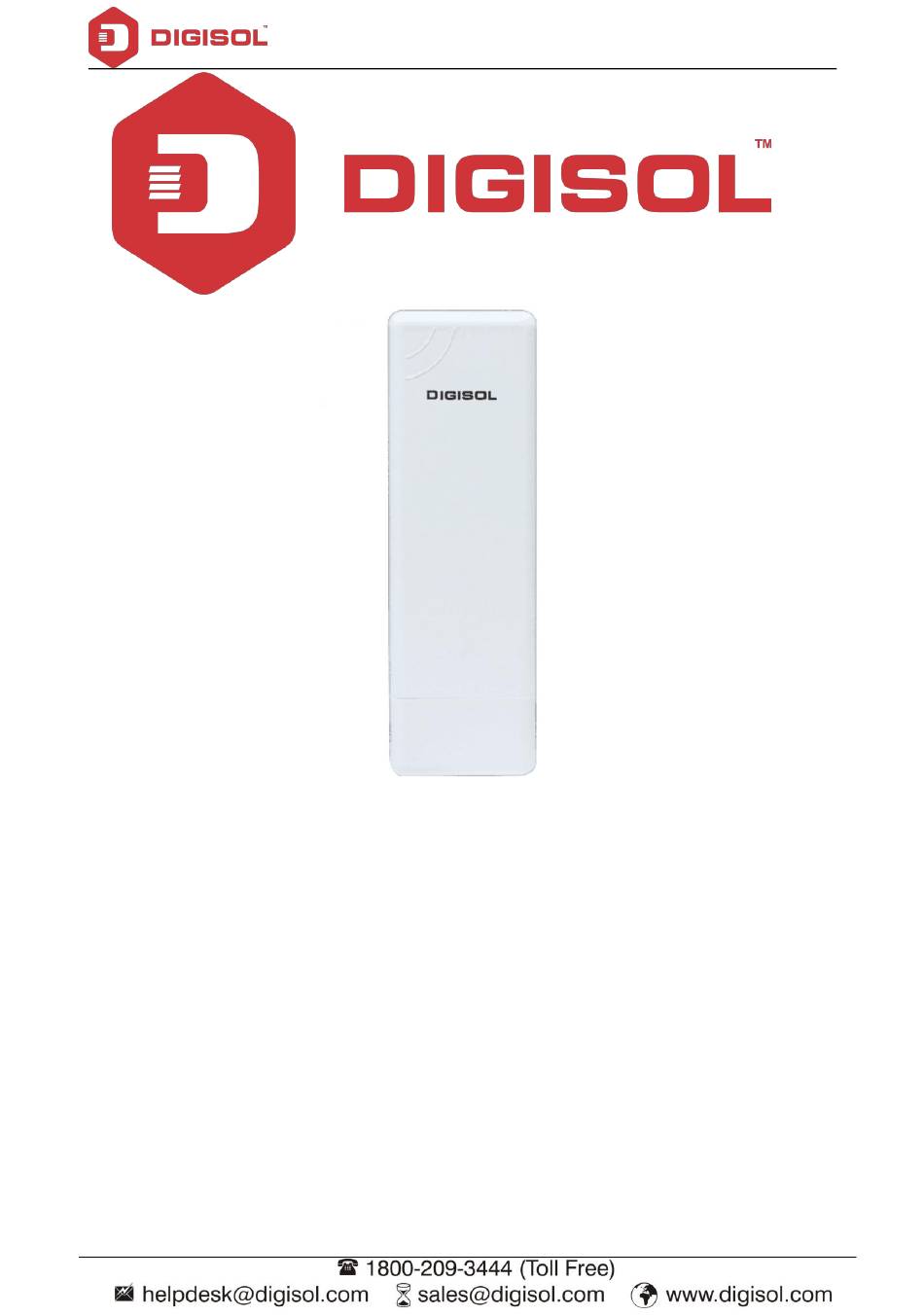

- Page 1 DG-WA1102NPLV2 User Manual DG-WA1102NPLV2 DIGISOL 2.4GHZ OUTDOOR ACCESS POINT User Manual V1.0 2017-01-30 As our products undergo continuous development the specifications are subject to change without prior notice...
- Page 2 DG-WA1102NPLV2 User Manual COPYRIGHT Copyright 2017 by DIGISOL SYSTEMS LTD. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.
-
Page 3: Table Of Contents
DG-WA1102NPLV2 User Manual INDEX PRODUCT INFORMATION ........................4 ............4 ARDWARE INSTALLATION AP ............ 4 OW TO CONNECT AND CHARGE THE : AP S ............... 5 TART AND OG IN : WEB GUI : ............9 INTERFACE ETTING ........28... -
Page 4: Product Information
DG-WA1102NPLV2 User Manual Product Information Thank you for purchasing this Outdoor AP DG-WA1102NPLV2. This manual will instruct you how to configure and manage this AP, enable you to use it in a perfect status. After installing this AP, you will be able to enjoy surfing freely. -
Page 5: Ap Start And Log In
DG-WA1102NPLV2 User Manual POE: This equipment can be powered over Ethernet, Connect AP’s WAN/LAN Port with PoE adapter’s POE port by LAN Cable (AP’s LAN port and WAN port support the 12V/24V PoE.) Please refer to fig 2 for PoE Power and AP configuration... - Page 6 DG-WA1102NPLV2 User Manual Fig 3 Configure the computer’s IP address (by wired) Fig 4 Configure the computer’s IP (by wired) B. Please follow fig 5 to configure the computer’s IP address wirelessly.
- Page 7 If you want to connect our AP wirelessly after IP address configuration, please right click Wireless networking Connection, then View Available Wireless Networks. The default SSID is DG-WA1102NPLV2. Click Refresh network list, double click the correct SSID and input the passwords, if you have, then connect. Please refer to fig 6 and fig 7...
- Page 8 DG-WA1102NPLV2 User Manual Fig 7 AP Wireless Connection If your computer has built in 802.11b/g/n wireless adapter, but can’t search the available wireless networking after refreshing, please contact the computer supplier or after-sale department after going through the following points:...
-
Page 9: Web Gui Interface Setting
DG-WA1102NPLV2 User Manual Log in the AP: Open your web browser, type in 192.168.1.200 in the address bar, enter admin in white blank bar, then login. Fig 8 Log in : WEB GUI interface Setting: 1) Status After login, fig 9 Device Status will be shown: This page, will show the outdoor AP’s default operation mode, channel, connection status, CPU... - Page 10 DG-WA1102NPLV2 User Manual In this Outdoor AP, the default operation mode is AP mode. Then in 2.4G Wireless Setting, GUI configuration page will be as shown below: User can configure the SSID, password, band width, channel here, then Apply to finish.
- Page 11 DG-WA1102NPLV2 User Manual Fig 12 AP Position setting 2) Wizard Configuration: Click Wizard in Status page, will pop up following page to configure the operation mode: There are four operation modes of this ceiling wireless AP, and there are explanations for each operation mode for better application.
- Page 12 DG-WA1102NPLV2 User Manual I Gateway Mode: Click Gateway mode, the following pictures will pop up: Please choose the right WAN setting mode, then click next to continue. Fig 14. WAN setting in Gateway Mode Fig 15 Wireless Setting in Gateway Mode...
- Page 13 DG-WA1102NPLV2 User Manual picture: Fig 16 Complete the setting in Gateway Mode When you return to Status, the page as shown below appears: Fig 17 Status in Gateway Mode II Wi-Fi Repeater mode Click Wi-Fi Repeater operation mode in Wizard, then following page will pop up, and...
- Page 14 DG-WA1102NPLV2 User Manual Fig 18 Repeater Mode Click Return button, will go back to Status, shows Repeater mode data, shows fail or success, and user can configure this data in this page if required.
- Page 15 DG-WA1102NPLV2 User Manual 19 Status in Repeater Mode Please note, in Wi-Fi Repeater operation mode, the wireless is disabled by default, will not broadcast the wireless SSID. If you need to enable SSID, please do based on following picture: Please note, when you click on wireless relay settings, will go back to fig 18 wi-fi repeater setting directly.
- Page 16 DG-WA1102NPLV2 User Manual Fig 20 WISP Mode Configure the right WAN setting in WISP operation mode, then next to restart the outdoor AP 21 WAN setting in WISP mode Then complete and back to status, will show the connection fail or success, then can configure...
- Page 17 DG-WA1102NPLV2 User Manual the data based on request: Fig 22 Status in WISP mode Remark: When you click on WAN setting the screen will pop up as shown in the following picture: Fig 23 WAN setting in WISP mode IV AP Operation mode: Set the wireless data, AP Location info as required, then click next to continue and enter into LAN setting.
- Page 18 DG-WA1102NPLV2 User Manual Fig 24 Wireless setting in AP Mode In this part, there is Wireless Analyzer, to analyse the Wireless AP/ Router’s channel to avoid wi-fi interface. Picture as shown in fig 25. Fig 25 Wi-Fi Channel analysis...
- Page 19 DG-WA1102NPLV2 User Manual Fig 26 LAN Setting in AP Mode Fig 27 Status in AP Mode V WDS operation mode In WDS setting two AP’s work in WDS operation mode: A. Connect with WDS1 device and enter into the GUI page, Click Wizard and Choose SUPER WDS mode, input the SSID, Band Width, Channel as you like, then click next to finish.
- Page 20 DG-WA1102NPLV2 User Manual B. Enter into WDS 2 device’s GUI page, click Wizard, then choose super WDS function. In this page, click scan AP to choose WDS 1’s SSID. In this page, can set WDS 2 device’s SSID as Wireless 2.4G-Test-01.
- Page 21 DG-WA1102NPLV2 User Manual D. Back to WDS 1, Wizard---Super WDS---Scan AP---Choose WDS 2 device’s SSID, then WDS1 will work with WDS2. E. If WDS 3 device should work with WDS1, scan WDS1, then make WDS3 to work with WDS1. And in WDS1, can scan WDS3’s SSID also if needed.
- Page 22 DG-WA1102NPLV2 User Manual Fig 28 Device Status Device Status: In this page, mainly to check the ceiling AP’s status in firmware version, Wireless status, LAN status: Fig 29 2.4G Wireless Status...
- Page 23 DG-WA1102NPLV2 User Manual Fig 30 LAN Status 2.4G Wireless Setting: This part, will show the Wireless Basic Setting, Virtual AP, Access control and Advanced Setting: Fig 31 Basic Setting in 2.4G Wireless Virtual AP: There are 3 virtual AP in this outdoor AP, if needed virtual SSID, then users can configure it as...
- Page 24 DG-WA1102NPLV2 User Manual Fig 32 Virtual AP Access Control: Mainly shows MAC allow or deny: Fig 33 MAC Access Control Advanced Settings: This page, will show the regional, RF Power, Max user access.
- Page 25 DG-WA1102NPLV2 User Manual Fig 34 Advanced Setting Network setting: This page, mainly shows the LAN setting and VLAN as follows: Fig 35 Network Setting...
- Page 26 DG-WA1102NPLV2 User Manual Fig 36 Tag VLAN Setting Management: This part, shows the system time, Logs, upgrade firmware, system, user info. And we show System time, how to upgrade firmware and system page to users: Fig 37 System Time...
- Page 27 DG-WA1102NPLV2 User Manual Fig 38 Signal Tracking Fig 39 LOG info Fig 40 Firmware Upgrade...
-
Page 28: Share Internet And Obtain Ip Address Automatically
DG-WA1102NPLV2 User Manual Fig 41 System info Fig 42 User Info Share Internet and Obtain IP address automaticall y Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as shown in following picture. The computer will obtain the IP address from router... -
Page 29: Trouble Shooting
DG-WA1102NPLV2 User Manual Trouble Shooting: The Failure phenomenon and solution Failure phenomenon Solution Please make sure the PoE module connection is right. SYS Indicator off POE Port connects with AP, LAN port connects with computer Please check the IP address of computer and Wireless AP to see whether they are in same networking segment.
