Digisol DG-WA1102NPLV2 User Manual

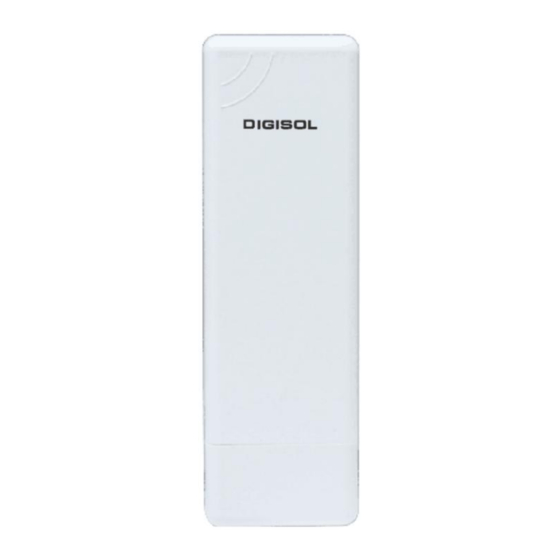

Digisol 2.4ghz outdoor access point
Hide thumbs Also See for DG-WA1102NPLV2:

Advertisement

Quick Links

Download this manual

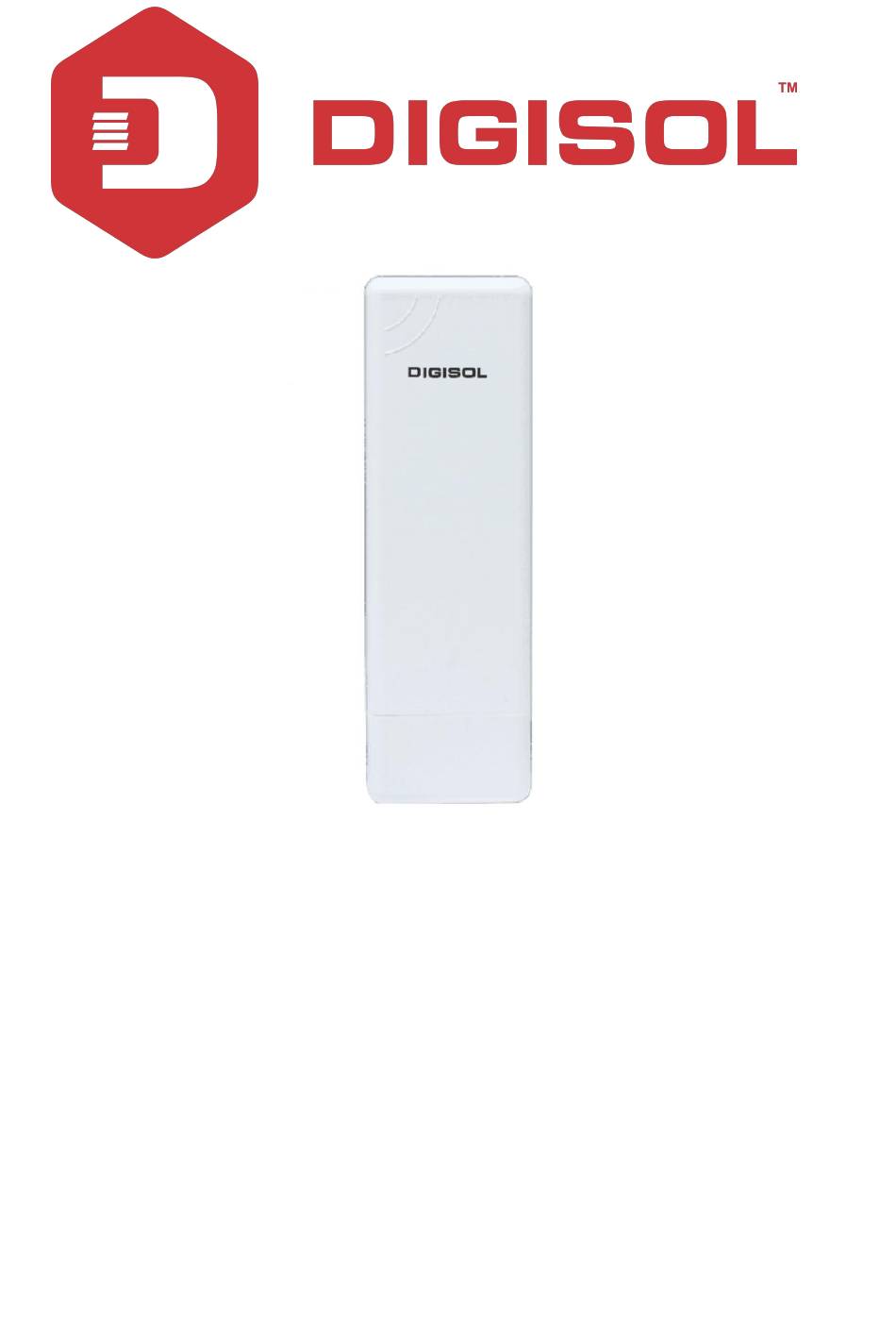

DG-WA1102NPLV2
DIGISOL 2.4GHZ OUTDOOR ACCESS POINT
User Manual
V1.1
2018-12-18
As our products undergo continuous development the specifications are subject to change without prior notice

Advertisement

loading
Need help?

Need help?

Do you have a question about the DG-WA1102NPLV2 and is the answer not in the manual?

Questions and answers

Related Manuals for Digisol DG-WA1102NPLV2

Summary of Contents for Digisol DG-WA1102NPLV2

  • Page 1 DG-WA1102NPLV2 DIGISOL 2.4GHZ OUTDOOR ACCESS POINT User Manual V1.1 2018-12-18 As our products undergo continuous development the specifications are subject to change without prior notice...
  • Page 2 DG-WA1102NPLV2 User Manual COPYRIGHT Copyright 2017 by DIGISOL SYSTEMS LTD. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

  • Page 3: Table Of Contents

    DG-WA1102NPLV2 User Manual INDEX PRODUCT INFORMATION........................4 ........................4 ARDWARE INSTALLATION ....................5 OW TO CONNECT AND OWER ON THE AP S ........................... 5 TART AND OG IN WEB GUI :........................8 INTERFACE ETTING ..............27 HARE NTERNET AND BTAIN ADDRESS AUTOMATICALLY TROUBLESHOOTING:..........................28...

  • Page 4: Product Information

    DG-WA1102NPLV2 User Manual Product Information Thank you for purchasing this Outdoor AP DG-WA1102NPLV2. This manual will instruct you how to configure and manage this AP, enable you to use it in a perfect status. After installing this AP, you will be able to enjoy surfing freely.

  • Page 5: Ap Start And Login

    DG-WA1102NPLV2 User Manual  Please refer Fig. 2 for PoE Power and AP configuration DG-WA1102NPL DG-WA1102NPLV2 Fig. 2 Diagram of PoE Power and AP configuration Please make sure our AP is working with included Power adapter or PoE adapter, and under right connection way, or the device will be damaged...
  • Page 6 If you want to connect our AP wirelessly after IP address configuration, please right click on Wireless networking Connection, then View Available Wireless Networks. The default SSID DG-WA1102NPLV2. Click Refresh network list, double click the correct SSID and input the password, if you have, then connect. Please refer to Fig. 6 and Fig. 7...
  • Page 7 DG-WA1102NPLV2 User Manual Fig. 6 AP Wireless Connection Fig. 7 AP Wireless Connection If your computer has built in 802.11b/g/n wireless adapter, but can’t search the available wireless networking after refreshing, please contact the computer supplier or after-sale department after going through the following points:...

  • Page 8: Web Gui Interface Setting

    DG-WA1102NPLV2 User Manual Log in the AP: Open your web browser, type in 192.168.1.200 in the address bar, enter admin in password field to login. Fig. 8 Login : WEB GUI interface Setting: 1) Home After login, as shown in Fig. 9 Home page will be displayed. This page, will show the outdoor AP’s Default Operation Mode, AP’s Flow (Up Stream/ Down Stream), Device Information, Device...
  • Page 9 DG-WA1102NPLV2 User Manual In this Outdoor AP, the default operation mode is AP mode. In Device Information you can find the CPU and Memory Usage of the AP as shown in Fig. 10 Fig. 10 Device Information In Device Description you can add the APs description by clicking on Click Settings as shown Fig. 11 Fig.
  • Page 10 DG-WA1102NPLV2 User Manual In Flow (2G Wifi) bps you can find the AP’s Upstream and Downstream as shown in Fig. 14 Fig. 14 Flow (2G Wifi) bps 2) Wizard Configuration: Click on Wizard where you can choose among the five operation modes, explanation for each operation mode is provided for better application.
  • Page 11 DG-WA1102NPLV2 User Manual Fig 16. WAN setting in Gateway Mode In next step you can disable/enable WiFi status, set the SSID, channel, encryption and set the timing. Fig. 17 Wireless Setting in Gateway Mode When you click on Next the wizard for the Gateway mode is completed and the AP will reboot to...
  • Page 12 DG-WA1102NPLV2 User Manual Fig. 18 Complete the setting in Gateway Mode When you return to Home, the page as shown below appears: Fig. 19 Status in Gateway Mode Wi-Fi Repeater mode Click Wi-Fi Repeater operation mode in Wizard, then following page will pop up, click on scan and choose the right SSID to bridge, then click next to setup the SSID this AP will broadcast.
  • Page 13 DG-WA1102NPLV2 User Manual Fig. 20 Repeater Mode Fig. 21 Wireless Setting in Repeater Mode...
  • Page 14 DG-WA1102NPLV2 User Manual Fig. 22 Complete the setting in Repeater Mode Once the configuration is completed it will redirect back to login page. You can see the status in Home page as shown below. Fig. 23 Status in Repeater Mode III.
  • Page 15 DG-WA1102NPLV2 User Manual Fig. 24 WISP setting Fig. 25 WAN setting in WISP Mode Fig. 26 Wireless Setting in WISP Mode...
  • Page 16 DG-WA1102NPLV2 User Manual Scan the WISP AP you want to connect to as shown in Fig. 24, then click on next where you can configure the WAN setting in WISP operation mode, in next tab set the SSID this AP will broadcast.
  • Page 17 DG-WA1102NPLV2 User Manual Fig. 29 LAN setting in AP Mode Fig. 30 Wireless setting in AP Mode Fig. 31 Complete the setting in AP Mode...
  • Page 18 DG-WA1102NPLV2 User Manual Set the LAN IP as shown in Fig. 29 and click on next where you can set the SSID this AP will broadcast. Once the configuration is completed it will redirect back to login page. You can see the status in Home page as shown below.
  • Page 19 DG-WA1102NPLV2 User Manual Access 2 AP’s GUI page, click Wizard and choose Super WDS function. In this page, click scan AP to choose 1 AP’s SSID i.e Wireless2.4G_WDS . In this page, user can set 2 AP’s SSID as Wireless 2.4G-Test.
  • Page 20 DG-WA1102NPLV2 User Manual Fig. 36 LAN Setting in Super WDS Mode Fig. 37 Complete the setting in Super WDS Mode E. Go back to 1 AP, Wizard--- Super WDS--- Scan AP--- Choose 2 AP’s SSID, then 1 AP will work with 2 F.
  • Page 21 DG-WA1102NPLV2 User Manual E. If you want to connect 3 AP with 1 AP, scan 1 AP’s SSID in 3 AP and vice versa to make 3 work with 1 3) WiFi This part, will show the 2G Wifi Setting, WDS, MAC ACL, WiFi Timer off and Advanced Setting: Fig.
  • Page 22 DG-WA1102NPLV2 User Manual Fig. 41 MAC ACL WiFi Timer Off: User can enable WiFi Timer Off to turn off the SSID in the specified time. Fig. 42 WiFi Timer Off Advanced: This page will allow the user to change the Country Region, 2G Mode, Coverage...
  • Page 23 DG-WA1102NPLV2 User Manual Fig. 43 Advanced Network: This page mainly shows the LAN setting of the AP and user can also enable DHCP Server as shown in Fig. 44: Fig. 44 LAN Settings Static DHCP: User can assign Static IP to the client devices, click on add where you can scan...
  • Page 24 DG-WA1102NPLV2 User Manual Fig. 45 Static DHCP Cloud Server Setting: By enabling Cloud Server user can link the AP to the Cloud Account. Fig. 46 Cloud Server Setting 5) Manage: This part shows how to configure, reboot, modify password, upgrade, set time and Logs.
  • Page 25 DG-WA1102NPLV2 User Manual Fig. 47 Configure Reboot: User can schedule a reboot of the AP as shown in Fig. 48 Fig. 48 Reboot Modify Password: Here you can modify the password. Default password is admin. Fig. 49 Modify Password...
  • Page 26 DG-WA1102NPLV2 User Manual Upgrade: Select choose file and navigate to proper path where the firmware is downloaded and select upgrade. Fig. 50 Upgrade Time: Here you can check the system time, enable NTP Server and select the Time Zone. Fig. 51 Time...

  • Page 27: Share Internet And Obtain Ip Address Automatically

    DG-WA1102NPLV2 User Manual Fig. 52 Log Share Internet and Obtain IP address automatically Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as shown in following picture. The computer will obtain the IP address from router or...

  • Page 28: Troubleshooting

    DG-WA1102NPLV2 User Manual Troubleshooting: The Failure phenomenon and solution Failure phenomenon Solution Please make sure the PoE module connection is right. POE SYS Indicator off Port connects with AP, LAN port connects with computer. Please check the IP address of computer and Wireless AP to see whether they are in same networking segment.
  • Page 29 DG-WA1102NPLV2 User Manual...
