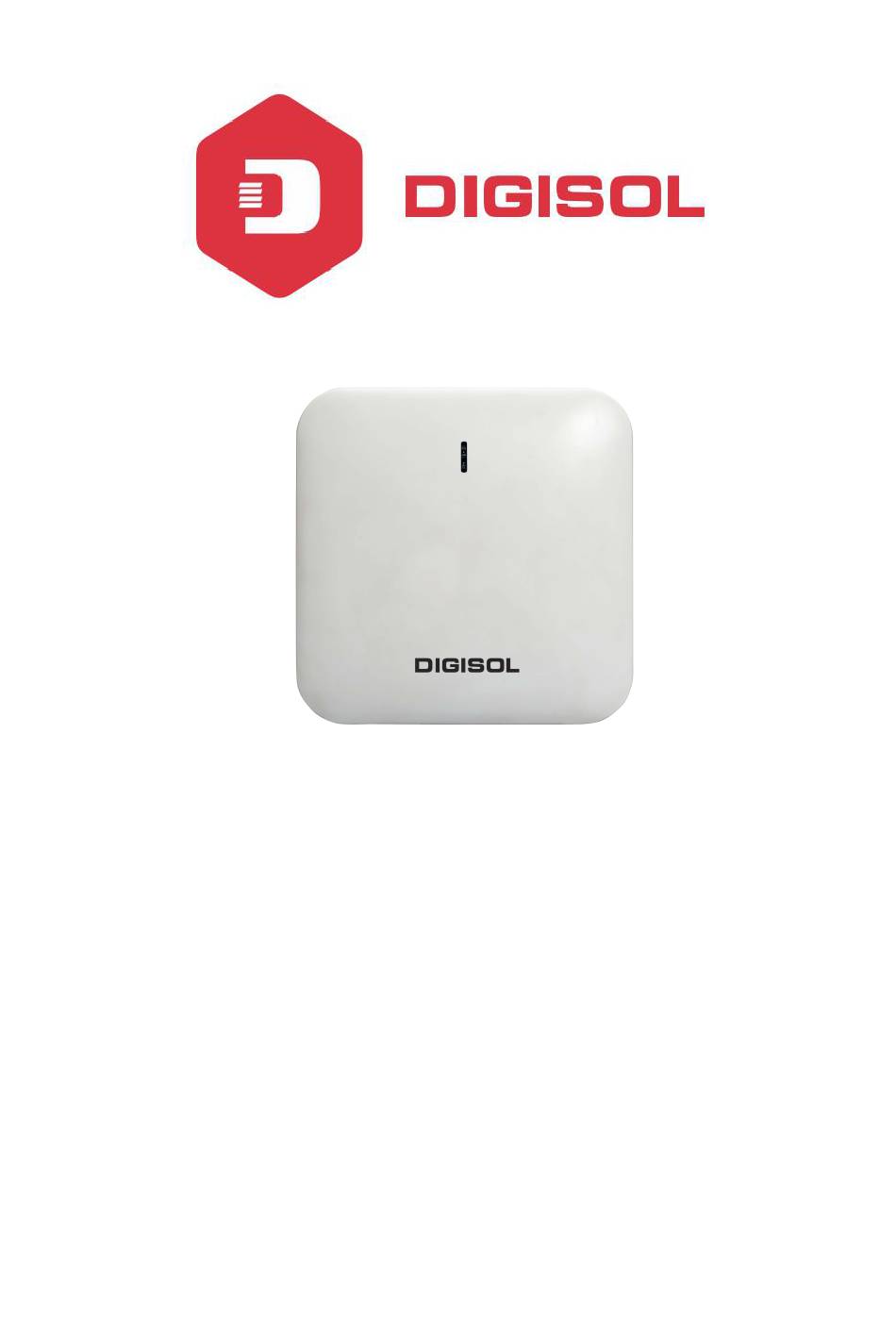

DG-WM6305SIE2
User Manual
V1.0
2018-03-13
As our products undergo continuous development the specifications are subject to change without prior notice.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-WM6305SIE2 and is the answer not in the manual?

Questions and answers

Related Manuals for Digisol DG-WM6305SIE2

Summary of Contents for Digisol DG-WM6305SIE2

  • Page 1 DG-WM6305SIE2 User Manual V1.0 2018-03-13 As our products undergo continuous development the specifications are subject to change without prior notice.
  • Page 2 Please check with your local distributors for latest information. No part of this document can be copied or reproduced in any form without written consent from the company. TRADEMARK DIGISOL is a trademark of Digisol Systems Ltd. All other trademarks are the property of the respective manufacturers.

  • Page 3: Table Of Contents

    DG-WM6305SIE2 User Manual INDEX 1. Hardware and Operation mode Instruction……………………………………….4 1.1. LED Indicator………………………………………………………………...4 1.2. AP Router Interface…………………………………………………………4 1.3. Power Supply………………………………………………………………..5 1.3.1. PoE Adapter Power Supply…………………………………………..5 1.3.2. PoE Switch Power Supply…………………………………………….5 1.4. AP Router Installation……………………………………………………….7 2. Connect Wireless AP Router with PC………………………………………………8 3.

  • Page 4: Hardware And Operation Mode Instruction

    Before using this access point, please check if there is anything missing in the package, and contact your dealer of purchase to claim for missing items:  DG-WM6305SIE2 Ceiling Mount AP Router  DC 12V Power Adapter  Patch Cord ...

  • Page 5: Power Supply

    DG-WM6305SIE2 User Manual 1.3. Power Supply: 1.3.1. PoE Adapter Power Supply: The connection diagram showed as P1, internet cable connect to PoE adapter’s LAN Port, Ceiling AP Router’s WAN port connect to PoE adapter’s PoE Port, then PC will access into ceiling AP through cable or wireless. The wireless AP Router support 48V IEEE 802.3af standard PoE, the PoE adapter should be 48V PoE standard.
  • Page 6 DG-WM6305SIE2 User Manual...

  • Page 7: Ap Router Installation

    DG-WM6305SIE2 User Manual 1.4. AP Router Installation: The Ceiling Wireless AP Router, will be installed under ceiling based on following steps:...

  • Page 8: Connect Wireless Ap Router With Pc

    Connect the PC with wireless AP by Wireless SSID and LAN cable: The diagram of wireless connection showed as follow: Pls note: the default SSID is DG-WM6305SIE2-2.4G/5.8G, SSID’s are open with no password. P7: Connecting the PC to the AP with wireless...

  • Page 9: Login

    DG-WM6305SIE2 User Manual 3. Login 1. Connect the Ceiling AP Router with computer by wired or wireless 2. The default IP address of this wireless AP Router is 192.168.1.200. Configure the PC’s local connection. IP address as 192.168.1.X (X is number from 2 to 254), subnet...
  • Page 10 DG-WM6305SIE2 User Manual 3. Input 192.168.1.200 into browser, login page will appear, the default login password: admin. P11: Login Page 4. After login the following page appear which shows Device Status. This page will show the device default operation mode, Channel, Connection status, CPU usage, Wireless settings, LAN Setting, Wireless AP’s Location, Hardware/Firmware version.

  • Page 11: Web Gui Interface Setting

    DG-WM6305SIE2 User Manual 4. WEB GUI interface Setting 4.1. Status After login, the Device Status and home page will be showed P13: Device Status This page, show the device default operation mode, channel, end user QTY, connection status, CPU usage status, Wireless, LAN and AP location info.
  • Page 12 DG-WM6305SIE2 User Manual P14: 2.4G Wireless Setting Then in 5G Wireless Setting, GUI configuration page shown as below: User can configure the SSID, Password, Band width, Channel then Apply to finish. P15: 5G Wireless Setting...
  • Page 13 DG-WM6305SIE2 User Manual As shown below user can set LAN Setting to configure the DHCP or Static IP address. P16: LAN Setting AP location setting: can mark where the AP set up, and AP name. P17: AP Location Setting...

  • Page 14: Wizard Configuration

    DG-WM6305SIE2 User Manual 4.2. Wizard Configuration Wizard: It instruct users to configure wireless AP Router’s operation mode based on needs, there are four operation mode including Gateway, Repeater, WISP, Wireless AP. Please confirm the operation mode first before starting the configuration.
  • Page 15 DG-WM6305SIE2 User Manual P20: Wireless Setting in Gateway Mode Please note: to make the device work in some clear channel, user can click wireless analyzer at first. Check Less AP in the channel, and then select your channel accordingly, then Wireless performance will be more stable. Picture shown as below: P21: 2.4G Wireless Analyzer...

  • Page 16: Wifi Repeater Mode

    DG-WM6305SIE2 User Manual P22: Settings Complete in Gateway Mode When return to Status page, will show Wireless router’s SSID, Internet connection, LAN connection status shown as below. P23: Status in Gateway Mode 4.2.2. WiFi Repeater mode 1. Login the Web management page, click “Wizard” then “WiFi Repeater”...
  • Page 17 DG-WM6305SIE2 User Manual P24: Repeater Mode Click next to configure the Wireless Setting as follows, then click next to finish. P25: Wireless Setting in Repeater Mode Click Return button, will back to Status, show Repeater mode data, will show fail or success, and user can configure this data in this page if required.
  • Page 18 DG-WM6305SIE2 User Manual P26: Status in Repeater Mode In wifi repeater operation mode, the default is SSID disable. If you want to enable SSID, then click Wireless Setting. Pls note, when click wireless relay setting, following page will pop up, you can make changes from here easily.

  • Page 19: Wisp Operation Mode

    DG-WM6305SIE2 User Manual 4.2.3. WISP Operation mode Click WISP operation mode in Wizard, then will pop up the configure page, please set the WISP operation mode based on the steps shown in picture: P28: WISP Mode Select the appropriate wireless AP and configure the correct WAN setting in WISP operation mode, then next to complete.
  • Page 20 DG-WM6305SIE2 User Manual Configure the Wireless Data as shown below P30: Wireless Setting in WISP Mode Then complete and back to status, will show the connection fail or success, then can configure the data based on request: P31: Status in WISP Mode...

  • Page 21: Ap Operation Mode

    DG-WM6305SIE2 User Manual 4.2.4. AP Operation mode Set the wireless data, AP Location info as required, then click next to continue and enter into LAN setting. After LAN setting, complete the AP mode configuration and back to Status: P32: Wireless Setting in AP Mode P33: LAN Setting in AP Mode Please Note: The equipment will restart automatically for the changes to take effect.

  • Page 22: Advanced Setting

    DG-WM6305SIE2 User Manual P34: Status in AP Mode 4.3. Advanced Setting In advanced setting you can get wireless AP Router’s device status, Wireless setting, Network setting and AP management configuration. Let’s click Advanced Setting in status page, will show Return home, Setup Wizard which we showed before.

  • Page 23: Wireless Setting

    DG-WM6305SIE2 User Manual P36: 2.4G Wireless Status P37: 5G Wireless Status In LAN Status, we can check device IP address, Subnet Mask, LAN MAC address and other info showed in following picture. P38: LAN Status 4.3.2. Wireless Setting Wireless setting, mainly to configure the wireless SSID, password, encryption, channel, Multi SSID, tag VLAN &...
  • Page 24 DG-WM6305SIE2 User Manual 2.4G Wireless Setting: In this part, will show the 2.4G Basic Setting, Virtual AP, Access control and Advanced Setting: P39: Basic Settings in 2.4G Wireless Setting 5G Wireless Setting: In this part, will show the 5G Basic Setting, Virtual AP, Access...

  • Page 25: Virtual Ap

    DG-WM6305SIE2 User Manual P41: 2.4G Wireless Analyzer 4.3.3. Virtual AP There are 3 virtual AP in 2.4G and in 5G wireless, for use of multi SSID, then users can configure it as shown in following picture. P42: 2.4G Virtual AP...

  • Page 26: Access Control

    DG-WM6305SIE2 User Manual P43: 5G Virtual AP 4.3.4. Access Control Allow or deny the users access into this device based on MAC address. P44: 2.4G Access Control Settings P45: 5G Access Control Settings...

  • Page 27: Advanced Settings

    DG-WM6305SIE2 User Manual 4.3.5. Advanced Settings This page, will show the regional info, mode, RF Power, Max user access,etc. P46: 2.4G Advanced Wireless Settings P47: 5G Advanced Wireless Settings 4.3.6. Network Setting In network, you can configure LAN setting and tag VLAN as follow:...

  • Page 28: Management

    DG-WM6305SIE2 User Manual P48: LAN Settings In VLAN part, you need an VLAN switch and make sure the multi SSID is enable, then input the VLAN ID to different SSID. P49: Tag VLAN Setting 4.3.7. Management It show’s the System time, Logs, Upgrade firmware, System, User info.
  • Page 29 DG-WM6305SIE2 User Manual Upgrade Fimrware:- Browse the fimrware file and click on upgrade. Wait till the upgrade is successfull. The device will reboot automatically and successfull firmware upgrade. P51: Firmware Upgrade System:- You can save the config or restore the previously saved config or reset the device to its default config.

  • Page 30: Share Internet And Obtain Ip Address Automatically

    DG-WM6305SIE2 User Manual 5. Share Internet and Obtain IP address automatically Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. The computer will obtain the IP address from router or base station to get Internet.

  • Page 31: Troubleshooting

    DG-WM6305SIE2 User Manual Troubleshooting The Failure phenomenon and solution. If the problems are not listed, please contact the local service or call the Toll Free service. We are willing to offer the service. Failure phenomenon Solution Pls make sure the PoE module connection is right. POE Port...
  • Page 32 DG-WM6305SIE2 User Manual Press the “Reset” button more than 15 seconds after How to Reset Wireless AP power on. The device will restore factory default after it Router restarts. This product comes with three Years warranty. For further details about warranty policy and product registration, please visit support section of www.digisol.com...
  • Page 33 DG-WM6305SIE2 User Manual...
