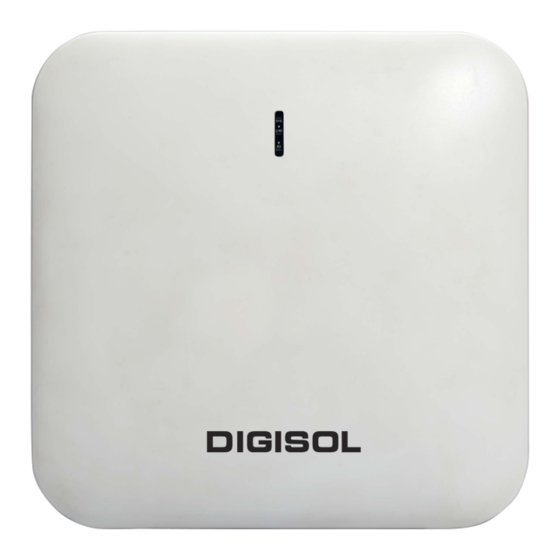

Digisol DG-WM6305SIE2 User Manual
  1. Manuals
  2. Brands
  3. Digisol Manuals
  4. Wireless Access Point
  5. DG-WM6305SIE2
  6. User manual

Digisol DG-WM6305SIE2 User Manual

Hide thumbs Also See for DG-WM6305SIE2:
Table of Contents

Advertisement

Quick Links

Download this manual

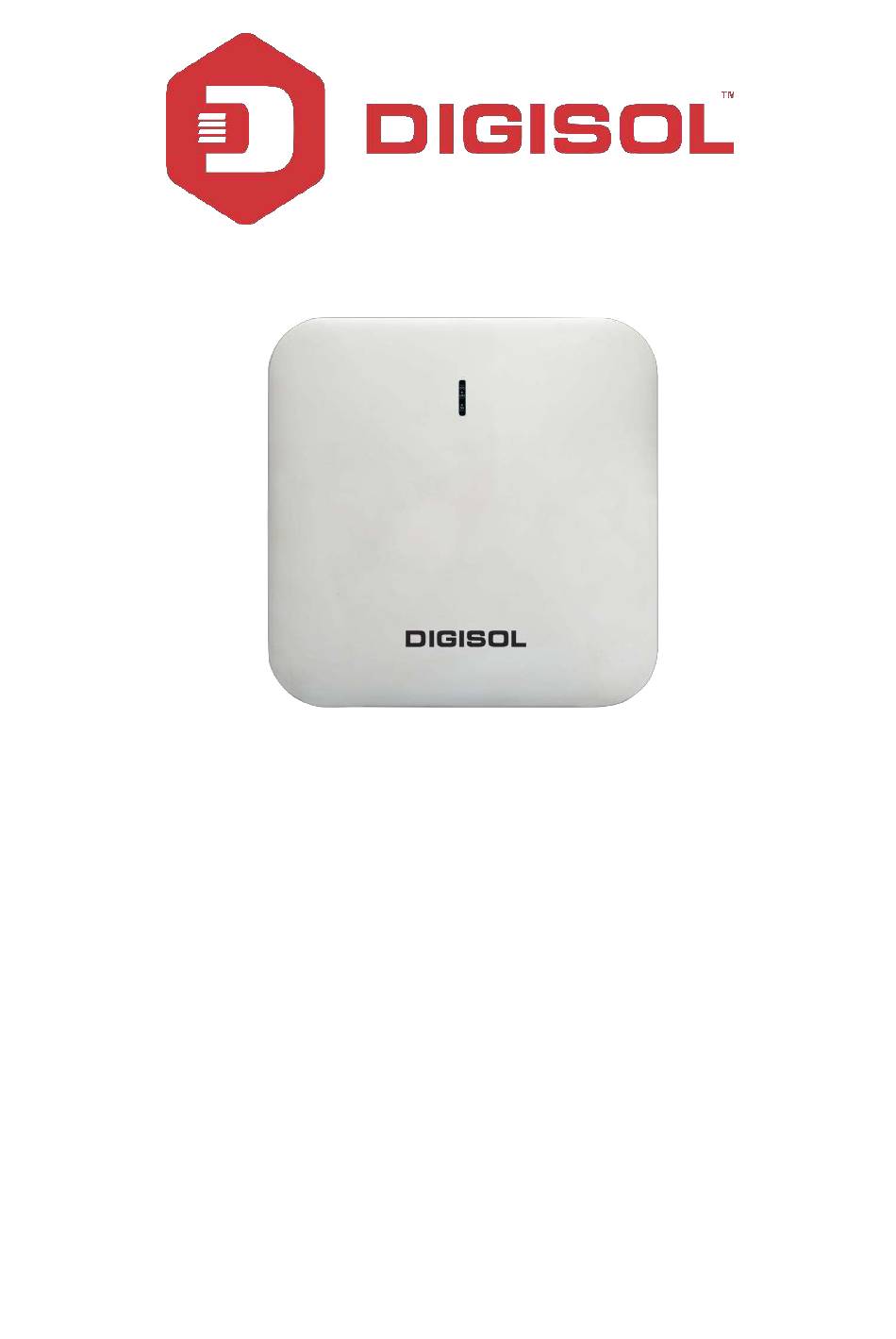

DG-WM6305SIE2
User Manual
V1.0
2019-01-17
As our products undergo continuous development the specifications are subject to change without prior notice.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-WM6305SIE2 and is the answer not in the manual?

Questions and answers

Related Manuals for Digisol DG-WM6305SIE2

Summary of Contents for Digisol DG-WM6305SIE2

  • Page 1 DG-WM6305SIE2 User Manual V1.0 2019-01-17 As our products undergo continuous development the specifications are subject to change without prior notice.
  • Page 2 Please check with your local distributors for latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademark DIGISOL is a trademark of Digisol Systems Ltd. All other trademarks are the property of the respective manufacturers.

  • Page 3: Table Of Contents

    DG-WM6305SIE2 User Manual INDEX 1. Hardware and Operation Mode Instruction……………..……………………..………………………………4 1.1. LED indicator:…………………………………………..………………………………………………………..…….4 1.2. AP Interface:………………………………………………………..………………………………………………..…4 1.3. Power Supply:……………………………………………………………..……………………………………………5 1.3.1. PoE Adapter Power Supply:……………………………………..…………………...………………...5 1.3.2. PoE Switch Power Supply…………………………........………..………..5 1.4. AP installation:......................…..6 2. Connect Wireless AP with PC:…………………………………………………..…..………………………………………7 3. Login………………………………………………………………………..………………………………………………………….8 4.

  • Page 4: Hardware And Operation Mode Instruction

    Before using this access point, please check if there is anything missing in the package, and contact your dealer of purchase to claim for missing items:  DG-WM6305SIE2 Ceiling Mount Access Point  DC 12V Power Adapter  Patch Cord ...

  • Page 5: Power Supply

    DG-WM6305SIE2 User Manual 1.3. Power Supply 1.3.1 PoE Adapter Power Supply: The connection diagram shown as P1, internet cable connect to PoE adapter’s LAN Port, Ceiling AP’s WAN port connect to PoE adapter’s PoE Port, then PC will access into ceiling AP through cable or wireless.

  • Page 6: Ap Installation

    DG-WM6305SIE2 User Manual 1.4. AP Installation For the Ceiling Wireless AP, will be installed under ceiling based on following steps:...

  • Page 7: Connect Wireless Ap With Pc

    You can connect the PC with wireless AP by Wireless SSID and LAN cable: The diagram of wireless connection showed as follow: Pls note: the default SSID is DG-WM6305SIE2, SSID’s password is blank P3. Connect the PC to AP using WiFi as shown above...

  • Page 8: Login

    DG-WM6305SIE2 User Manual 3. Login 1. Connect the Ceiling AP with computer by wired or wireless 2. The default IP address of this wireless AP is 192.168.1.200. Configure the PC’s local connection IP address as 192.168.1.X (X is number from 2 to 254), subnet mask is 255.255.255.0.
  • Page 9 DG-WM6305SIE2 User Manual 3. Input 192.168.1.200 into browser, login page will appear, the default login password: admin. P7: Login Page...

  • Page 10: Web Gui Interface Setting

    DG-WM6305SIE2 User Manual 4. WEB GUI interface Setting 4.1. Home After login, the Device Status and home page will be showed P8: Home This page will show the device default operation mode, Device Information, Device Description, LAN Information, 2G WiFi, Flow (2G WiFi) bps and Hardware/Firmware version.
  • Page 11 DG-WM6305SIE2 User Manual P10: Device Description In LAN Information you can find the IP Mode, IP and MAC Address of the AP as shown in P11 P11: Lan Information In WiFi Information you can find the Status, SSID, Channel, Encryption and MAC Address of AP as...

  • Page 12: Wizard Configuration

    DG-WM6305SIE2 User Manual 4.2. Wizard Configuration Wizard: It instruct users to configure wireless AP’s operation mode based on needs, there are four operation mode including Gateway, Repeater, WISP, Wireless AP. Please confirm the operation mode first before starting the configuration.
  • Page 13 DG-WM6305SIE2 User Manual P16: 2G Wireless setting in Gateway mode P17: 5G Wireless setting in Gateway mode Clicking next will complete the Gateway mode setting and show following picture: Please Note: The equipment will restart for the changes to take effect.

  • Page 14: Wifi Repeater Mode

    DG-WM6305SIE2 User Manual When return to Home page, will show Wireless router’s SSID, Internet connection, LAN connection status shown as below. P19: Status in Gateway mode 4.2.2. WiFi Repeater mode 1. Login the Web management page, click “Wizard” then “WiFi Repeater”...
  • Page 15 DG-WM6305SIE2 User Manual P21: 2G Wireless Setting in Repeater mode P22: 5G Wireless Setting in Repeater mode Clicking next will complete the Gateway mode setting and show following picture: Please Note: The equipment will restart for the changes to take effect.

  • Page 16: Wisp Operation Mode

    DG-WM6305SIE2 User Manual P23: Status in Repeater mode 4.2.3. WISP Operation mode Click WISP operation mode in Wizard, then will pop up the configure page, please set the WISP operation mode based on the steps shown in picture: P24: WISP Mode Select the appropriate wireless AP and configure the correct WAN setting in WISP operation mode, then next to complete.
  • Page 17 DG-WM6305SIE2 User Manual P25: WAN setting in WISP mode In next step configure the SSID then complete and back to home, will show the connection fail or success, where you can configure the data based on request: Please Note: The equipment will restart for the changes to take effect.

  • Page 18: Ap Operation Mode

    DG-WM6305SIE2 User Manual P27: 5G Wireless setting in WISP mode P28: Status in WISP mode 4.2.4. AP Operation mode Configure the LAN setting and in the next tab set the wireless SSID, follow the screenshot below:...
  • Page 19 DG-WM6305SIE2 User Manual P29: LAN setting in AP mode P30: 2G Wireless setting in AP mode P31: 5G Wireless setting in AP mode...

  • Page 20: Wifi

    DG-WM6305SIE2 User Manual Clicking next will complete the AP mode setting and show following picture: Please Note: The equipment will restart for the changes to take effect. P32: Status in AP mode 4.3. WiFi Setting In WiFi setting you can set the 2.4G and 5G SSID, MAC ACL, Wifi Timer off and Advanced settings.
  • Page 21 DG-WM6305SIE2 User Manual P34: 5G WiFi setting WiFi Status: On mean SSID on, Off mean SSID off. WiFi Analyzer: Mainly to analyze the AP’s signal strength and channel, to make user more easy to choose the channel with less wireless AP and to avoid the Wireless Interference.
  • Page 22 DG-WM6305SIE2 User Manual P36: Virtual AP Setting MAC ACL: Allow or deny the users access into this device based on MAC address. P37: MAC ACL Setting WiFi Timer Off: Enable WiFi Timer Off to turn off the SSID in the specified time.

  • Page 23: Network

    DG-WM6305SIE2 User Manual Advanced This page, will show the regional info, mode, RF Power, Max user access, etc. P39: Advanced Setting 4.4. Network In network, you can configure LAN setting,tag VLAN and setup Cloud Server as follow: LAN Settings mainly includes Static IP, Get IP from AC and Get IP from Gateway.

  • Page 24: Manage

    DG-WM6305SIE2 User Manual P41: VLAN Setting In Cloud Server Setting you need to enter the Cloud Server URL and Binding code so that the AP can be managed over the Cloud. P42: Cloud Server Settings 4.5. Manage It shows the Configure part, Reboot part, Modify password, System time, Logs, Upgrade firmware.
  • Page 25 DG-WM6305SIE2 User Manual P43: Configure Reboot: Can reboot/restart the AP on a schedule. P44: Reboot Modify Password: Can modify the password. Default password is admin. P45: Modify Password...
  • Page 26 DG-WM6305SIE2 User Manual Upgrade: Browse the firmware file and click on upgrade. Wait till the upgrade is successful. The device will reboot automatically after successful firmware upgrade. P46: Firmware Upgrade Time: Here you can check the system time, enable NTP Server and select the Time Zone.

  • Page 27: Share Internet And Obtain Ip Address Automatically

    DG-WM6305SIE2 User Manual 5. Share Internet and Obtain IP address automatically Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. The computer will obtain the IP address from router or base station to get Internet.

  • Page 28: Troubleshooting

    DG-WM6305SIE2 User Manual Troubleshooting The Failure phenomenon and solution. If the problems are not listed, please contact the local service or call the Toll Free service. We are willing to offer the service. Failure phenomenon Solution Pls make sure the PoE module connection is right. POE...
  • Page 29 DG-WM6305SIE2 User Manual...
