Digisol DG-WA7910P User Manual

Outdoor access point
Hide thumbs Also See for DG-WA7910P:
Table of Contents

Advertisement

Quick Links

Download this manual

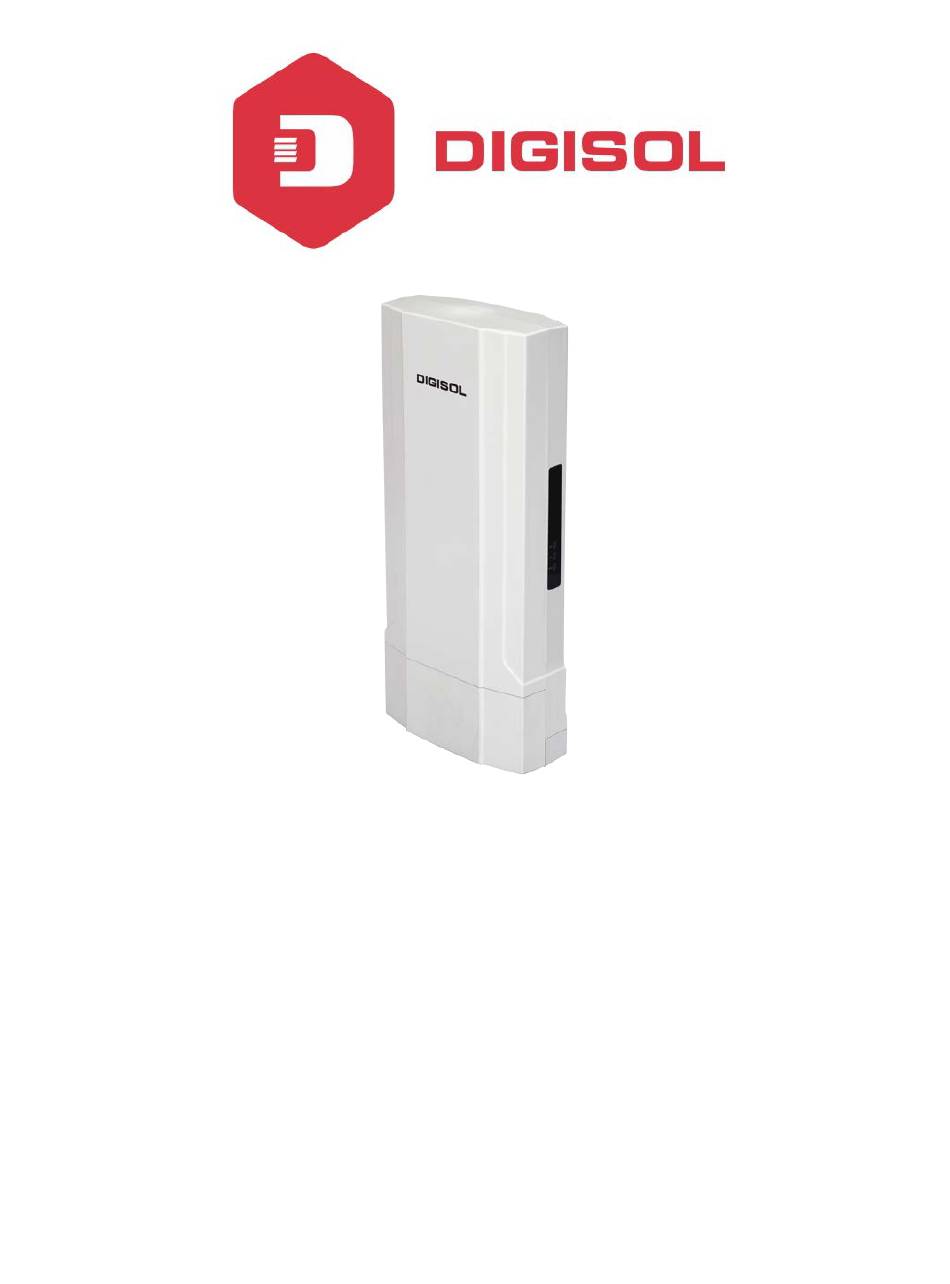

DG-WA7910P
User Manual
V1.0
2018-08-01
As our products undergo continuous development the specifications are subject to change without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-WA7910P and is the answer not in the manual?

Questions and answers

Related Manuals for Digisol DG-WA7910P

Summary of Contents for Digisol DG-WA7910P

  • Page 1 DG-WA7910P User Manual V1.0 2018-08-01 As our products undergo continuous development the specifications are subject to change without prior notice...
  • Page 2 Please check with your local distributors for latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademark DIGISOL is a trademark of Digisol Systems Ltd. All other trademarks are the property of the respective manufacturers.

  • Page 3: Table Of Contents

    DG-WA7910P User Manual INDEX 1. Hardware and Operation Mode Instruction……………..…………………..………………………………4 LED Interface…………….……………………………………………………………………………………………… 1.1. 1.2. AP Interface:………………………………………..…………………………….……………………………..…4 1.3. Power Supply:………………………………………………………..………………………….…………………4 1.3.1. PoE Adapter Power Supply:……………………………………..………………...………………...4 1.3.2. PoE Switch Power Supply…………………………........………...………..5 2. Connect Wireless AP with PC:……………….………………………………………..…..…………………………………….…7 3. Login………………………………………………………………………..………………………………………….………….8 4. WEB GUI interface Setting:……………………..…………………………………………………………………………10 4.1.

  • Page 4: Hardware And Operation Mode Instruction

    Package Contents Before using this access point, please check if there is anything missing in the package, and contact your dealer of purchase to claim for missing items:  DG-WA7910P Outdoor Access Point  DC 12V Power Adapter  Patch Cord ...

  • Page 5: Ap Interface

    DG-WA7910P User Manual 1.2. AP Interface Reset Button, it make AP revert to default settings after pressing it for 15 seconds WAN Port, connect with ADSL modem or Internet mainly. It will be LAN port under Wireless AP and WiFi Repeater operation mode...

  • Page 6: Poe Switch Power Supply

    DG-WA7910P User Manual 1.3.2. PoE Switch Power Supply The connection diagram shown as P2, Internet cable from PoE Switch to AP’s WAN Port, then PC access into AP via wired/wireless. Pls note the wireless AP support 48V IEEE802.3at PoE, the PoE switch should comply with 48V IEEE802.3at PoE standard.
  • Page 7 DG-WA7910P User Manual...

  • Page 8: Connect Wireless Ap With Pc

    Connect the PC with wireless AP by Wireless SSID or LAN cable: The diagram of wireless connection showed as follow: Pls note: the default SSID is DG-WA7910P-2.4G/5.8G, SSID’s are open with no password. P6. Connecting the PC to the AP with wireless...

  • Page 9: Login

    DG-WA7910P User Manual 3. Login 1. Connect the Outdoor AP with computer by wired or wireless 2. The default IP address of this wireless AP is 192.168.1.200. Configure the PC’s local connection. IP address as 192.168.1.X (X is number from 2 to 254), subnet mask is...
  • Page 10 DG-WA7910P User Manual 3. Input 192.168.1.200 into browser, login page will appear, the default login password: admin. P10: Login Page 4. After login the following page appears which shows Device Status. This page will show the device default operation mode, Channel, Connection status, CPU usage, Wireless settings, LAN Setting, Wireless AP’s Location, Hardware/Firmware version.

  • Page 11: Web Gui Interface Setting

    DG-WA7910P User Manual 4. WEB GUI interface Setting 4.1. Status After login, the Device Status and home page will be showed P12: Device Status This page, show the device default operation mode, channel, end user QTY, connection status, CPU usage status, Wireless, LAN and AP location info.
  • Page 12 DG-WA7910P User Manual P13: 2.4G Wireless Setting Then in 5G Wireless Setting, GUI configuration page shown as below: User can configure the SSID, Password, Band width, Channel then Apply to finish. P14: 5G Wireless Setting...
  • Page 13 DG-WA7910P User Manual As shown below user can set LAN Setting to configure the DHCP or Static IP address. P15: LAN Setting AP location setting: can mark where the AP set up, and AP name. P16: AP Location Setting...

  • Page 14: Wizard Configuration

    DG-WA7910P User Manual 4.2. Wizard Configuration Wizard: It instruct users to configure wireless AP operation mode based on needs, there are four operation mode including Gateway, Repeater, WISP, Wireless AP. Please confirm the operation mode first before starting the configuration.
  • Page 15 DG-WA7910P User Manual P18: WAN Setting in Gateway Mode P19: Wireless Setting in Gateway Mode Please note: to make the device work in some clear channel, user can click wireless analyzer at first. Check Less AP in the channel, and then select your channel accordingly, then Wireless...
  • Page 16 DG-WA7910P User Manual P20: 2.4G Wireless Analyzer P21: 5.8G Wireless Analyzer Clicking next will complete the Gateway mode setting and show following picture:...
  • Page 17 DG-WA7910P User Manual Please Note: The equipment will restart automatically for the changes to take effect. P22: Settings Complete in Gateway Mode When return to Status page, will show Wireless router’s SSID, Internet connection, LAN connection status shown as below.

  • Page 18: Wifi Repeater Mode

    DG-WA7910P User Manual 4.2.2. WiFi Repeater mode 1. Login the Web management page, click “Wizard” then “WiFi Repeater” 2. Scan AP and select the AP’s SSID want to bridge then input the AP’s key, click next to complete. P24: Repeater Mode Click next to configure the Wireless Setting as follows, then click next to finish.
  • Page 19 DG-WA7910P User Manual Click Return button, will back to Status, show Repeater mode data, will show fail or success, and user can configure this data in this page if required. Please Note: The equipment will restart automatically for the changes to take effect.

  • Page 20: Wisp Operation Mode

    DG-WA7910P User Manual P27: Wireless Relay Settings 4.2.3. WISP Operation mode Click WISP operation mode in Wizard, then will pop up the configure page, please set the WISP operation mode based on the steps shown in picture: P28: WISP Mode...
  • Page 21 DG-WA7910P User Manual Select the appropriate wireless AP and configure the correct WAN setting in WISP operation mode, then next to complete. Please Note: The equipment will restart automatically for the changes to take effect. P29: WAN Setting in WISP Mode...

  • Page 22: Ap Operation Mode

    DG-WA7910P User Manual Then complete and back to status, will show the connection fail or success, then can configure the data based on request: P31: Status in WISP Mode 4.2.4. AP Operation mode Set the wireless data, AP Location info as required, then click next to continue and enter into LAN setting.
  • Page 23 DG-WA7910P User Manual P32: Wireless Setting in AP Mode P33: LAN Setting in AP Mode Please Note: The equipment will restart automatically for the changes to take effect.

  • Page 24: Advanced Setting

    DG-WA7910P User Manual P34: Status in AP Mode 4.3. Advanced Setting In advanced setting you can get wireless AP device status, Wireless setting, Network setting and AP management configuration. Let’s click Advanced Setting in status page, will show Return home, Setup Wizard which we showed before.
  • Page 25 DG-WA7910P User Manual P35: Device Status Wireless status show wireless AP’s SSID, MAC address for WiFi, Channel, Encryption, Client List info. P36: 2.4G Wireless Status P37: 5G Wireless Status...

  • Page 26: Wireless Setting

    DG-WA7910P User Manual In LAN Status, we can check device IP address, Subnet Mask, LAN MAC address and other info showed in following picture. P38: LAN Status 4.3.2. Wireless Setting Wireless setting, mainly to configure the wireless SSID, password, encryption, channel, Multi SSID, tag VLAN &...
  • Page 27 DG-WA7910P User Manual 5G Wireless Setting: In this part, will show the 5G Basic Setting, Virtual AP, Access control and Advanced Setting: P40: Basic Settings in 5G Wireless Setting Wireless Status: On mean SSID on, Off mean SSID off. 2.4G Wireless Analyzer: Mainly to analyze the AP’s signal strength and channel, to make user...

  • Page 28: Virtual Ap

    DG-WA7910P User Manual P41: 2.4G Wireless Analyzer 4.3.3. Virtual AP There are 3 virtual AP in 2.4G and in 5G wireless, for use of multi SSID, then users can configure it as shown in following picture. P42: 2.4G Virtual AP...

  • Page 29: Access Control

    DG-WA7910P User Manual P43: 5G Virtual AP 4.3.4. Access Control Allow or deny the users access into this device based on MAC address. P44: 2.4G Access Control Settings...

  • Page 30: Advanced Settings

    DG-WA7910P User Manual P45: 5G Access Control Settings 4.3.5. Advanced Settings This page, will show the regional info, mode, RF Power, Max user access, etc. P46: 2.4G Advanced Wireless Settings...

  • Page 31: Network Setting

    DG-WA7910P User Manual P47: 5G Advanced Wireless Settings 4.3.6. Network Setting In network, you can configure LAN setting and tag VLAN as follow: In LAN Settings, mainly including Static IP and DHCP. P48: LAN Settings In VLAN part, you need an VLAN switch and make sure the multi SSID is enable, then input the...

  • Page 32: Management

    DG-WA7910P User Manual P49: Tag VLAN Setting 4.3.7. Management It shows the System time, Logs, Upgrade firmware, System, User info. System Time:- Can configure the device timing P50: System Time Upgrade Firmware:- Browse the firmware file and click on upgrade. Wait till the upgrade is...
  • Page 33 DG-WA7910P User Manual P51: Firmware Upgrade System:- You can save the config or restore the previously saved config or reset the device to its default config. P52: System Settings...

  • Page 34: Share Internet And Obtain Ip Address Automatically

    DG-WA7910P User Manual 5. Share Internet and Obtain IP address automatically Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. The computer will obtain the IP address from router or base station to get Internet.

  • Page 35: Troubleshooting

    DG-WA7910P User Manual Troubleshooting The Failure phenomenon and solution If the problems are not listed, please contact the local service or call the Toll Free service. We are willing to offer the service. Failure phenomenon Solution Pls make sure the PoE module connection is right. POE Port...
  • Page 36 DG-WA7910P User Manual more than -75dBm； Scan it several times more； If using 5Ghz to scan, please make sure there are 5G Can’t scan the wireless AP signal existed. Reset the device, scan it again after device restarts；； The connection of Wireless Pls Check the computer’s IP address and DNS setting.
  • Page 37 DG-WA7910P User Manual...
