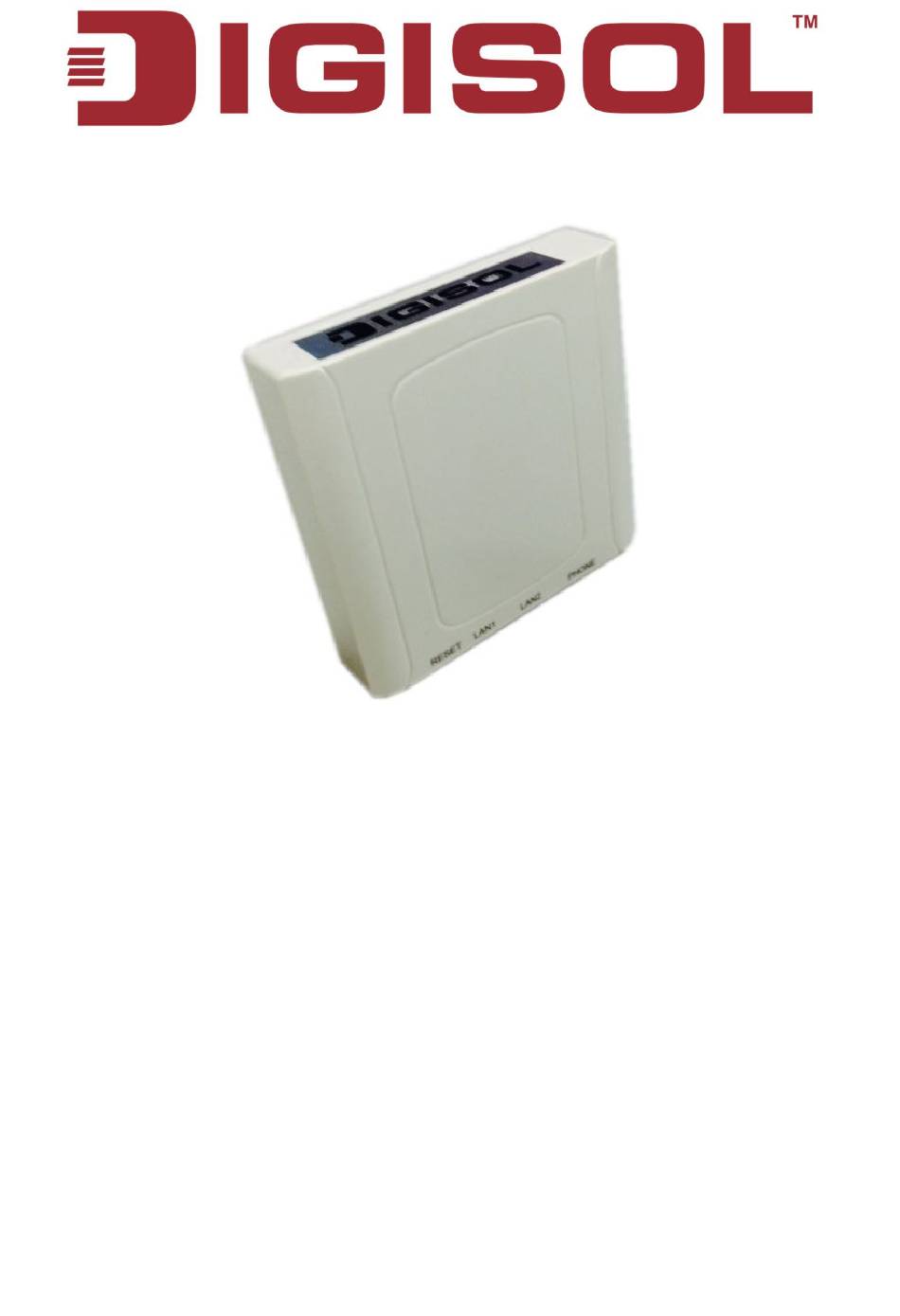

- Page 1 DG-WM2001WI User Manual DG-WM2001WI 802.11N INDOOR CONTROLLER 2.4GHZ MANAGED INWALL User Manual V1.0 2015-07-27 As our products undergo continuous development the specifications are subject to change without prior notice...
- Page 2 Trademarks: DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks are the property of the respective manufacturers. Safety This equipment is designed with the utmost care for the safety of those who install and use it.
-
Page 3: Table Of Contents
DG-WM2001WI User Manual Content Chapter 1 Introduction................6 1.1 Overview......................6 1.2 Get Familiar with your new indoor Access Point........6 1.3 Installation Precautions................7 1.4 Installation Environment Requirements..........7 1.5 Equipment Accessories................7 1.6 Login Web Network Management............8 1.7 Quit Web Network Management.............. 9 1.8 Introduction to Page Layout of Web Network Management.... - Page 4 DG-WM2001WI User Manual 3.3 Client Associations...................21 Chapter 4 Advance Configuration........... 23 4.1 Ethernet Settings..................23 4.2 Wireless Settings..................25 4.3 RF Parameters....................26 4.4 Virtual AP..................... 28 4.4.1 None Security Configuration................29 4.4.2 Static WEP Security Configuration...............30 4.4.3 WPA Personal Security Configuration............31 4.4.4 WPA Enterprise Security Configuration............32 4.4.5 WDS........................
- Page 5 DG-WM2001WI User Manual 6.3.3 Test the Configuration Results..............45 6.4 WPA2-Enterprise Wireless Access............46 6.4.1 Networking Requirements................46 6.4.2 Configuration Steps..................46 6.4.3 Test the Configuration Results..............48...
-
Page 6: Chapter 1 Introduction
DG-WM2001WI User Manual Chapter 1 Introduction 1.1 Overview For the network administrator to configure and maintain to devices, this device provides WEB network management function. The administrator can use WEB interface to manage and maintain the network devices visually. The running environment of Web network management is shown in fig 1-1. -
Page 7: Installation Precautions
DG-WM2001WI User Manual 1.3 Installation Precautions Only allow the professionals installing and disassembling the device and its annex. Before the installation and configuration, please read the related security introduction carefully. Adopt the appropriate security measures to avoid the personal injury and ... -
Page 8: Login Web Network Management
DG-WM2001WI User Manual Package Contents Before you start using this AC, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: DG-WM2001WI (1 No.) screws ( 2 Nos.) ... -
Page 9: Quit Web Network Management
DG-WM2001WI User Manual Fig 1-7 Web network management login page 1.7 Quit Web Network Management Click the “log off” button on the upper right corner on the Web network management page to quit. 1.8 Introduction to Page Layout of Web Network... -
Page 10: Introduction To Web Network Management Function
DG-WM2001WI User Manual Fig 1-8 Initial page of Web network management Navigation bar: Organize the Web network management menu by using the navigation tree. User can choose the function menu in the navigation bar and the result will be shown in the configuration area. - Page 11 DG-WM2001WI User Manual Menu/label Function explanation Shows the AP address (IP address and MAC address), version (firmware version) and device information. The Basic settings administrator password, serial ports configuration and system settings can be configured. Network interface Shows the real-time wired and wireless configuration of...
-
Page 12: Introduction To Common Controls Of Web Page
DG-WM2001WI User Manual Firmware Configure the firmware upgradation of AP. upgrading 1.10 Introduction to Common Controls of Web Page 1. <Update> button Click < Update> button to submit the input information. 2. <Refresh> button Click <Refresh> button to refresh the information of the current page. -
Page 13: Chapter 2 Basic Configuration
DG-WM2001WI User Manual Chapter 2 Basic Configuration Shows the basic configuration of the device and it includes the following content: Review description of this access point, Device information; Administrator password; Serial settings and System settings. -
Page 14: Detailed Explanation Of Settings
DG-WM2001WI User Manual 2.1 Detailed Explanation of settings 2.1.1 Description of this Access Point Field Description IP Address Shows the IP address of the current device. IPv6 Address Shows the IPv6 address of the current device. IPv6 Autoconfigured Global Addresses Shows the IPv6 auto configured global address of the current device. -
Page 15: Administrator Password
DG-WM2001WI User Manual 2.1.3 Administrator Password Field Description Current password Input the current administrator password. New password Input the new password. Confirm new password Input the new password again and it must be same as the above new password. 2.1.4 Serial Settings... -
Page 16: Chapter 3 Current Status
DG-WM2001WI User Manual Chapter 3 Current Status The current status includes network information, statistic of transmitting and receiving packets and the client association. 3.1 Network Information 3.1.1 Wired Settings Field Description MAC address Shows the MAC address of the current device. - Page 17 DG-WM2001WI User Manual IP address Shows the IP address of the current device. Subnet mask Shows the subnet mask of the current device. IPv6 Address Shows the IPv6 address of the current device. Static IPv6 Address Prefix Length Shows the prefix length of static IPv6 address.
-
Page 18: Wireless Settings
DG-WM2001WI User Manual 3.1.2 Wireless Settings Field Description MAC address Shows the MAC address information of RF1 or 2. Mode Shows the wireless mode information of RF1 or 2. Channel Shows the channel information of RF1 or 2. Click the “Edit” link in the wired and wireless configuration to link to the wired and wireless... -
Page 19: Statistic For Transmitting And Receiving Ip Traffic
DG-WM2001WI User Manual 3.2 Statistic for Transmitting and Receiving IP Traffic 3.2.1 Device Information Status Shows all the physical ports and the status of virtual AP. Field Description Interface The name of Ethernet interface or VAP interface. Status Mark the interface is up or down. -
Page 20: Transmit/Receive Packets
DG-WM2001WI User Manual MAC address MAC address of the specific interface. Every interface of AP has the unparalleled MAC address. Each interface of each RF of the two RF has a different MAC address. VLAN ID VLAN ID You can use VLAN to create multiple internal and customer networks on the same AP. -
Page 21: Client Associations
DG-WM2001WI User Manual table) bytes that the AP dropped. Error statistics Shows the total error number of AP transmitting and receiving data. 3.3 Client Associations Client association showing: Field Description Network The SSID of the client associated network. Station The MAC address of the associated client. - Page 22 DG-WM2001WI User Manual Dropped packets in transmission. Dropped bytes...
-
Page 23: Chapter 4 Advance Configuration
DG-WM2001WI User Manual Chapter 4 Advance Configuration The “Advance configuration” includes Ethernet settings, wireless settings, RF parameters, virtual AP, WDS and AP modes. 4.1 Ethernet Settings Field Description Host name The host name of AP. MAC Address The MAC address of the Ethernet interface of AP. - Page 24 DG-WM2001WI User Manual tagged VLAN number. Connection Type Configure the IP address obtaining of AP. Static IP Address Configure the static IP address. If the IP obtaining is DHCP, this property cannot be used. Subnet Mask Configure the subnet mask. If the IP obtaining is DHCP, this property cannot be used.
-
Page 25: Wireless Settings
DG-WM2001WI User Manual 4.2 Wireless Settings Field Description Country Choose the country of AP. Radio interface The RF device can be enabled or disabled here. MAC address The MAC address of the RF interface. Mode The Physical Layer standard the radio uses. -
Page 26: Rf Parameters
DG-WM2001WI User Manual 4.3 RF Parameters... - Page 27 DG-WM2001WI User Manual Field Description Radio Choose the configured RF. Status Enable/disable the RF. Mode The PHY standard used by RF. Channel Choose the channel. Channel bandwidth The channel bandwidth of 802.11n mode. Primary channel The mode of the primary channel (only the 802.11n...
-
Page 28: Virtual Ap
DG-WM2001WI User Manual 4.4 Virtual AP... -
Page 29: None Security Configuration
DG-WM2001WI User Manual Field Description Radio Choose the configured RF. Show the ID number of the virtual AP. Enabled Configure the status of the virtual AP. VLAN ID Configure the VLAN that the client associated with the virtual AP belongs to. -
Page 30: Static Wep Security Configuration
DG-WM2001WI User Manual 4.4.2 Static WEP Security Configuration Choose the security configuration as static WEP and show the detailed configuration information of static WEP security configuration. The direct key should be input in the client to pass the authentication or the decryption packet. -
Page 31: Wpa Personal Security Configuration
DG-WM2001WI User Manual 4.4.3 WPA Personal Security Configuration Choose the security configuration as WPA Personal and show the detailed configuration information of WPA Personal security configuration. The direct key should be input in the client to pass the authentication. Field... -
Page 32: Wpa Enterprise Security Configuration
DG-WM2001WI User Manual 4.4.4 WPA Enterprise Security Configuration Choose the security configuration as WPA Enterprise and show the detailed configuration information of WPA Enterprise security configuration. The direct user name and password existed in radius server should be input in client to pass the authentication. -
Page 33: Wds
DG-WM2001WI User Manual 4.4.5 WDS... -
Page 34: Ap Modes
DG-WM2001WI User Manual 4.5 AP Modes The AP modes can be switched on this page. Configure the address of Access Controller and the password of AP authentication under Mode Fat. Field Description Management AP administrative mode Configure the AP modes. -
Page 35: Chapter 5 System Maintenance
DG-WM2001WI User Manual Chapter 5 System Maintenance The system maintenance includes configuration management and firmware upgradation. 5.1 Configuration Management Click “reset” button to restore the configuration of AP to default. The default working mode of AP is fit AP mode. - Page 36 DG-WM2001WI User Manual file name is the input name. When the upload method was chosen as HTTP mode, click “browse” button to choose the configuration file (the format is *.xml) which needs to be uploaded. Confirm it and click “restore” button. The current configuration of AP will be restored to the configuration in the uploaded configuration file.
-
Page 37: Firmware Upgradation
DG-WM2001WI User Manual 5.2 Firmware Upgradation Platform Version of firmware Show the version of firmware of the current AP. Complete the firmware upgradation of AP by using HTTP through the following steps: 1. Choose the HTTP as the upgrading method. - Page 38 DG-WM2001WI User Manual the firmware version in the firmware management page (or the basic configuration label). If the upgradation was successful, the version after upgrading will be shown. Complete the firmware upgradation of AP by using TFTP through the following steps: 1.
-
Page 39: Chapter 6 Configuration Examples
DG-WM2001WI User Manual Chapter 6 Configuration Examples 6.1 Laws Wireless Access 6.1.1 Networking Requirements A department needs to achieve the mobile office through deploying AP for that the staffs can visit the internal network resources anytime and anywhere. The device... -
Page 40: Test The Configuration Results
DG-WM2001WI User Manual Choose “enable” for Radio Interface 1. Choose IEEE 802.11b/g/n for the wireless mode. Choose the default configuration for channel. Click “submit” button. 2. Enter into the virtual AP configuration page. Choose the virtual AP enabled box (the virtual AP 0 is enabled as default.) ... -
Page 41: Configuration Steps
DG-WM2001WI User Manual “WEP”. For meeting the high bandwidth requirements and the compatible 802.11g wireless network, adopt the 802.11n (2.4GHz) RF mode. Fig 1-14 WEP（Open-System） cipher wireless access 6.2.2 Configuration Steps 1. Login the AP configuration page and enter into the wireless configuration page. -
Page 42: Test The Configuration Results
DG-WM2001WI User Manual 2. Enter into the virtual AP configuration page. Choose the virtual AP enabled box (the virtual AP 0 is enabled as default.) Configure the VLAN ID according to the actual situation. Configure SSID as “WEP”. -
Page 43: Wpa2-Psk Wireless Access
DG-WM2001WI User Manual the AP successfully, user can access the wireless network. Enter into the client association page and the successful online clients can be viewed. 6.3 WPA2-PSK Wireless Access 6.3.1 Networking Requirements In a small office, the device administrator can complete the WPA2-PSK wireless access configuration through the web page. -
Page 44: Test The Configuration Results
DG-WM2001WI User Manual Use the default configuration for the channel. Click “submit” button. 2. Enter into the virtual AP configuration page. Choose the virtual AP enabled box (the virtual AP 0 is enabled as default.) Configure the VLAN ID according to the actual situation. -
Page 45: Wpa2-Enterprise Wireless Access
DG-WM2001WI User Manual 6.4 WPA2-Enterprise Wireless Access 6.4.1 Networking Requirements In an office building of a company, the staffs need to access the office environment through the wireless network; the other mobile devices that do not belong to the staffs cannot be accessed. - Page 46 DG-WM2001WI User Manual Use the default configuration for the channel. Click “submit” button. 2. Enter into the virtual AP configuration page. Choose the virtual AP enabled box (the virtual AP 0 is enabled as default.) Configure the VLAN ID according to the actual situation.
-
Page 47: Test The Configuration Results
DG-WM2001WI User Manual Use the default configuration for the unicast key refresh rate. Click “submit” button. 6.4.3 Test the Configuration Results Enable the wireless client and click the “modify the advanced configuration”; choose the wireless network configuration in the window. Choose to use the windows to configure my wireless network configuration and click “add”...
