DG-WA7910P
User Manual
V1.0
2019-01-14
As our products undergo continuous development the specifications are subject to change without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-WA7910P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digisol DG-WA7910P

Summary of Contents for Digisol DG-WA7910P

  • Page 1 DG-WA7910P User Manual V1.0 2019-01-14 As our products undergo continuous development the specifications are subject to change without prior notice...
  • Page 2 Please check with your local distributors for latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademark DIGISOL is a trademark of Digisol Systems Ltd. All other trademarks are the property of the respective manufacturers.

  • Page 3: Table Of Contents

    DG-WA7910P User Manual INDEX 1. Hardware and Operation Mode Instruction……………..…………………..……………………………..3 LED Interface…………….………………………………………………………………………………………………3 1.1. 1.2. AP Interface:………………………………………..…………………………….……………………………..…4 1.3. Power Supply:………………………………………………………..………………………….…………………4 1.3.1. PoE Adapter Power Supply:……………………………………..………………...………………...4 1.3.2. PoE Switch Power Supply…………………………........………...………..5 2. Connect Wireless AP with PC:……………….………………………………………..…..…………………………………….…7 3. Login………………………………………………………………………..………………………………………….…………..8 4. WEB GUI interface Setting:……………………..………………………………………………………………………...10 4.1.

  • Page 4: Hardware And Operation Mode Instruction

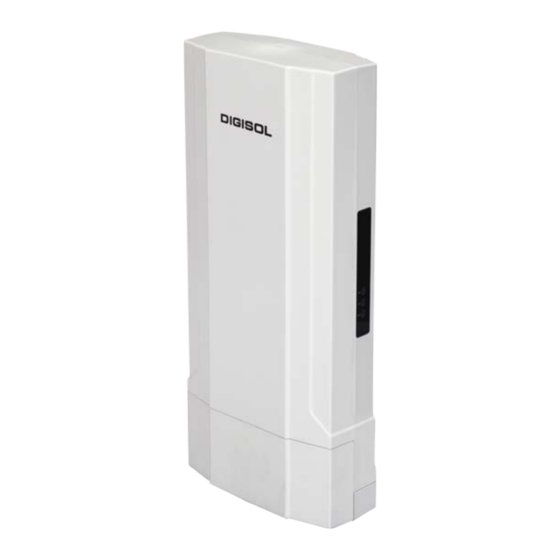

    Package Contents Before using this access point, please check if there is anything missing in the package, and contact your dealer of purchase to claim for missing items:  DG-WA7910P Outdoor Access Point  DC 12V Power Adapter  Patch Cord ...

  • Page 5: Ap Interface

    DG-WA7910P User Manual 1.2. AP Interface Reset Button, it make AP revert to default settings after pressing it for 15 seconds WAN Port, connect with ADSL modem or Internet mainly. It will be LAN port under Wireless AP and WiFi Repeater operation mode...

  • Page 6: Poe Switch Power Supply

    DG-WA7910P User Manual 1.3.2. PoE Switch Power Supply The connection diagram shown as P2, Internet cable from PoE Switch to AP’s WAN Port, then PC access into AP via wired/wireless. Pls note the wireless AP support 48V IEEE802.3at PoE, the PoE switch should comply with 48V IEEE802.3at PoE standard.
  • Page 7 DG-WA7910P User Manual...

  • Page 8: Connect Wireless Ap With Pc

    Connect the PC with wireless AP by Wireless SSID or LAN cable: The diagram of wireless connection showed as follow: Pls note: the default SSID is DG-WA7910P-2.4G/5.8G, SSID’s are open with no password. P6. Connecting the PC to the AP with wireless...

  • Page 9: Login

    DG-WA7910P User Manual 3. Login 1. Connect the Outdoor AP with computer by wired or wireless 2. The default IP address of this wireless AP is 192.168.1.200. Configure the PC’s local connection. IP address as 192.168.1.X (X is number from 2 to 254), subnet mask is...
  • Page 10 DG-WA7910P User Manual 3. Input 192.168.1.200 into browser, login page will appear, the default login password: admin. P10: Login Page...

  • Page 11: Web Gui Interface Setting

    DG-WA7910P User Manual 4. WEB GUI interface Setting 4.1. Home After login, the home page will be shown as below P11: Home This page will show the device default operation mode, Device Information, Device Description, LAN Information, 2G WiFi, Flow (2G WiFi) bps and Hardware/Firmware version.
  • Page 12 DG-WA7910P User Manual P13 Device Description In LAN Information you can find the IP Mode, IP and MAC Address of the AP as shown in P14 P14 Lan Information In WiFi Information you can find the Status, SSID, Channel, Encryption and MAC Address of AP...

  • Page 13: Wizard Configuration

    DG-WA7910P User Manual 4.2. Wizard Configuration Wizard: It instruct users to configure wireless AP operation mode based on needs, there are four operation mode including Gateway, Repeater, WISP, Wireless AP. Please confirm the operation mode first before starting the configuration.
  • Page 14 DG-WA7910P User Manual P19 2G Wireless Setting in Gateway Mode P20 5G Wireless Setting in Gateway Mode Clicking next will complete the Gateway mode setting and show following picture: Please Note: The equipment will restart automatically for the changes to take effect.

  • Page 15: Wifi Repeater Mode

    DG-WA7910P User Manual P21 Settings Complete in Gateway Mode When return to Home page, will show Wireless router’s SSID, Internet connection, LAN connection status shown as below. P22 Status in Gateway Mode 4.2.2. WiFi Repeater mode 1. Login the Web management page, click “Wizard” then “WiFi Repeater”...
  • Page 16 DG-WA7910P User Manual P23 Repeater Mode 3. Click next to configure the Wireless Setting as follows, then click next to finish. P24 2G Wireless Setting in Repeater Mode P25 5G Wireless Setting in Repeater Mode...

  • Page 17: Wisp Operation Mode

    DG-WA7910P User Manual 4. Click Return button, will back to Status, show Repeater mode data, will show fail or success, and user can configure this data in this page if required. Please Note: The equipment will restart for the changes to take effect.
  • Page 18 DG-WA7910P User Manual P28 WISP Mode Select the correct WAN setting and configure appropriate wireless SSID in WISP operation mode, then next to complete. P29 WAN Setting in WISP Mode Configure the Wireless Data as shown below P30 2G Wireless Setting in WISP Mode...
  • Page 19 DG-WA7910P User Manual P31 5G Wireless Setting in WISP Mode Please Note: The equipment will restart for the changes to take effect. Click on next to complete the wizard and back to Home, it will show connection fail or success,...

  • Page 20: Ap Operation Mode

    DG-WA7910P User Manual P33 Status in WISP Mode 4.2.4. AP Operation mode Set the wireless data, AP Location info as required, then click next to continue and enter into LAN setting. After LAN setting, complete the AP mode configuration and back to Status:...
  • Page 21 DG-WA7910P User Manual P35 2G Wireless Setting in AP Mode P36 5G Wireless Setting in AP Mode Please Note: The equipment will restart for the changes to take effect. P37 Settings Complete in AP Mode...

  • Page 22: Wifi Setting

    DG-WA7910P User Manual P38 Status in AP Mode 4.3. WiFi In WiFi setting you can set the 2.4G and 5G SSID, MAC ACL, Wifi Timer off and Advanced settings. Let’s see more in detail in the following pages: 2G Wifi In this part, will show the 2.4G Basic Setting and Virtual AP setting as shown below...
  • Page 23 DG-WA7910P User Manual 5G WiFi In this part, will show the 5G Basic Setting and Virtual AP Setting as shown below P40 5G WiFi setting WiFi Status: On mean SSID on, Off mean SSID off. WiFi Analyzer: Mainly to analyze the AP’s signal strength and channel, to make user more easy to choose the channel with less wireless AP and to avoid the Wireless Interference.
  • Page 24 DG-WA7910P User Manual P42 Virtual AP Setting MAC ACL: Allow or deny the users access into this device based on MAC address. P43 MAC ACL Setting WiFi Timer Off: Enable WiFi Timer Off to turn off the SSID in the specified time.

  • Page 25: Network Setting

    DG-WA7910P User Manual Advanced This page, will show the regional info, mode, RF Power, Max user access, etc. P45 Advanced 4.4. Network In network, you can configure LAN setting, tag VLAN and enable Cloud Server as follow: LAN Settings mainly includes Static IP, Get IP from AC and Get IP from Gateway.

  • Page 26: Manage

    DG-WA7910P User Manual P47 VLAN Setting In Cloud Server Setting you need to enter the Cloud Server URL and Binding code so that the AP can be managed over the Cloud. P48 Cloud Server Settings 4.5. Manage It shows the Configure part, Reboot part, Modify password, System time, Logs, Upgrade firmware.
  • Page 27 DG-WA7910P User Manual P49 Configure Reboot: Can reboot/restart the AP on a schedule. P50 Reboot Modify Password: Can modify the password. Default password is admin. P51 Modify Password...
  • Page 28 DG-WA7910P User Manual Upgrade :- Browse the firmware file and click on upgrade. Wait till the upgrade is successful. The device will reboot automatically after successful firmware upgrade. P52 Firmware Upgrade Time: Here you can check the system time, enable NTP Server and select the Time Zone.

  • Page 29: Share Internet And Obtain Ip Address Automatically

    DG-WA7910P User Manual 5. Share Internet and Obtain IP address automatically Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. The computer will obtain the IP address from router or base station to get Internet.

  • Page 30: Troubleshooting

    DG-WA7910P User Manual Troubleshooting The Failure phenomenon and solution If the problems are not listed, please contact the local service or call the Toll Free service. We are willing to offer the service. Failure phenomenon Solution Pls make sure the PoE module connection is right. POE Port...
  • Page 31 DG-WA7910P User Manual Scan it several times more； If using 5Ghz to scan, please make sure there are 5G Can’t scan the wireless AP signal existed. Reset the device, scan it again after device restarts; Pls Check the computer’s IP address and DNS setting. If it is The connection of Wireless dynamic, set the network card as automatically obtain.
