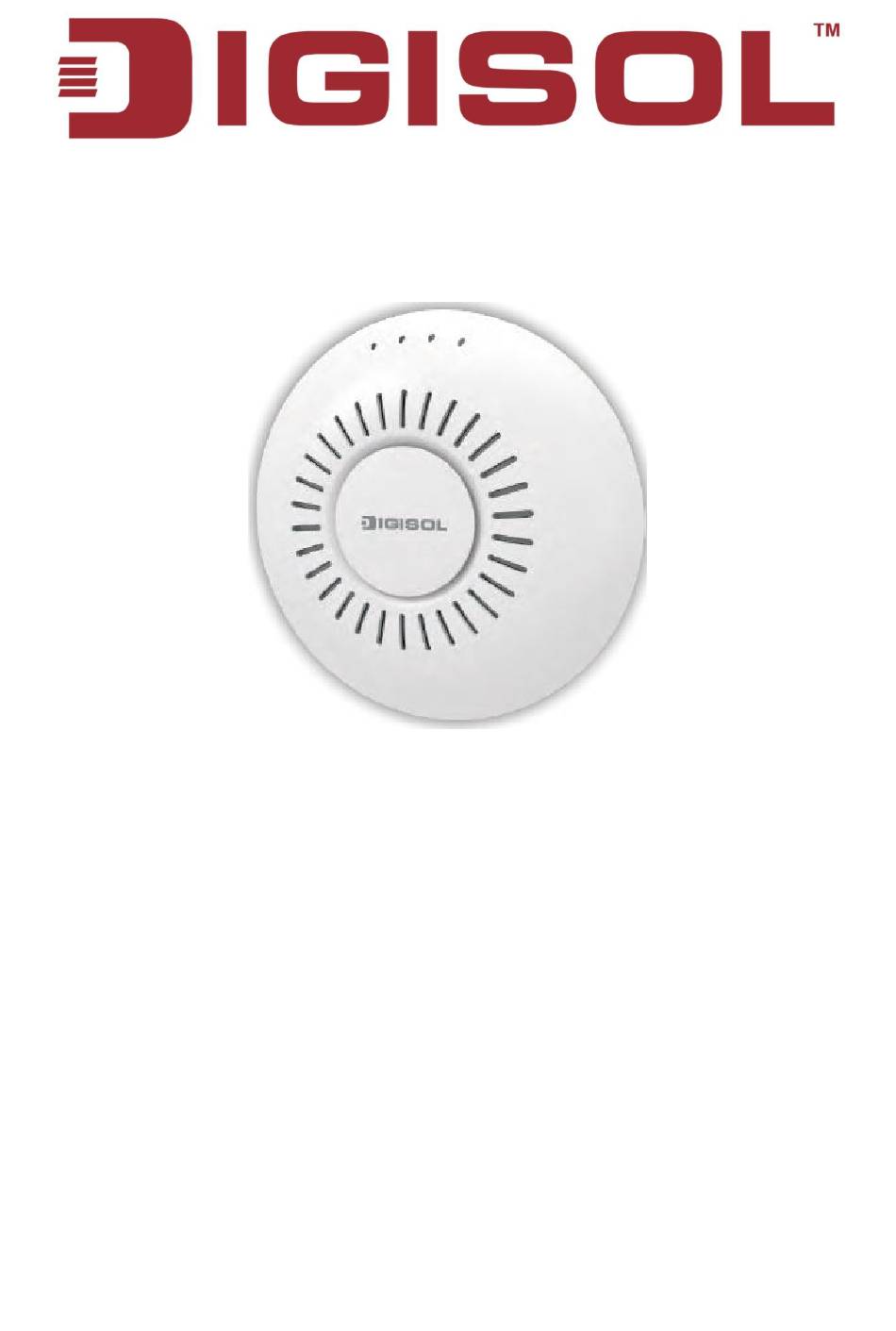

- Page 1 DG-WM2001SI User Manual DG-WM2001SI DIGISOL 802.11N 300MBPS CEILING AP, 1 X FE 802.3AF POE User Manual V1.0 2015-09-26 As our products undergo continuous development the speci f ications are subject to change without prior notice...
- Page 2 Trademarks: DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks are the property of the respective manufacturers. Safety This equipment is designed with the utmost care for the safety of those who install and use it.
-
Page 3: Table Of Contents
DG-WM2001SI User Manual Content Chapter 1 Introduction ............... 6 1.1 Overview ......................6 1.2 Get Familiar with your new indoor Access Point .......6 1.3 Installation Precautions ................7 1.4 Installation Environment Requirements ..........7 1.5 Equipment Accessories................7 1.6 Installation Tools ..................8 1.7 Login Web Network Management ............9 1.8 Quit Web Network Management ............ - Page 4 DG-WM2001SI User Manual 3.2.1 Device Information Status ..............20 3.2.2 Transmit/Receive Packets ..............22 3.3 Client Associations .................. 23 Chapter 4 Advance Configuration .......... 25 4.1 Ethernet Settings ..................25 4.2 Wireless Settings..................27 4.3 RF Parameters................... 28 4.4 Virtual AP ....................30 4.4.1 None Security Configuration ...............
- Page 5 DG-WM2001SI User Manual 6.3.1 Networking Requirements..............46 6.3.2 Configuration Steps................47 6.3.3 Test the Configuration Results ............48 6.4 WPA2-Enterprise Wireless Access ............48 6.4.1 Networking Requirements..............48 6.4.2 Configuration Steps................49 6.4.3 Test the Configuration Results ............51...
-
Page 6: Chapter 1 Introduction
DG-WM2001SI User Manual Chapter 1 Introduction 1.1 Overview For the network administrator to configure and maintain to devices, this device provides WEB network management function. The administrator can use WEB interface to manage and maintain the network devices visually. The running environment of Web network management is shown in fig 1-1. -
Page 7: Installation Precautions
DG-WM2001SI User Manual 1.3 Installation Precautions Only allow the professionals installing and disassembling the device and its annex. Before the installation and configuration, please read the related security introduction carefully. Adopt the appropriate security measures to avoid the personal injury and equipment damage. -
Page 8: Installation Tools
DG-WM2001SI User Manual Package Contents Before you start using this AC, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: DG-WM2001SI (1 No.) M3.5 Plastic stopper (4 Nos.) ... -
Page 9: Login Web Network Management
DG-WM2001SI User Manual 1.7 Login Web Network Management User can use the default information directly to login the web interface of the device. The default Web login information includes: User name: admin Password: IP address of the device: 192.168.1.10 The steps of web login: (1) Connect the device to PC. -
Page 10: Quit Web Network Management
DG-WM2001SI User Manual Fig 1-7 Web network management login page 1.8 Quit Web Network Management Click the “log off” button on the upper right corner on the Web network management page to quit. -
Page 11: Introduction To Page Layout Of Web Network Management
DG-WM2001SI User Manual 1.9 Introduction to Page Layout of Web Network Management Web network management page includes: navigation bar, configuration area and help area as shown in fig 1-8. Fig 1-8 Initial page of Web network management Navigation bar: Organize the Web network management menu by using the navigation tree. -
Page 12: Introduction To Web Network Management Function
DG-WM2001SI User Manual 1.10 Introduction Network Management Function The Web network management function explanation is given below in table 1-1: Table 1-10 Web network management function explanation Menu/label Function explanation Shows the AP address (IP address and MAC address), version (firmware version) and device information. The... -
Page 13: Introduction To Common Controls Of Web Page
DG-WM2001SI User Manual related configuration. Modes of AP Configure the modes and IP address of AP. Configuration Configure to restart AP and restore it to the factory management configuration. Import and export the files. System maintenance Firmware Configure the firmware upgradation of AP. - Page 14 DG-WM2001SI User Manual data of the browser first during login the device through web network management. Otherwise, the content of web network management may not be shown normally.
-
Page 15: Chapter 2 Basic Configuration
DG-WM2001SI User Manual Chapter 2 Basic Configuration Shows the basic configuration of the device and it includes the following content: Review description of this access point, Device information; Administrator password; Serial settings and System settings. -
Page 16: Detailed Explanation Of Settings
DG-WM2001SI User Manual 2.1 Detailed Explanation of settings 2.1.1 Description of this Access Point Field Description IP Address Shows the IP address of the current device. IPv6 Address Shows the IPv6 address of the current device. IPv6 Autoconfigured Global Addresses Shows the IPv6 auto configuredglobal address of the current device. -
Page 17: Administrator Password
DG-WM2001SI User Manual 2.1.3 Administrator Password Field Description Current password Input the current administrator password. New password Input the new password. Confirm new password Input the new password again and it must be same as the above new password. 2.1.4 Serial Settings... -
Page 18: Chapter 3 Current Status
DG-WM2001SI User Manual Chapter 3 Current Status The current status includes network information, statistic of transmitting and receiving packets and the client association. 3.1 Network Information 3.1.1 Wired Settings Field Description MAC address Shows the MAC address of the current device. - Page 19 DG-WM2001SI User Manual Subnet mask Shows the subnet mask of the current device. IPv6 Address Shows the IPv6 address of the current device. Static IPv6 Address Prefix Length Shows the prefix length of static IPv6 address. IPv6 Auto configured Global Addresses Shows the IPv6 auto configured global addresses of the current device.
-
Page 20: Wireless Settings
DG-WM2001SI User Manual 3.1.2 Wireless Settings Field Description MAC address Shows the MAC address information of RF1 or 2. Mode Shows the wireless mode information of RF1 or 2. Channel Shows the channel information of RF1 or 2. 3.1.3 Explanation Click the “Edit”... - Page 21 DG-WM2001SI User Manual Field Description Interface The name of Ethernet interface or VAP interface. Status Mark the interface is up or down. MAC address MAC address of the specific interface. Every interface of AP has the unparalleled MAC address. Each interface of each RF of the two RF has a different MAC address.
-
Page 22: Transmit/Receive Packets
DG-WM2001SI User Manual 3.2.2 Transmit/Receive Packets Field Description Interface The name of Ethernet interface or VAP interface. Packets number Shows the number of the packets that the AP sent (in the transmitting packet table) or received (in the receiving packet table). -
Page 23: Client Associations
DG-WM2001SI User Manual receiving packet table). Dropped packets number Shows the number of the sent (in the transmitting packet table) or received (in the receiving packet table) packets that the AP dropped. Bytes number of dropped packets Shows the number of the sent (in the transmitting packet table) or received (in the receiving packet table) bytes that the AP dropped. - Page 24 DG-WM2001SI User Manual Dropped packets bytes after received. Dropped bytes To station Packets It means that the number of packets and bytes client received and the Bytes number of dropped packets and bytes in transmission. Dropped packets Dropped bytes...
-
Page 25: Chapter 4 Advance Configuration
DG-WM2001SI User Manual Chapter 4 Advance Configuration The “Advance configuration” includes Ethernet settings, wireless settings, RF parameters, virtual AP, WDS and AP modes. 4.1 Ethernet Settings Field Description Host name The host name of AP. MAC Address The MAC address of the Ethernet interface of AP. - Page 26 DG-WM2001SI User Manual Management VLAN ID The management VLAN is used to access the VLAN which is associated with the IP address of Untagged VLAN If the untagged VLAN was disabled, all the packets will be marked with the same VLAN number.
-
Page 27: Wireless Settings
DG-WM2001SI User Manual Default IPv6 Gateway Show the default IPv6 gateway of AP. IPv6 DNS Server Configure the address getting mode of DNS server of IPv6; configure the static IPv6 DNS server address. 4.2 Wireless Settings Field Description Country Choose the country of AP. -
Page 28: Rf Parameters
DG-WM2001SI User Manual 4.3 RF Parameters... - Page 29 DG-WM2001SI User Manual Field Description Radio Choose the configured RF. Status Enable/disable the RF. Mode The PHY standard used by RF. Channel Choose the channel. Channel bandwidth The channel bandwidth of 802.11n mode. Primary channel The mode of the primary channel (only the 802.11n...
-
Page 30: Virtual Ap
DG-WM2001SI User Manual 4.4 Virtual AP... -
Page 31: None Security Configuration
DG-WM2001SI User Manual Field Description Radio Choose the configured RF. Show the ID number of the virtual AP. Enabled Configure the status of the virtual AP. VLAN ID Configure the VLAN that the client associated with the virtual AP belongs to. -
Page 32: Static Wep Security Configuration
DG-WM2001SI User Manual 4.4.2 Static WEP Security Configuration Choose the security configuration as static WEP and show the detailed configuration information of static WEP security configuration. The direct key should be input in the client to pass the authentication or the decryption packet. -
Page 33: Wpa Personal Security Configuration
DG-WM2001SI User Manual 4.4.3 WPA Personal Security Configuration Choose the security configuration as WPA Personal and show the detailed configuration information of WPA Personal security configuration. The direct key should be input in the client to pass the authentication. Field... -
Page 34: Wpa Enterprise Security Configuration
DG-WM2001SI User Manual 4.4.4 WPA Enterprise Security Configuration Choose the security configuration as WPA Enterprise and show the detailed configuration information of WPA Enterprise security configuration. The direct user name and password existed in radius server should be input in client to pass the authentication. -
Page 35: Wds
DG-WM2001SI User Manual 4.4.5 WDS... -
Page 36: Ap Modes
DG-WM2001SI User Manual 4.5 AP Modes The AP modes can be switched on this page. Configure the address of Access Controller and the password of AP authentication under Mode Fat. Field Description Management AP administrative mode Configure the AP modes. -
Page 37: Chapter 5 System Maintenance
DG-WM2001SI User Manual Chapter 5 System Maintenance The system maintenance includes configuration management and firmware upgrad ation. 5.1 Configuration Management Click “reset” button to restore the configuration of AP to default. The default working mode of AP is fit AP mode . - Page 38 DG-WM2001SI User Manual file name is the input name. When the upload method was chosen as HTTP mode, click “browse” button to choose the configuration file (the format is *.xml) which needs to be uploaded. Confirm it and click “restore” button. The current configuration of AP will be restored to the configuration in the uploaded configuration file.
-
Page 39: Firmware Upgrading
DG-WM2001SI User Manual 5.2 Firmware Upgrading Platform Version of firmware Show the version of firmware of the current AP. Complete the firmware upgradation of AP by using HTTP through the following steps: 1. Choose the HTTP as the upgrading method. - Page 40 DG-WM2001SI User Manual 5. Ifyou want to known whether the firmware upgradation was successful, please check the firmware version in the firmware management page (or the basic configuration label). If the upgradation was successful, the version after upgrading will be shown.
- Page 41 DG-WM2001SI User Manual 6. If you want to known whether the firmware upgradation was successful, please check the firmware version in the firmware management page (or the basic configuration label). If the upgradation was successful, the version after upgrading will be shown.
-
Page 42: Chapter 6 Configuration Examples
DG-WM2001SI User Manual Chapter 6 Configuration Examples 6.1 Laws Wireless Access 6.1.1 Networking Requirements A department needs to achieve the mobile office through deploying AP for that the staffs can visit the internal network resources anytime and anywhere. The device... - Page 43 DG-WM2001SI User Manual Choose “enable” for Radio Interface 1. Choose IEEE 802.11b/g/n for the wireless mode. Choose the default configuration for channel. Click “submit” button. 2. Enter into the virtual AP configuration page. Choose the virtual AP enabled box (the virtual AP 0 is enabled as default.) ...
-
Page 44: Test The Configuration Results
DG-WM2001SI User Manual 6.1.3 Test the Configuration Results Enter into the client association page to view the successful on-line clients. 6.2 Cipher Wireless Access Static-WEP (Open-System) 6.2.1 Networking Requirements In a small office, the device administrator can complete the WEP (Open -System) cipher configuration through the web page. - Page 45 DG-WM2001SI User Manual Choose to enable for RF1. Choose IEEE 802.11b/g/n for the wireless mode. Use the default configuration for the channel. Click “submit” button. 2. Enter into the virtual AP configuration page. Choose the virtual AP enabled box (the virtual AP 0 is enabled as default.) ...
-
Page 46: Test The Configuration Results
DG-WM2001SI User Manual 6.2.3 Test the Configuration Results Enable the wireless client and refresh the network list. Find the configured network service in the list of “choose wireless network” (it is PSK in this example). Click “connect” and input the WEP key as 12345 in the dialog box (the input WEP key must be the same as the configured WEP key on the device). -
Page 47: Configuration Steps
DG-WM2001SI User Manual 6.3.2 Configuration Steps 1. Login the AP configuration page and enter into the wireless configuration page. Choose to enable for RF1. Choose IEEE 802.11b/g/n for the wireless mode. Use the default configuration for the channel. -
Page 48: Test The Configuration Results
DG-WM2001SI User Manual Configure the key 1 as 12345678. Use the default configuration for the broadcast key refresh rate. Click “submit” button. 6.3.3 Test the Configuration Results Enable the wireless client and refresh the network list. Find the configured network service in the list of “choose wireless network”... -
Page 49: Configuration Steps
DG-WM2001SI User Manual Fig 1-19 WPA2-Enterprise wireless access 6.4.2 Configuration Steps 1. Login the AP configuration page and enter into the wireless configuration page. Choose to enable for RF1. Choose IEEE 802.11b/g/n for the wireless mode. Use the default configuration for the channel. - Page 50 DG-WM2001SI User Manual 2. Enter into the virtual AP configuration page. Choose the virtual AP enabled box (the virtual AP 0 is enabled as default.) Configure the VLAN ID according to the actual situation. Configure SSID as “WPA-Enterprise”.
-
Page 51: Test The Configuration Results
DG-WM2001SI User Manual 6.4.3 Test the Configuration Results Enable the wireless client and click the “modify the advanced configuration”; choose the wireless network configuration in the window. Choose to use the windows to configure my wireless network configuration and click “add” button; input “WPA-Enterprise”...
