CMMT-ST Plug-in
Adding the measuring bar
In the graph, simple measurements related to the X axis and the Y primary axis can be carried out via
the measuring bar. Measuring bars can be added to the graph using the following mouse-keyboard
combinations:
Measuring bar type
Measuring bar with
dimensional reference
to the X axis
Measuring bar with
dimensional reference
to the X axis and to the
Y primary axis
Tab. 60 Expanding the measuring bar
1 Measuring bar with dimensional reference to
the X axis
2 Symbol Delete

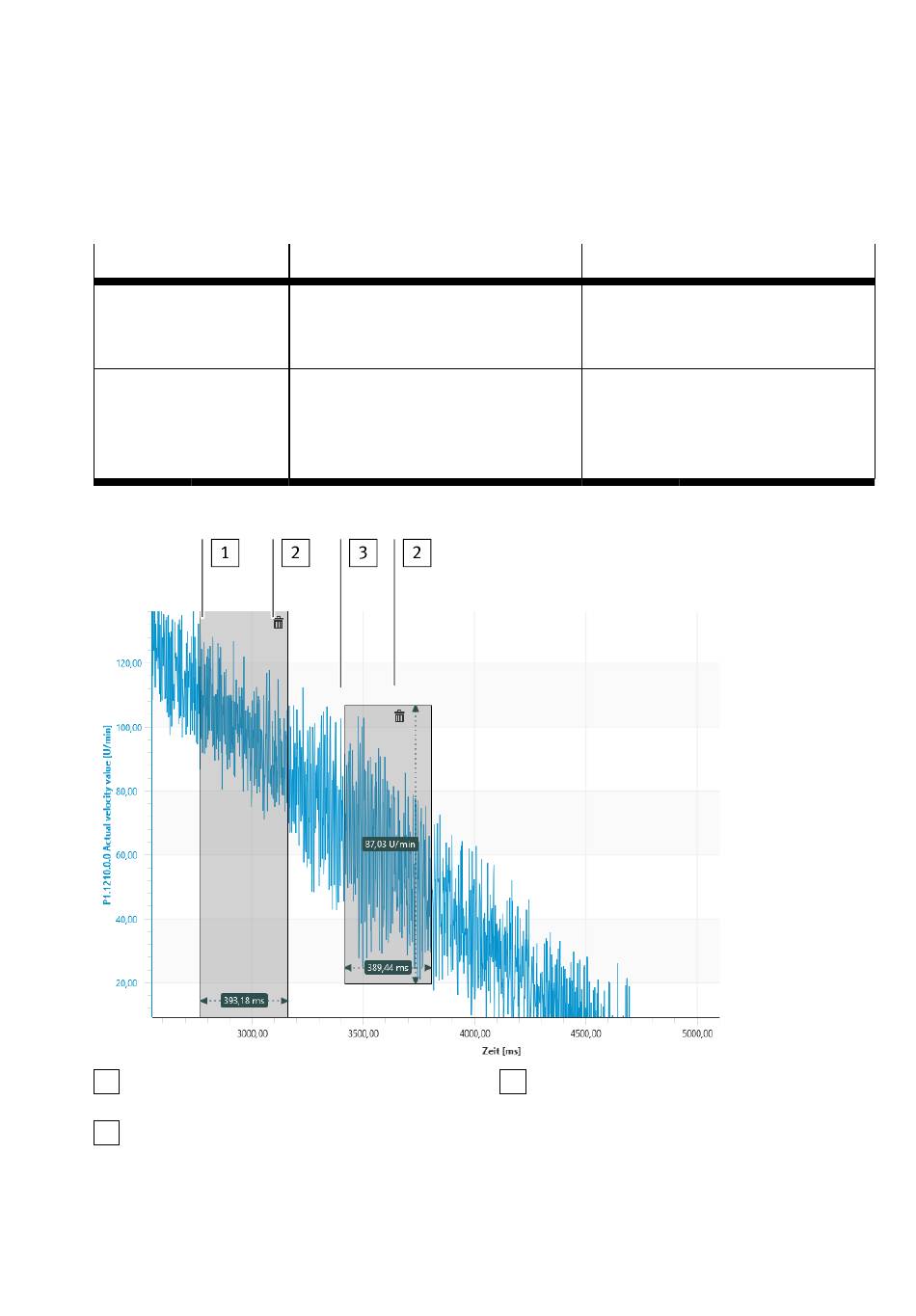

Fig. 26 Measuring bar
Depending on the measuring bar added, the distance between the measuring bar edges is displayed
with reference to the X axis or with reference to the X axis and Y axis. Clicking on the symbols shown in
Festo — CMMT-ST-SW — 2019-02
User action
Keep the [CTRL] + [shift] + [left
mouse button] pressed and drag the
mouse
Keep the [CTRL] + [left mouse but-
ton] pressed and drag the mouse
Behaviour
The measuring bar will stretch to the
the entire graph height.
The measuring bar will stretch from
the start point to the current mouse
position.
3 Measuring bar with dimensional reference to
the X axis and to the Y primary axis
91
