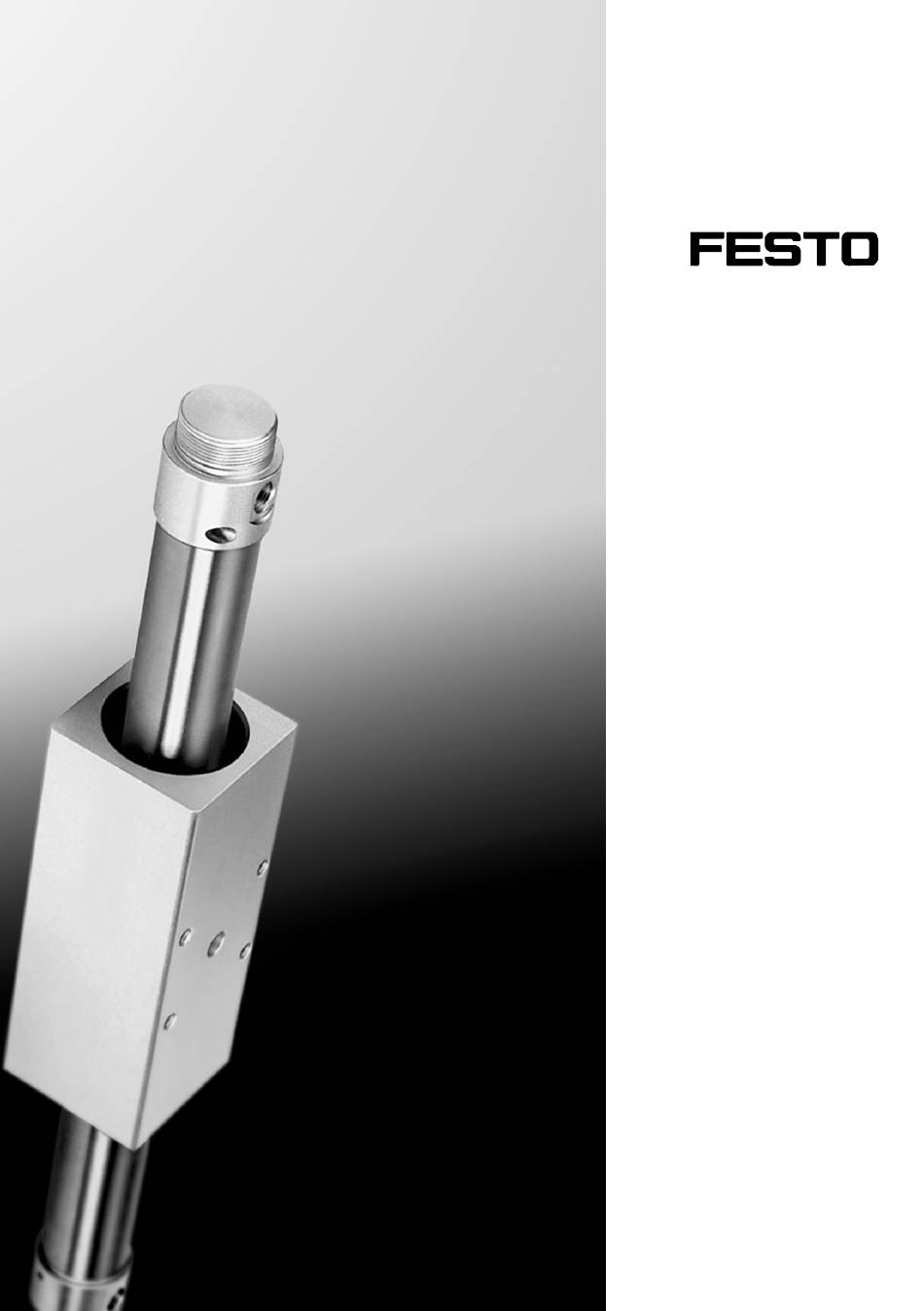

DGO-...-A-B Pneumatic linear drive DGO-...-A-BEnglish Documentation on the product For all available product documentation è www.festo.com/pk Operating parts and connections Fastening thread Lubricating nipple Compressed air port Integrated switching magnet Thread for fastening the work load Adjusting screw for end position cushioning (not with DGO-12-...)
Application The DGO-... has been designed for transporting mass loads. Transport and storage Consider the weight of the product. Depending on the design, the DGO-... weighs over 10 kg. Fig. 2 Festo DGO-...-A-B 2017-10c English...
The packing is intended for recycling (except for: oiled paper which must be disposed of ). LF-... LR-... Make sure there is a supply of correctly prepared compressed air (see “Technical specifications”). Fig. 4 Festo DGO-...-A-B 2017-10c English...
Page 6
The max. permitted misalignment of parallel guiding is 1 mm. S Make sure that a degree of freedom is maintained between the slide and the work load. Driver type FKG-... can be used for this purpose. (see chapter “Accessories”). Festo DGO-...-A-B 2017-10c English...
Page 7
“a” remains low (see Fig. 8). Observe the maximum values for radial force F (see Fig. 8). ax [N] rad [N] 1000 DGO-40 DGO-32 DGO-25 DGO-20 DGO-16 DGO-12 a [mm] H [mm] Fig. 8 Festo DGO-...-A-B 2017-10c English...
Page 8
Depending on the size of the work mass, the DGO-... will withstand maximum speeds as shown in the following diagram: [m/s] [m/s] m [kg] m [kg] Fig. 9 Loadings in excess of the specified maximum values: Use additional external shock absorbers or fixed stops of sufficient size. Festo DGO-...-A-B 2017-10c English...
Page 10
8 mm 7 mm 9 mm 10 mm Fig. 12 Maximum screw depth L of the compressed air ports Controlling the DGO-...: Use 3/2-way valves (in basic position open) for both compressed air ports. Fig. 13 Festo DGO-...-A-B 2017-10c English...
Page 11
It must not be possible to touch the DGO-... until it has come to a complete stand. 1. Close both one-way flow control valves – at first completely, – then loosen them one turn. Fig. 16 Festo DGO-...-A-B 2017-10c English...
Page 12
Ó Ó – the adjusting screws for the end Ó Ó Ó position cushioning – the adjusting screws for the one-way Fig. 18 flow control valves. Ó Ó Ó Ó Ó Ó Ó Ó Fig. 19 Festo DGO-...-A-B 2017-10c English...
DGO-... until it has come to a complete stand. Warning Make sure that the moveable mass is always cushioned gently. Otherwise the magnet coupling will tear off (see “Eliminating faults”). With vertical or sloping drive mountings, the moveable mass will then slide down. Festo DGO-...-A-B 2017-10c English...
Care and maintenance Clean the cylinder barrel if required with a soft cloth. The following cleaning agents are permitted: all non-abrasive media. Lubricate the DGO-... at the lubricating nipple with Festo special grease type LUB-KC1 (silicon-free). Lubrication intervals: every 500 kilometres run Note that lubrication must be undertaken more often: –...
Lubrication missing Lubricate Cylinder barrel dirty Clean, provide a cover Cylinder barrel damaged Consult Festo after-sales service Slide does not Adjusting screw of end position Open adjusting screw come into cushioning completely closed stroke end Magnetic coupling is interrupted...
Cushioning length – 14 mm 17 mm 19 mm 20 mm 23 mm Axial torsional 360° strength of the external slide Materials Slide and end cover: Al (anodized): Cylinder barrel: Steel, stainless Seals: Buna N; polyurethane Festo DGO-...-A-B 2017-10c English...
