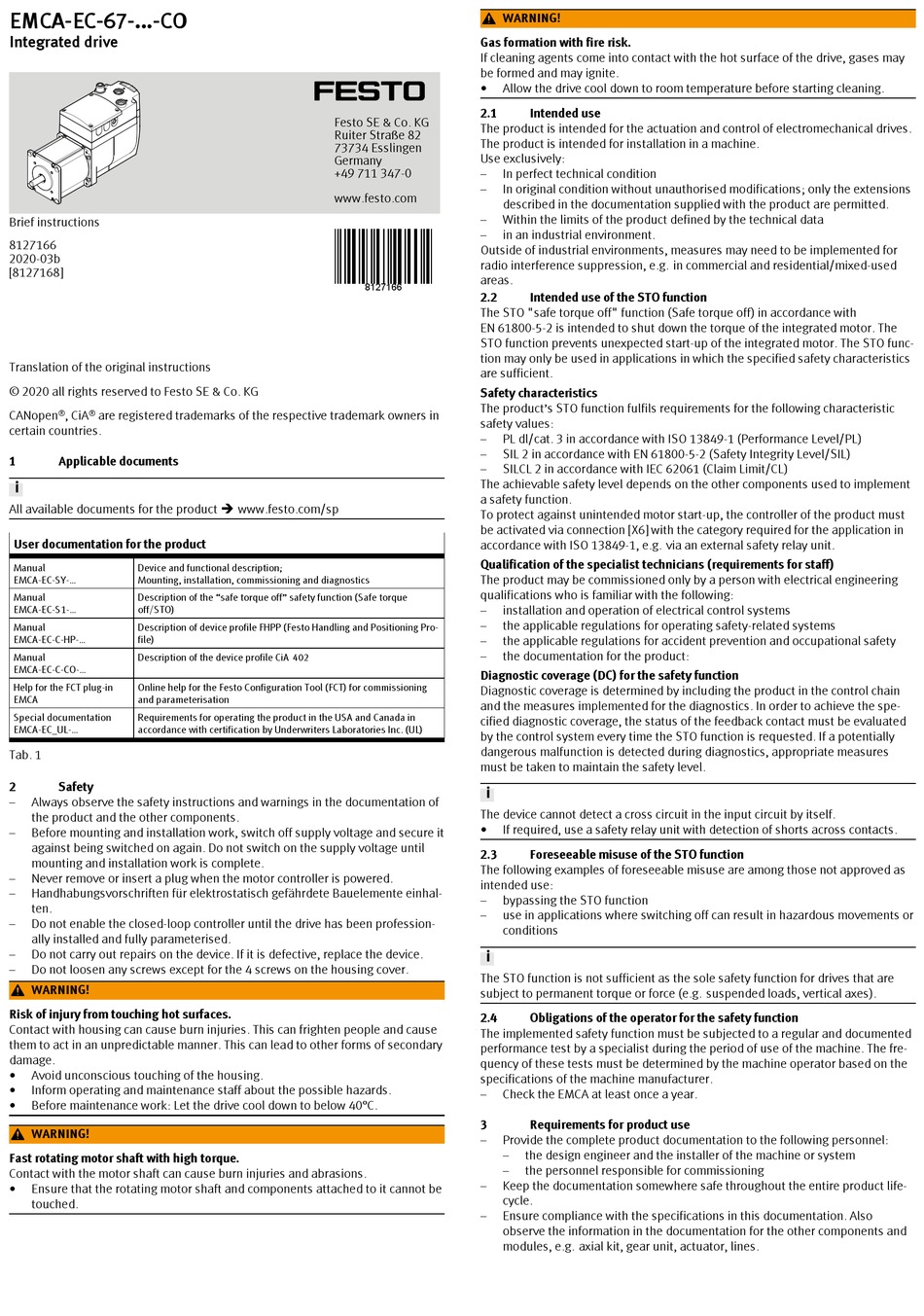

Festo EMCA-EC-67 CO Series Brief Instructions

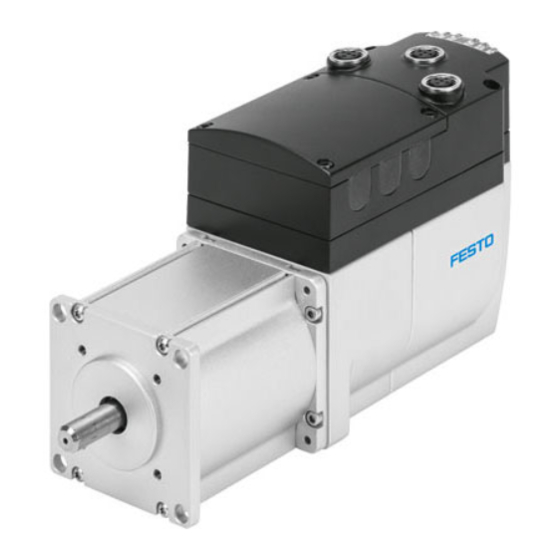

EMCA-EC-67-...-CO
Integrated drive
Brief instructions
8127166
2020-03b
[8127168]
Translation of the original instructions
© 2020 all rights reserved to Festo SE & Co. KG
CANopen ® , CiA ® are registered trademarks of the respective trademark owners in
certain countries.
1 Applicable documents
All available documents for the product è www.festo.com/sp
User documentation for the product
Manual Device and functional description;
EMCA-EC-SY-... Mounting, installation, commissioning and diagnostics
Manual Description of the "safe torque off" safety function (Safe torque
EMCA-EC-S1-... off/STO)
Manual Description of device profile FHPP (Festo Handling and Positioning Pro-
EMCA-EC-C-HP-... file)
Manual Description of the device profile CiA 402
EMCA-EC-C-CO-...
Help for the FCT plug-in Online help for the Festo Configuration Tool (FCT) for commissioning
EMCA and parameterisation
Special documentation Requirements for operating the product in the USA and Canada in
EMCA-EC_UL-... accordance with certification by Underwriters Laboratories Inc. (UL)
Tab. 1
2 Safety
– Always observe the safety instructions and warnings in the documentation of
the product and the other components.
– Before mounting and installation work, switch off supply voltage and secure it
against being switched on again. Do not switch on the supply voltage until
mounting and installation work is complete.
– Never remove or insert a plug when the motor controller is powered.
– Handhabungsvorschriften für elektrostatisch gefährdete Bauelemente einhal-
ten.
– Do not enable the closed-loop controller until the drive has been profession-
ally installed and fully parameterised.
– Do not carry out repairs on the device. If it is defective, replace the device.
– Do not loosen any screws except for the 4 screws on the housing cover.
WARNING!
Risk of injury from touching hot surfaces.
Contact with housing can cause burn injuries. This can frighten people and cause
them to act in an unpredictable manner. This can lead to other forms of secondary
damage.
• Avoid unconscious touching of the housing.
• Inform operating and maintenance staff about the possible hazards.
• Before maintenance work: Let the drive cool down to below 40°C.
WARNING!
Fast rotating motor shaft with high torque.
Contact with the motor shaft can cause burn injuries and abrasions.
• Ensure that the rotating motor shaft and components attached to it cannot be
touched.
WARNING!
Gas formation with fire risk.
If cleaning agents come into contact with the hot surface of the drive, gases may
be formed and may ignite.
• Allow the drive cool down to room temperature before starting cleaning.
2.1
Festo SE & Co. KG
The product is intended for the actuation and control of electromechanical drives.
Ruiter Straße 82
The product is intended for installation in a machine.
73734 Esslingen
Use exclusively:
Germany
+49 711 347-0
– In perfect technical condition
– In original condition without unauthorised modifications; only the extensions
www.festo.com
described in the documentation supplied with the product are permitted.
– Within the limits of the product defined by the technical data
– in an industrial environment.
Outside of industrial environments, measures may need to be implemented for
radio interference suppression, e.g. in commercial and residential/mixed-used
areas.
8127166
2.2
The STO "safe torque off" function (Safe torque off) in accordance with
EN 61800-5-2 is intended to shut down the torque of the integrated motor. The
STO function prevents unexpected start-up of the integrated motor. The STO func-
tion may only be used in applications in which the specified safety characteristics
are sufficient.
Safety characteristics
The product's STO function fulfils requirements for the following characteristic
safety values:
– PL dl/cat. 3 in accordance with ISO 13849-1 (Performance Level/PL)
– SIL 2 in accordance with EN 61800-5-2 (Safety Integrity Level/SIL)
– SILCL 2 in accordance with IEC 62061 (Claim Limit/CL)
The achievable safety level depends on the other components used to implement
a safety function.
To protect against unintended motor start-up, the controller of the product must
be activated via connection [X6] with the category required for the application in
accordance with ISO 13849-1, e.g. via an external safety relay unit.
Qualification of the specialist technicians (requirements for staff)
The product may be commissioned only by a person with electrical engineering
qualifications who is familiar with the following:
– installation and operation of electrical control systems
– the applicable regulations for operating safety-related systems
– the applicable regulations for accident prevention and occupational safety
– the documentation for the product:
Diagnostic coverage (DC) for the safety function
Diagnostic coverage is determined by including the product in the control chain
and the measures implemented for the diagnostics. In order to achieve the spe-
cified diagnostic coverage, the status of the feedback contact must be evaluated
by the control system every time the STO function is requested. If a potentially
dangerous malfunction is detected during diagnostics, appropriate measures
must be taken to maintain the safety level.
The device cannot detect a cross circuit in the input circuit by itself.
• If required, use a safety relay unit with detection of shorts across contacts.
2.3
The following examples of foreseeable misuse are among those not approved as
intended use:
– bypassing the STO function
– use in applications where switching off can result in hazardous movements or
conditions
The STO function is not sufficient as the sole safety function for drives that are
subject to permanent torque or force (e.g. suspended loads, vertical axes).
2.4
The implemented safety function must be subjected to a regular and documented
performance test by a specialist during the period of use of the machine. The fre-
quency of these tests must be determined by the machine operator based on the
specifications of the machine manufacturer.
– Check the EMCA at least once a year.
3
– Provide the complete product documentation to the following personnel:
–
–
– Keep the documentation somewhere safe throughout the entire product life-
cycle.
– Ensure compliance with the specifications in this documentation. Also
observe the information in the documentation for the other components and
modules, e.g. axial kit, gear unit, actuator, lines.
Intended use
Intended use of the STO function
Foreseeable misuse of the STO function
Obligations of the operator for the safety function
Requirements for product use
the design engineer and the installer of the machine or system
the personnel responsible for commissioning
