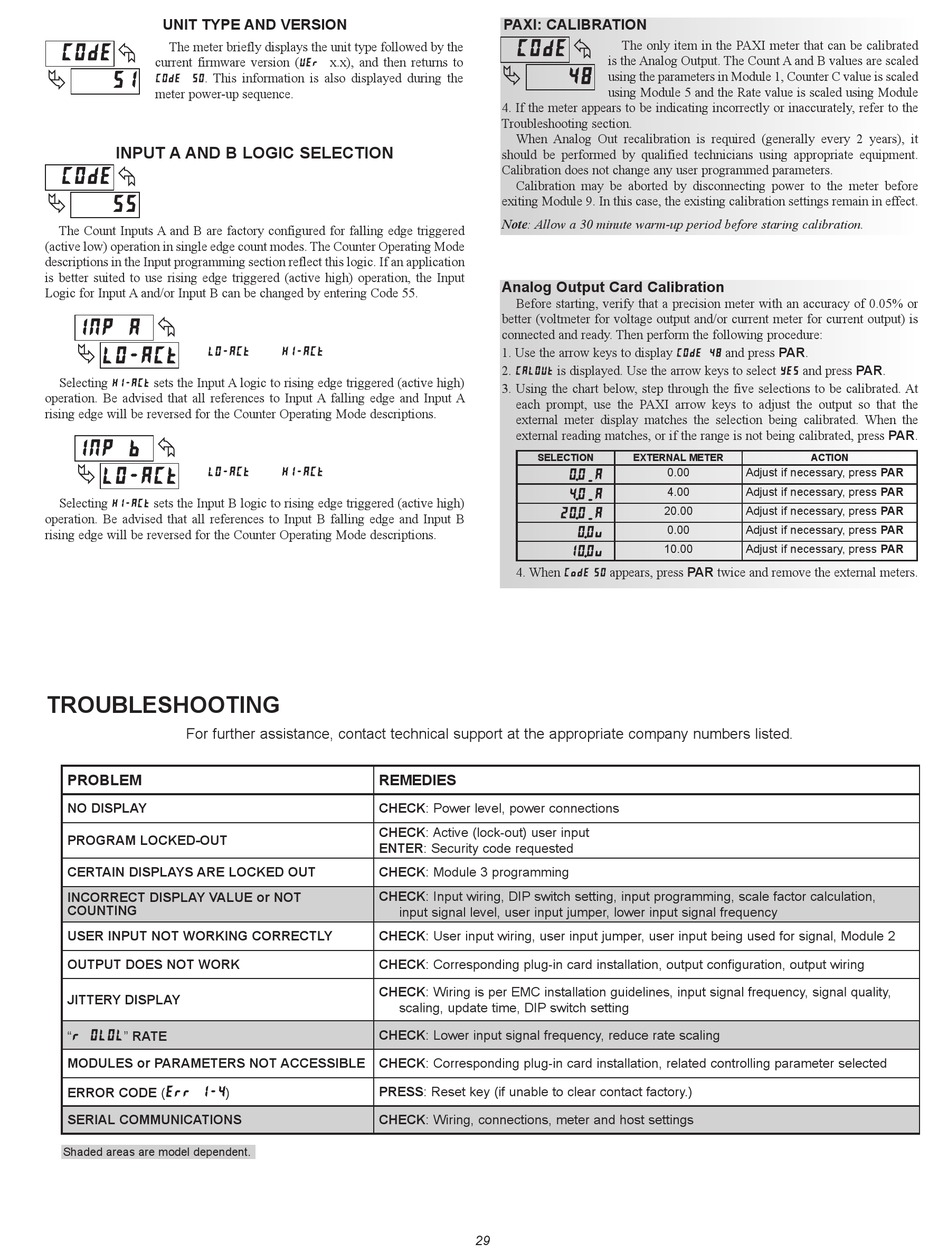

Troubleshooting - red lion PAX Manual

UNIT TYPE AND VERSION
The meter briefly displays the unit type followed by the


current firmware version (

. This information is also displayed during the

 
meter power-up sequence.
INPUT A AND B LOGIC SELECTION




The Count Inputs A and B are factory configured for falling edge triggered
(active low) operation in single edge count modes. The Counter Operating Mode
descriptions in the Input programming section reflect this logic. If an application
is better suited to use rising edge triggered (active high) operation, the Input
Logic for Input A and/or Input B can be changed by entering Code 55.

 

 
Selecting sets the Input A logic to rising edge triggered (active high)

operation. Be advised that all references to Input A falling edge and Input A
rising edge will be reversed for the Counter Operating Mode descriptions.

 

 
Selecting sets the Input B logic to rising edge triggered (active high)

operation. Be advised that all references to Input B falling edge and Input B
rising edge will be reversed for the Counter Operating Mode descriptions.

TROUBLESHOOTING

For further assistance, contact technical support at the appropriate company numbers listed.
PROBLEM
NO DISPLAY
PROGRAM LOCKED-OUT
CERTAIN DISPLAYS ARE LOCKED OUT
INCORRECT DISPLAY VALUE or NOT
COUNTING
USER INPUT NOT WORKING CORRECTLY
OUTPUT DOES NOT WORK
JITTERY DISPLAY
" " RATE
 
MODULES or PARAMETERS NOT ACCESSIBLE
ERROR CODE (
 
SERIAL COMMUNICATIONS
Shaded areas are model dependent.
x.x), and then returns to



REMEDIES
CHECK: Power level, power connections
CHECK: Active (lock-out) user input
ENTER: Security code requested
CHECK: Module 3 programming
CHECK: Input wiring, DIP switch setting, input programming, scale factor calculation,
input signal level, user input jumper, lower input signal frequency
CHECK: User input wiring, user input jumper, user input being used for signal, Module 2
CHECK: Corresponding plug-in card installation, output configuration, output wiring
CHECK: Wiring is per EMC installation guidelines, input signal frequency, signal quality,
scaling, update time, DIP switch setting
CHECK: Lower input signal frequency, reduce rate scaling
CHECK: Corresponding plug-in card installation, related controlling parameter selected
PRESS: Reset key (if unable to clear contact factory.)
)
CHECK: Wiring, connections, meter and host settings
PAXI: CALIBRATION

The only item in the PAXI meter that can be calibrated

is the Analog Output. The Count A and B values are scaled


using the parameters in Module 1, Counter C value is scaled
using Module 5 and the Rate value is scaled using Module
4. If the meter appears to be indicating incorrectly or inaccurately, refer to the
Troubleshooting section.
When Analog Out recalibration is required (generally every 2 years), it
should be performed by qualified technicians using appropriate equipment.
Calibration does not change any user programmed parameters.
Calibration may be aborted by disconnecting power to the meter before
exiting Module 9. In this case, the existing calibration settings remain in effect.
Note: Allow a 30 minute warm-up period before staring calibration.
Analog Output Card Calibration
Before starting, verify that a precision meter with an accuracy of 0.05% or
better (voltmeter for voltage output and/or current meter for current output) is
connected and ready. Then perform the following procedure:
1. Use the arrow keys to display
2. is displayed. Use the arrow keys to select

3. Using the chart below, step through the five selections to be calibrated. At
each prompt, use the PAXI arrow keys to adjust the output so that the
external meter display matches the selection being calibrated. When the
external reading matches, or if the range is not being calibrated, press PAR.
SELECTION EXTERNAL METER
0 0  
 0  
0 0  
0 0 
0 0 
4. When appears, press PAR twice and remove the external meters.
 
29
and press PAR.
 
and press PAR.

ACTION
0.00 Adjust if necessary, press PAR
4.00 Adjust if necessary, press PAR
20.00 Adjust if necessary, press PAR
0.00 Adjust if necessary, press PAR
10.00 Adjust if necessary, press PAR
