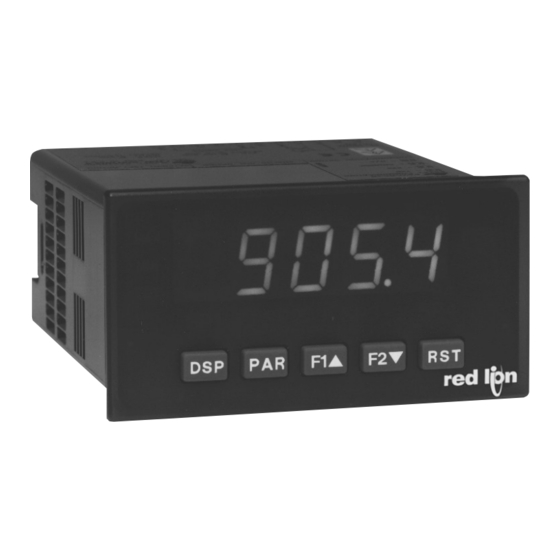

red lion PAXT0010 Manual

1/8 din analog input panel meters
Hide thumbs Also See for PAXT0010:
Table of Contents

Advertisement

Quick Links

Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution
of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business
relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components
to meet their specific needs.
With the principle of "Quality Parts,Customers Priority,Honest Operation,and Considerate Service",our business
mainly focus on the distribution of electronic components. Line cards we deal with include
Microchip,ALPS,ROHM,Xilinx,Pulse,ON,Everlight and Freescale. Main products comprise
IC,Modules,Potentiometer,IC Socket,Relay,Connector.Our parts cover such applications as commercial,industrial,
and automotives areas.
We are looking forward to setting up business relationship with you and hope to provide you with the best service
and solution. Let us make a better world for our industry!
Contact us
Tel: +86-755-8981 8866 Fax: +86-755-8427 6832
Email & Skype: info@chipsmall.com Web: www.chipsmall.com
Address: A1208, Overseas Decoration Building, #122 Zhenhua RD., Futian, Shenzhen, China
  

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAXT0010 and is the answer not in the manual?

Questions and answers

Related Manuals for red lion PAXT0010

Summary of Contents for red lion PAXT0010

  • Page 1 Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components to meet their specific needs.

  • Page 2: General Description

    Bulletin No. PAX-R Drawing No. LP0545 Released 04/16 Tel +1 (717) 767-6511 Fax +1 (717) 764-0839 www.redlion.net ® MODEL PAX – 1/8 DIN ANALOG INPUT PANEL METERS  PROCESS, VOLTAGE, CURRENT, TEMPERATURE, AND STRAIN GAGE INPUTS  5-DIGIT 0.56" RED SUNLIGHT READABLE DISPLAY ...
  • Page 3 able OnTenTs Ordering Information ....2 Setting the Jumpers ....8 General Meter Specifications .
  • Page 4 eneral eTer peCifiCaTiOns 1. DISPLAY: 5 digit, 0.56" (14.2 mm) red sunlight readable or standard green 14. MEMORY: Nonvolatile E PROM retains all programmable parameters and LEDs, (-19999 to 99999) display values. 2. POWER: 15. ENVIRONMENTAL CONDITIONS: AC Versions: Operating Temperature Range: 0 to 50°C (0 to 45°C with all three option AC Power: 85 to 250 VAC, 50/60 Hz, 15 VA cards installed) Isolation: 2300 Vrms for 1 min.
  • Page 5 paXd - U dC i Odel niversal npUT  FOUR VOLTAGE RANGES (300 VDC Max)  FIVE CURRENT RANGES (2A DC Max)  THREE RESISTANCE RANGES (10K Ohm Max)  SELECTABLE 24 V, 2 V, 1.75 mA EXCITATION PAXD SPECIFICATIONS INPUT RANGES: INPUT ACCURACY*...
  • Page 6 paXH - aC T rms v Odel OlT and UrrenT  FOUR VOLTAGE RANGES (300 VAC Max)  FIVE CURRENT RANGES (5 A Max)  ACCEPTS AC OR DC COUPLED INPUTS  THREE WAY ISOLATION: POWER, INPUT AND OUTPUTS PAXH SPECIFICATIONS INPUT RANGES: Isolation To Option Card Commons and User Input Commons: 125 Vrms *Conditions for accuracy specification:...

  • Page 7: Programming Software

    paXT - T rTd i Odel HermOCOUple and npUT  THERMOCOUPLE AND RTD INPUTS  CONFORMS TO ITS-90 STANDARDS  CUSTOM SCALING FOR NON-STANDARD PROBES  TIME-TEMPERATURE INTEGRATOR PAXT SPECIFICATIONS READOUT: Resolution: Variable: 0.1, 0.2, 0.5, or 1, 2, or 5 degrees Scale: F or C RTD INPUTS: Offset Range: -19,999 to 99,999 display units...
  • Page 8 pTiOn ards WARNING: Disconnect all power to the unit before SETPOINT CARDS (PAXCDS) installing option cards. The PAX and MPAX series has 6 available setpoint alarm output option cards. Only one of these cards can be installed at a time. (Logic state of the outputs can be reversed in the programming.) Adding Option Cards DUAL RELAY CARD: PAXCDS10...
  • Page 9 LINEAR DC OUTPUT (PAXCDL) Either a 0(4)-20 mA or 0-10 V retransmitted linear DC output is available from the analog output option card. The programmable output low and high scaling can be based on various display values. Reverse slope output is possible by reversing the scaling point positions.

  • Page 10: Jumper Selections

    PAXD Jumper Selection Input Range Jumper One jumper is used for voltage/ohms or current input ranges. Select the proper input range high enough to avoid input signal overload. Only one jumper is allowed in this area. Do not have a jumper in both the voltage and current ranges at the same time.
  • Page 11 PAXP Jumper Selection Main Circuit JUMPER SELECTIONS Board indicates factory setting. USER INPUT LOGIC JUMPER SINK SOURCE REAR TERMINALS USER INPUT JUMPER LOCATION PAXS Jumper Selection Bridge Excitation One jumper is used to select bridge excitation to allow use of the higher sensitivity 24 mV input Main range.
  • Page 12 3.0 i nsTalling pTiOn ards Note: For option card specific installation instructions, refer to the To Install: literature shipped with the option card. 1. With the meter removed from the case, locate the option card connector for The option cards are separately purchased cards that perform specific the card type to be installed.

  • Page 13: Wiring Overview

    Visit RLC’s web site at http://www.redlion.net/emi for more information on a. Connect the shield to earth ground (protective earth) at one end where the EMI guidelines, Safety and CE issues as they relate to Red Lion Controls unit is mounted.

  • Page 14: Input Signal Wiring

    4.2 INPUT SIGNAL WIRING PAXD INPUT SIGNAL WIRING Before connecting signal wires, the Input Range Jumper and Excitation Jumper should be verified for proper position. Voltage Signal Current Signal Current Signal (2 wire Current Signal (3 wire (self powered) (self powered) requiring excitation) requiring excitation) Terminal 4: -ADC...
  • Page 15 PAXH INPUT SIGNAL WIRING Before connecting signal wires, the Signal, Input Range and Couple Jumpers should be verified for proper position. Voltage Signal Current Signal (Amps) Current Signal (Milliamps) CAUTION: Connect only one input signal range to the meter. Hazardous signal levels may be present on unused inputs.

  • Page 16: User Input Wiring

    4.3 USER INPUT WIRING Before connecting the wires, the User Input Logic Jumper should be verified for proper position. If not using User Inputs, then skip this section. Only the appropriate User Input terminal has to be wired. Sinking Logic Sourcing Logic Terminal 8-10: Terminal 8-10: + VDC thru external switching device...
  • Page 17 6.0 p rOgramming THe eTer OVERVIEW DISPLAY MODE PROGRAMMING MENU MAIN MENU User Input/ Display/ Signal Function Program Secondary Totalizer Setpoint* Serial* Analog* Factory Input Lock-out Function (Integrator) (Alarm) Communication Output Service Parameters Parameters Parameters Parameters Parameters Parameters Parameters Operations Parameters F1/F2 Keys...
  • Page 18 6.1 mOdUle 1 - s  ignal npUT arameTers 1-INP PAX PARAMETER MENU PAXH ONLY rAN6E COUPL dECPt round FILtr bANd StYLE Input Input Display Display Filter Filter Scaling Scaling Input x Display x Range Couple Decimal Point Rounding Setting Band Points Style...
  • Page 19 DISPLAY ROUNDING SCALING POINTS                  Bottom row selections are not Linear - Scaling Points (2) available for the PAXT. For linear processes, only 2 scaling points are necessary. It is recommended that the 2 scaling points be at opposite ends of the input signal being applied.

  • Page 20: Parameter Menu

    DISPLAY VALUE FOR SCALING POINT 2 4. The maximum scaled Display Value spread between range maximum and minimum is limited to 65,535. For example using +20 mA range the      maximum +20 mA can be scaled to is 32,767 with 0 mA being 0 and Display ...
  • Page 21 HOLD DISPLAY RESET MAXIMUM   When activated (momentary action),  flashes and  The shown display is held but all other meter functions  the Maximum resets to the present Input Display value. The continue as long as activated (maintained action). ...
  • Page 22 SETPOINT SELECTIONS PRINT REQUEST   The following selections are accessible only with the Setpoint option card   installed. Refer to Module 6 for an explanation of their operation.     ì  Select main or alternate setpoints The meter issues a block print through the serial port when activated.
  • Page 23 6.4 mOdUle 4 - s  eCOndary UnCTiOn arameTers PARAMETER MENU 4-SEC PAXS PAXS PAXT ONLY ONLY PAXT ONLY HI-t LO-t dSP-t At-t At-b b-LIt OFFSt Max. Capture Min. Capture Display Update Auto-Zero Auto-Zero Units Label Display Offset Ice Point Delay Time Delay Time Time...
  • Page 24 6.5 mOdUle 5 - T  OTalizer nTegraTOr arameTers 5-tOt PARAMETER MENU dECPt tbASE SCFAC Locut P-UP Totalizer Totalizer Totalizer Totalizer Low Totalizer Power Decimal Point Time Base Scale Factor Cut Value Up Reset TOTALIZER HIGH ORDER DISPLAY The totalizer accumulates (integrates) the Input Display value using one of When the total exceeds 5 digits, the front panel annunciator TOT flashes.

  • Page 25: Setpoint Select

    ) Ñ 6.6 mOdUle 6 - s  eTpOinT larm arameTers PARAMETER MENU 6-SPt SPSEL ACt-n SP-n Src-n HYS-n tON-n tOF-n out-n Setpoint Setpoint Setpoint Setpoint Setpoint On Time Off Time Output Select Action Value Source Hysteresis Delay Delay Logic PAXT ONLY rSt-n...
  • Page 26 SETPOINT ACTION ON TIME DELAY              sec.           Enter the action for the selected setpoint (alarm output). See Setpoint Alarm Enter the time value in seconds that the alarm is delayed from turning on after Figures for a visual detail of each action.
