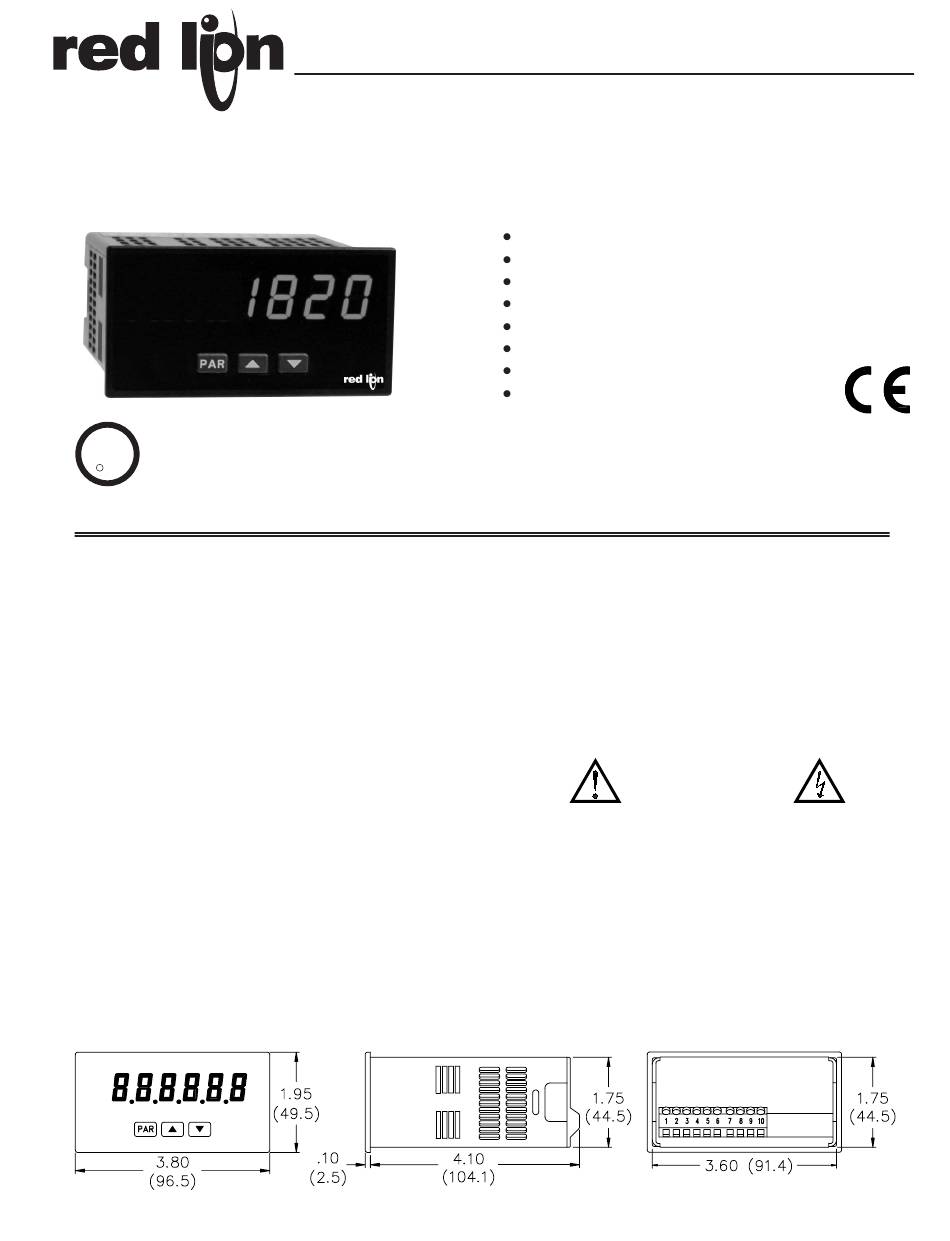

MODEL PAXLR - PAX LITE RATE METER
U
L
C
US LISTED
US LISTED
4
IND. CONT . EQ.
51EB
GENERAL DESCRIPTION

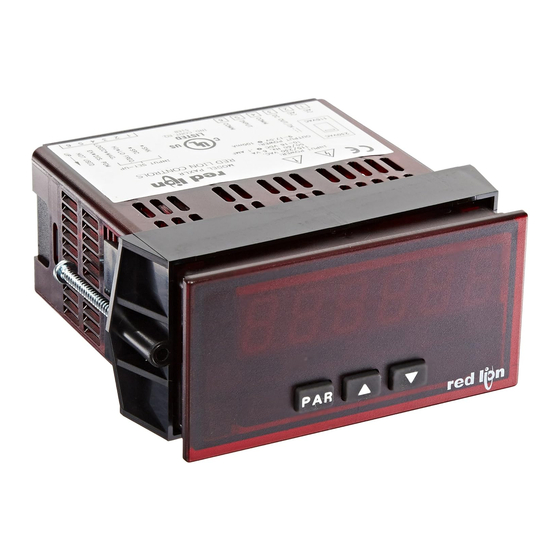

The PAX Lite Rate Meter, Model PAXLR, provides the versatility and
flexibility needed to accommodate virtually any rate measuring application. The
meter has the ability to scale for direct readout in terms of the units being
measured. Whether a machine produces bottles, cloth, wire, or beverage mix,
operation is enhanced when the rate readout is expressed directly in bottles/min.,
feet/min., gallons/min., or whatever units are needed in plant applications.
The PAXLR can accommodate magnetic pickups, logic sensors, and NPN
open collector sensors. The pulses are received and scaled, so the desired
display can be achieved. The meter is programmed through both the front panel
buttons and DIP switches. Once the programming is complete, the front panel
buttons can be disabled by a DIP switch setting.
The meter has been specifically designed for harsh industrial environments.
With NEMA 4X/IP65 sealed bezel and extensive testing to meet CE
requirements, the meter provides a tough, yet reliable application solution.
DIMENSIONS In inches (mm)
RATE INDICATION
6-DIGIT, 0.56" (14.2 mm) HIGH LED DISPLAYS
INPUT RATES UP TO 25 KHZ
ACCEPTS A WIDE VARIETY OF SENSORS
PROGRAMMABLE SCALING
PROGRAMMABLE UPDATE TIME
PROGRAMMABLE DECIMAL POINTS
NEMA 4X/IP65 SEALED FRONT BEZEL
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is
2.1" (53.4) H x 5" (127) W.
1
Bulletin No. PAXLR-B
Drawing No. LP0564
Released 1/06
CAUTION: Risk of electric shock.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAXLR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for red lion PAXLR

Summary of Contents for red lion PAXLR

  • Page 1 51EB GENERAL DESCRIPTION SAFETY SUMMARY The PAX Lite Rate Meter, Model PAXLR, provides the versatility and All safety related regulations, local codes and instructions that appear in the flexibility needed to accommodate virtually any rate measuring application. The literature or on equipment must be observed to ensure personal safety and to meter has the ability to scale for direct readout in terms of the units being prevent damage to either the instrument or equipment connected to it.

  • Page 2: Table Of Contents

    ABLE ONTENTS Ordering Information ....2 Wiring the Meter ..... . 4 General Meter Specifications.

  • Page 3: General Meter Specifications

    Accepts pulses from a variety of sources including NPN-OC, PNP-OC, TTL Electrostatic discharge EN 61000-4-2 Criterion A Outputs, Magnetic Pickups and all standard Red Lion sensors. 4 kV contact discharge Logic: Input trigger levels V = 1.5 V max.; V = 3.75 V min.

  • Page 4: Setting The Switches

    2.0 S ETTING THE WITCHES The meter has switches that must be checked and/or changed prior to SWITCH 3 applying power. To access the power switch, remove the meter base from the HI Frequency: Removes damping capacitor and allows max. frequency. case by firmly squeezing and pulling back on the side rear finger tabs.
  • Page 5 3.1 POWER WIRING AC Power DC Power Terminal 1: VAC Terminal 3: +VDC Terminal 2: VAC Terminal 4: COMM 3.2 INPUT WIRING Two Wire Proximity, Current Source AC Inputs From Tach Generators, Etc. Magnetic Pickup Current Sinking Output Current Sourcing Output Interfacing With TTL Emitter Follower;...

  • Page 6: Reviewing The Front Buttons And Display

    The PAXLR is capable of showing a rate display value for 3. If the Display value is raised or lowered, then Input value must be raised any linear process.

  • Page 7: Programming The Meter

    6.0 P ROGRAMMING THE ETER PROGRAMMING SEQUENCE The Rate Indicator has five programmable parameters which are entered in HIGH UPDATE TIME (DISPLAY ZERO) the sequence shown above, using the front panel push buttons. Before programming, refer to the section on Scaling the Meter to determine seconds the Rate Scaling Display Value and Rate Scaling Input Value to use for the specific application.
  • Page 8 The Company disclaims all liability for any affirmation, promise or representation with respect to the products. The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against damages, claims, and expenses arising out of subsequent sales of RLC products or products...
