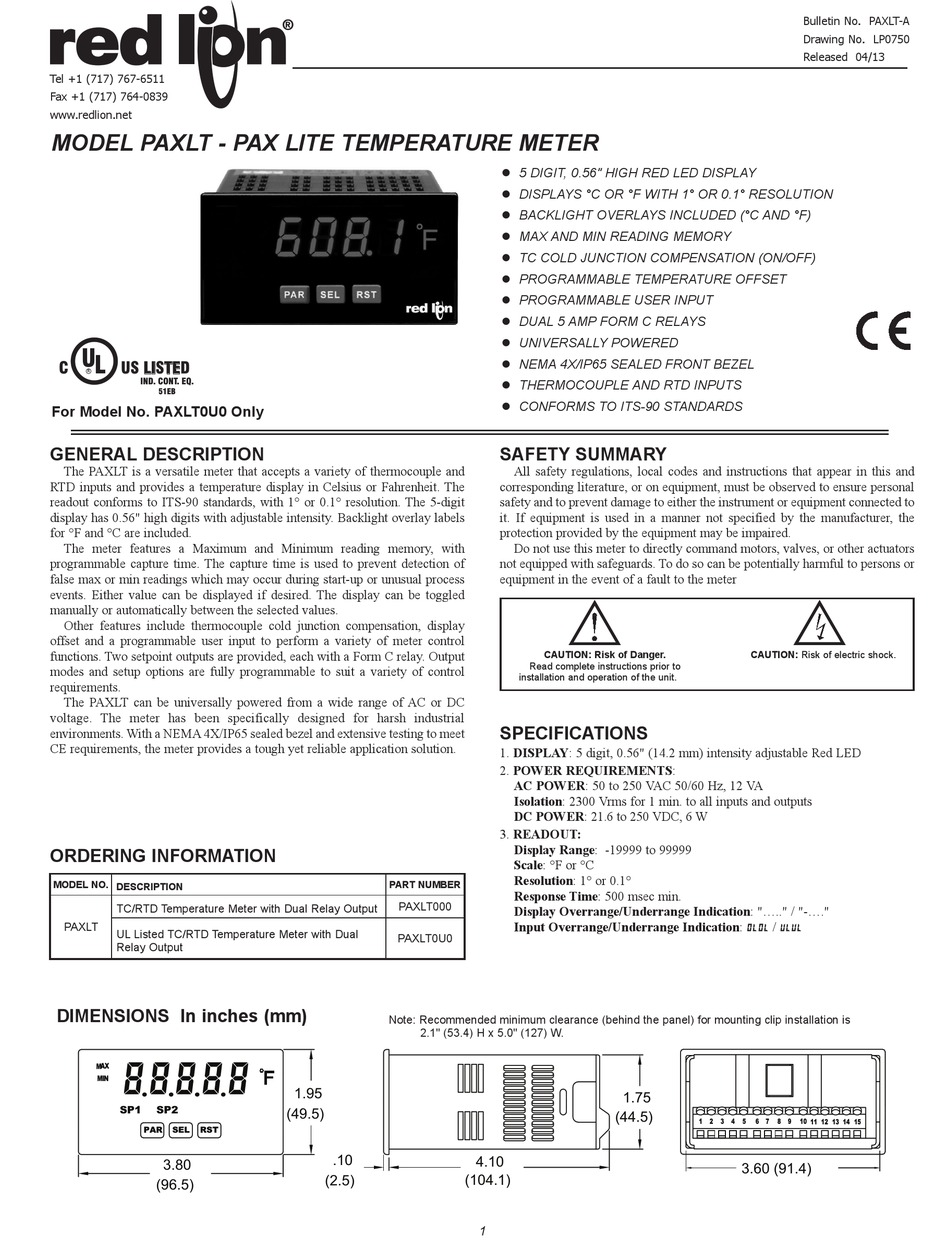

MODEL PAXLT - PAX LITE TEMPERATURE METER
U L
C US LISTED
R
IND. CONT. EQ.
51EB
For Model No. PAXLT0U0 Only

GENERAL DESCRIPTION

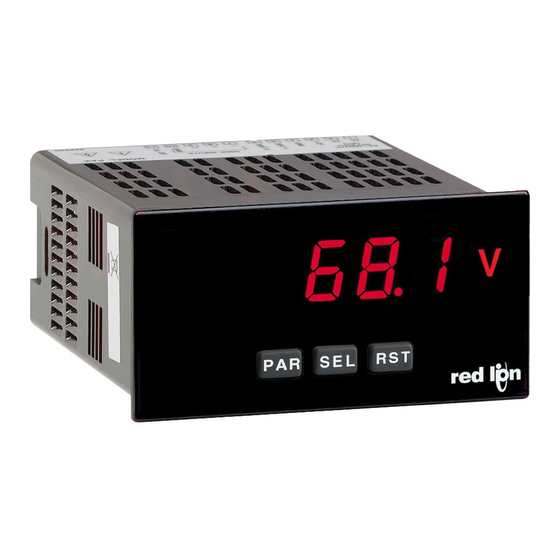

The PAXLT is a versatile meter that accepts a variety of thermocouple and
RTD inputs and provides a temperature display in Celsius or Fahrenheit. The
readout conforms to ITS-90 standards, with 1° or 0.1° resolution. The 5-digit
display has 0.56" high digits with adjustable intensity. Backlight overlay labels
for °F and °C are included.
The meter features a Maximum and Minimum reading memory, with
programmable capture time. The capture time is used to prevent detection of
false max or min readings which may occur during start-up or unusual process
events. Either value can be displayed if desired. The display can be toggled
manually or automatically between the selected values.
Other features include thermocouple cold junction compensation, display
offset and a programmable user input to perform a variety of meter control
functions. Two setpoint outputs are provided, each with a Form C relay. Output
modes and setup options are fully programmable to suit a variety of control
requirements.
The PAXLT can be universally powered from a wide range of AC or DC
voltage. The meter has been specifically designed for harsh industrial
environments. With a NEMA 4X/IP65 sealed bezel and extensive testing to meet
CE requirements, the meter provides a tough yet reliable application solution.

ORDERING INFORMATION

MODEL NO. DESCRIPTION
TC/RTD Temperature Meter with Dual Relay Output
PAXLT
UL Listed TC/RTD Temperature Meter with Dual
Relay Output
DIMENSIONS In inches (mm)
MA X
8. 8 . 8 . 8 . 8
I M N
SP1 SP2
PAR SEL RST
3.80
(96.5)
PART NUMBER
PAXLT000
PAXLT0U0
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is
2.1" (53.4) H x 5.0" (127) W.
1.95
(49.5)
.10
(104.1)
(2.5)
 5 DIGIT, 0.56" HIGH RED LED DISPLAY
 DISPLAYS °C OR °F WITH 1° OR 0.1° RESOLUTION
 BACKLIGHT OVERLAYS INCLUDED (°C AND °F)
 MAX AND MIN READING MEMORY
 TC COLD JUNCTION COMPENSATION (ON/OFF)
 PROGRAMMABLE TEMPERATURE OFFSET
 PROGRAMMABLE USER INPUT
 DUAL 5 AMP FORM C RELAYS
 UNIVERSALLY POWERED
 NEMA 4X/IP65 SEALED FRONT BEZEL
 THERMOCOUPLE AND RTD INPUTS
 CONFORMS TO ITS-90 STANDARDS

SAFETY SUMMARY

All safety regulations, local codes and instructions that appear in this and
corresponding literature, or on equipment, must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment connected to
it. If equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
Do not use this meter to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the meter
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.

SPECIFICATIONS

1. DISPLAY: 5 digit, 0.56" (14.2 mm) intensity adjustable Red LED
2. POWER REQUIREMENTS:
AC POWER: 50 to 250 VAC 50/60 Hz, 12 VA
Isolation: 2300 Vrms for 1 min. to all inputs and outputs
DC POWER: 21.6 to 250 VDC, 6 W
3. READOUT:
Display Range: -19999 to 99999
Scale: °F or °C
Resolution: 1° or 0.1°
Response Time: 500 msec min.
Display Overrange/Underrange Indication: "....." / "-...."
Input Overrange/Underrange Indication:  / 
1.75
(44.5)
4.10
1
Bulletin No. PAXLT-A
Drawing No. LP0750
Released 04/13
CAUTION: Risk of electric shock.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
3.60 (91.4)
