Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

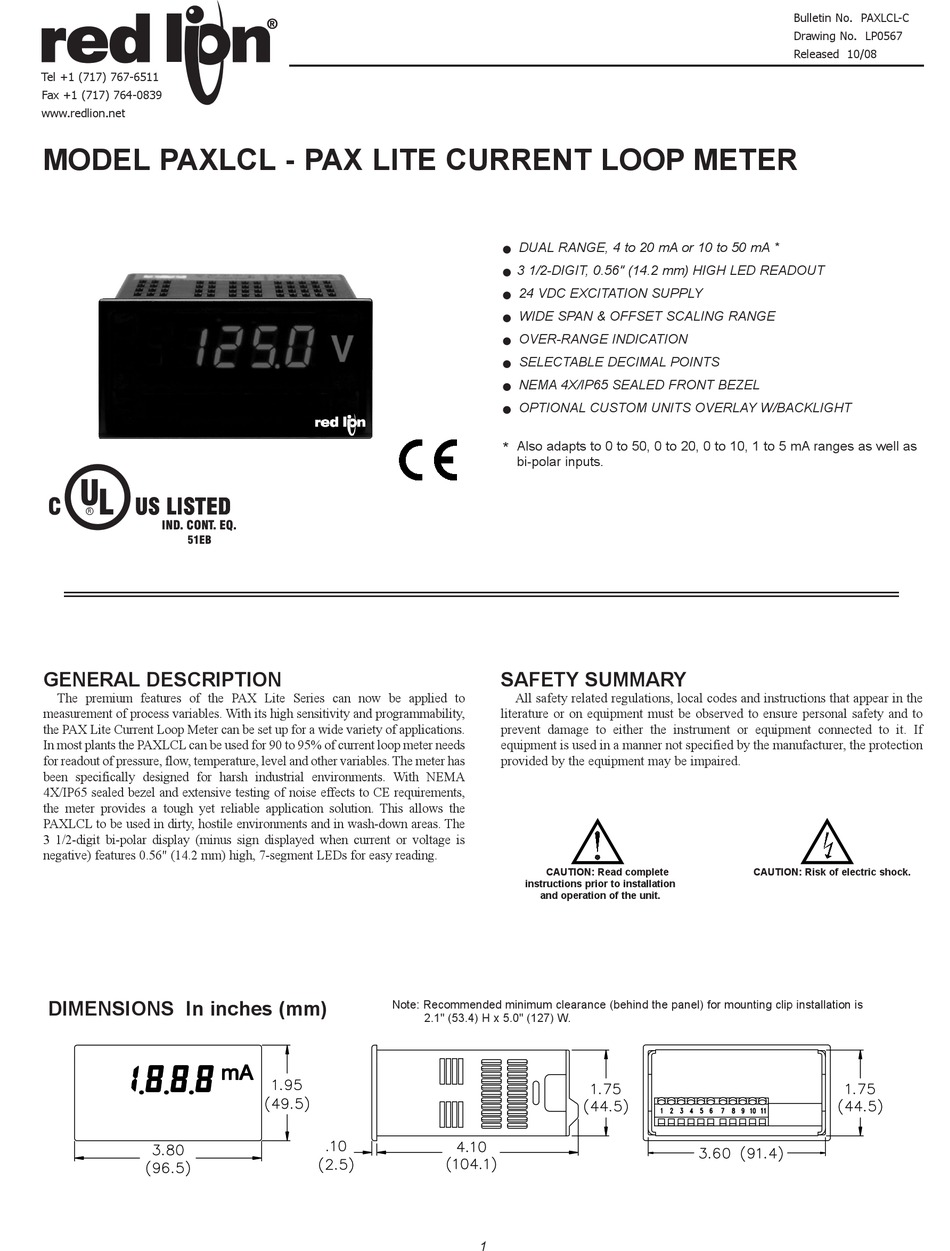

MODEL PAXLCL - PAX LITE CURRENT LOOP METER
U
L
C
US LISTED
US LISTED
4
IND. CONT . EQ.
51EB
GENERAL DESCRIPTION
The premium features of the PAX Lite Series can now be applied to
measurement of process variables. With its high sensitivity and programmability,
the PAX Lite Current Loop Meter can be set up for a wide variety of applications.
In most plants the PAXLCL can be used for 90 to 95% of current loop meter needs
for readout of pressure, flow, temperature, level and other variables. The meter has
been specifically designed for harsh industrial environments. With NEMA
4X/IP65 sealed bezel and extensive testing of noise effects to CE requirements,
the meter provides a tough yet reliable application solution. This allows the
PAXLCL to be used in dirty, hostile environments and in wash-down areas. The
3 1/2-digit bi-polar display (minus sign displayed when current or voltage is
negative) features 0.56" (14.2 mm) high, 7-segment LEDs for easy reading.
DIMENSIONS In inches (mm)
DUAL RANGE, 4 to 20 mA or 10 to 50 mA *
!
3 1/2-DIGIT, 0.56" (14.2 mm) HIGH LED READOUT
!
24 VDC EXCITATION SUPPLY
!
WIDE SPAN & OFFSET SCALING RANGE
!
OVER-RANGE INDICATION
!
SELECTABLE DECIMAL POINTS
!
NEMA 4X/IP65 SEALED FRONT BEZEL
!
OPTIONAL CUSTOM UNITS OVERLAY W/BACKLIGHT
!
*
Also adapts to 0 to 50, 0 to 20, 0 to 10, 1 to 5 mA ranges as well as
bi-polar inputs.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
CAUTION: Read complete
instructions prior to installation
and operation of the unit.
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is
2.1" (53.4) H x 5.0" (127) W.
1
Bulletin No. PAXLCL-C
Drawing No. LP0567
Released 10/08
CAUTION: Risk of electric shock.
