Inside US: +1 (877) 432-9908

Outside US: +1 (717) 767-6511
www.redlion.net

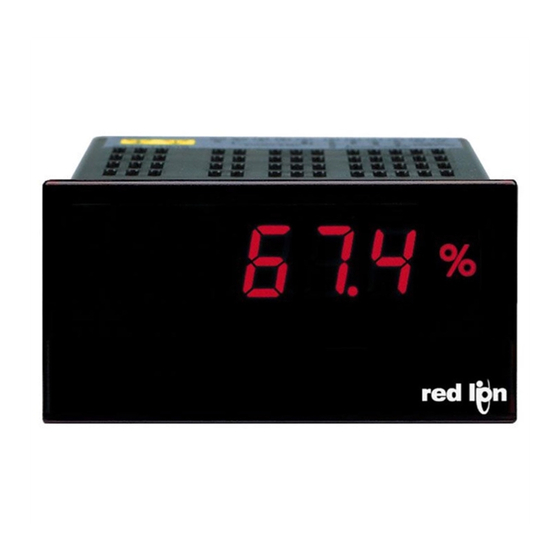

MODEL  PAXLCL ‐ PAX LITE CURRENT LOOP METER
U L
C
US LISTED
PROC. CONT. EQ.
E179259
GENERAL DESCRIPTION
The features of the PAX Lite Series can be applied to measurement of
process variables. With its high sensitivity and programmability, the PAX
Lite Current Loop Meter can be set up for a wide variety of applications.
The PAXLCL can be used for most current loop meter needs for readout
of pressure, flow, temperature, level and other variables. The meter has
been specifically designed for harsh industrial environments. With NEMA
4X/IP65 sealed bezel and extensive testing of noise effects to CE
requirements, the meter provides a tough yet reliable application solution.
This allows the PAXLCL to be used in dirty, hostile environments and in
wash-down areas. The 3 1/2-digit bi-polar display (minus sign displayed
when current or voltage is negative) features 0.56" (14.2 mm) high, 7-
segment LEDs for easy reading.
DIMENSIONS In inches (mm)
mA
3.80
(96.5)
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is
1.95
(49.5)
.10
(104.1)
(2.5)
DUAL RANGE, 4 to 20 mA or 10 to 50 mA *
•
3 1/2-DIGIT, 0.56" (14.2 mm) HIGH RED LED READOUT
•
•
24 VDC EXCITATION SUPPLY
WIDE SPAN & OFFSET SCALING RANGE
•
OVER-RANGE INDICATION
•
SELECTABLE DECIMAL POINTS
•
•
NEMA 4X/IP65 SEALED FRONT BEZEL
OPTIONAL CUSTOM UNITS OVERLAY W/BACKLIGHT
•
* Also adapts to 0 to 50, 0 to 20, 0 to 10, 1 to 5 mA ranges as well as
bi-polar inputs.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear
in the literature or on equipment must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment
connected to it. If equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be impaired.
CAUTION: Risk Of Danger.
Read complete instructions prior to
installation and operation of the unit.
2.1" (53.4) H x 5.0" (127) W.
1.75
(44.5)
4.10
-1-
Bulletin No. PAXLCL-E
Drawing No. LP0567
Released 2018-01-26
CAUTION: Risk of electric shock.
(44.5)
1 2 3 4
5 6
7
8 9 10
3.60 (91.4)
1.75

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAXLCL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for red lion PAXLCL Series

Summary of Contents for red lion PAXLCL Series

  • Page 1 Inside US: +1 (877) 432-9908 Bulletin No. PAXLCL-E   Outside US: +1 (717) 767-6511 Drawing No. LP0567 www.redlion.net Released 2018-01-26 MODEL  PAXLCL ‐ PAX LITE CURRENT LOOP METER  DUAL RANGE, 4 to 20 mA or 10 to 50 mA * • 3 1/2-DIGIT, 0.56" (14.2 mm) HIGH RED LED READOUT •...

  • Page 2: Table Of Contents

    Bulletin No. PAXLCL-E Released 2018-01-26   Drawing No. LP0567 TABLE OF CONTENTS Ordering Information ..............2 Wiring the Meter ............... 3 General Meter Specifications ........... 2 Scaling the Meter..............5 Accessories ................2 Calibrating the Meter..............6 Installing the Meter ..............3 Applications ................

  • Page 3: Installing The Meter

    Released 2018-01-26 Bulletin No. PAXLCL-E   Drawing No. LP0567 1.0 INSTALLING THE METER While holding the unit in place, push the panel latch over the rear of the INSTALLATION  unit so that the tabs of the panel latch engage in the slots on the case. The PAX meets NEMA 4X/IP65 requirements when properly installed.
  • Page 4 4. Long cable runs are more susceptible to EMI pickup than short cable Visit RLC’s web site at http://www.redlion.net/emi for more information runs. on EMI guidelines, Safety and CE issues as they relate to Red Lion Controls products. 3.1 POWER WIRING AC Power...

  • Page 5: Scaling The Meter

    Released 2018-01-26 Bulletin No. PAXLCL-E   Drawing No. LP0567 4.0 SCALING THE METER -V R PAXCL SCHEMATIC SUBTRACT OFFSET DIRECTION SWITCH S4 S3 S2 FINE OFFSET ADJUST BUFFER SPAN ADJUST DIGITAL DISPLAY -LOOP 2100 1050 4-20MA RANGE 5.5K -LOOP CURRENT SHUNT SPAN=150 RESISTORS 10-50MA RANGE FINE SPAN ADJ.

  • Page 6: Calibrating The Meter

    (1000 in this example). The following chart gives an approximate span adjustment value for each switch: TROUBLESHOOTING If for any reason you have trouble operating, connecting, or simply SWITCH NUMBER SPAN VALUE have questions concerning your new unit, contact Red Lion’s technical 2100 support. 1050 Email: support@redlion.net Website: www.redlion.net...

  • Page 7: Applications

    Released 2018-01-26 Bulletin No. PAXLCL-E   Drawing No. LP0567 6.0 APPLICATIONS Example 1: A PAXLCL is to be calibrated to match a flow transducer whose output is 10 mA @ 0 GPM and 50 mA @ 1375 GPM. READOUT SPAN (Rs) = 1375 - 0 = 1375 Example 3 (± Display): SWING CURRENT (Is) = 50 mA - 10 mA = 40 mA A differential pressure transducer has a range of ±1500 PSI with a 4 to...
  • Page 8 Drawing No. LP0567 LIMITED WARRANTY (a) Red Lion Controls Inc, (the “Company”) warrants that all Products shall be free from defects in material and workmanship under normal use for the period of time provided in “Statement of Warranty Periods” (available at www.redlion.net) current at the time of shipment of the Products (the “Warranty Period”).
