Status Screens

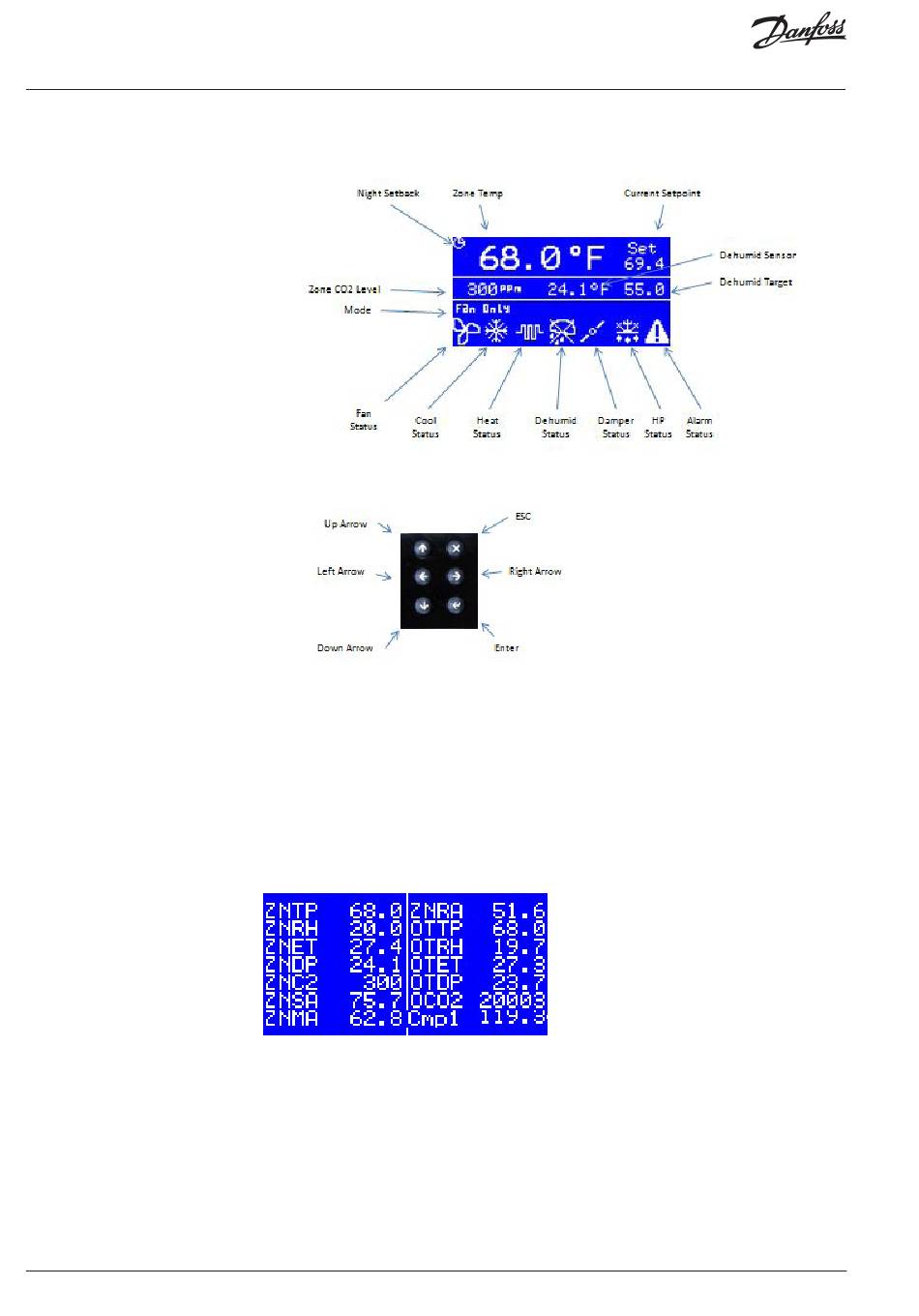

Main Status Screen
© Danfoss | ADAP-KOOL® | 2018.11
What the keys do on the Main Status Screen
Enter
– Parameter Screen
ESC
– Current Alarms
Down Arrow
– Current Sensor Values
Left Arrow
– Broadcast Sensor Values Received
Access Current Sensor Values from Main Status Screen using the Down Arrow button.
Current Sensor Screen
ZNTP – Zone Temp
ZNRH – Zone RH
ZNET – Zone Enthalpy
ZNDP – Zone Dewpoint
ZNC2 – Zone CO2 Level
ZNSA – Supply Air Temp
ZNMA – Mixed Air Temp
Sensor Error Values
20000 = Sensor Open
20001 = Sensor Short
20002 = Broadcast Value Not Updating
20003 = Sensor Disabled
ZNRA – Return Air Temp
OTTP – Outdoor Temp
OTRH – Outdoor RH
OTET – Outdoor Enthalpy
OTDP – Outdoor Dewpoint
OCO2 – Outdoor CO2
Cmp1 – Compr 1 Suction Pressure
