3.

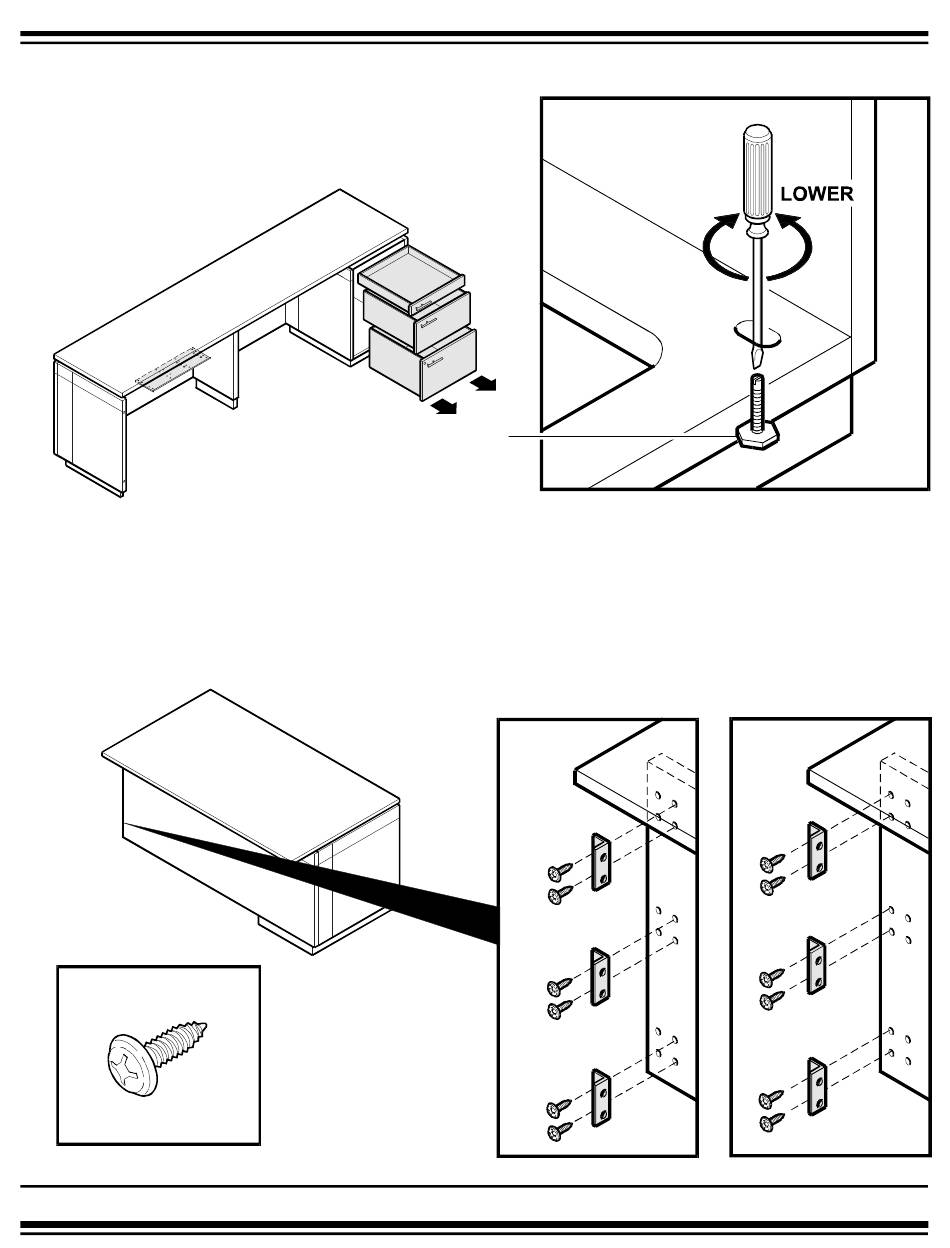

Level the glides on the existing unit and
the run-off to make sure both units are
aligned properly. To access glides,
remove drawers.
4.
Attach three (3) brackets into pre-located holes on modesty panel using six (6) #8 pan head
wood screws 1/2" long.
and use the back position holes for attaching to a pedestal.
Page 7 of 15
GLIDE
NOTE:
When attaching with an end panel, use the forward position holes
Steelcase
RAISE
Attaching to
End panel
(forward position
go to page 8)
Attaching to
Pedestal
(back position
go to page 12)
Y9501889
