Summary of Contents for Steelcase Tableau

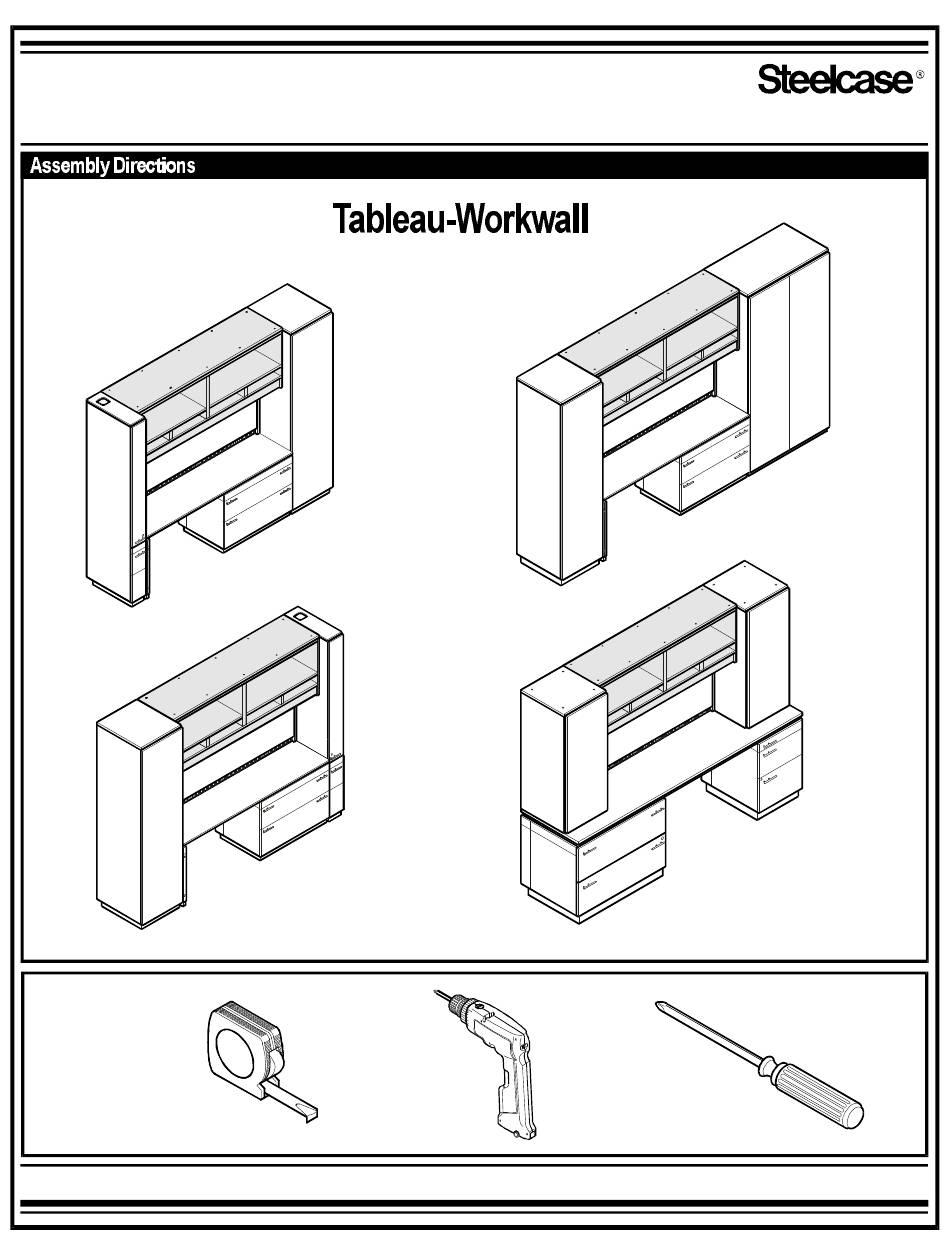

- Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 Tools Page 1 of 10 REV B Y9501893...
- Page 2 Workwall Workwall Workwall short doors without doors tall doors Steelcase Page 2 of 10 Y9501893...
- Page 3 . NOTE: Right side vertical cabinet is not shown for clarity. Steelcase Page 3 of 10 Y9501893...
- Page 4 With tack panel frame in place, attach to credenza using two (2) 3/4” long pan head screws. Insert the screws through the attached bracket. Repeat procedure for other side of tack board frame. Steelcase Page 4 of 10 Y9501893...
- Page 5 Use caution while setting cabinet into place. Steelcase Page 5 of 10 Y9501893...
- Page 6 Attach workwall to vertical cabinet. Attach on inside of workwall u sing six (6) #8 1-1/2” long flat countersunk head wood screws. Repeat procedure for other side. Steelcase Page 6 of 10 Y9501893...
- Page 7 Attach workwall to tack panel frame end using the supplied flat bracket. Attach on inside of tack board frame and work wall using two (2) #8 3/4” long flat countersunk head wood screws. Repeat procedure for other side. Steelcase Page 7 of 10 Y9501893...
- Page 8 (Fig. 1). Turn tackboard around and insert onto the tackboard frame (Fig. 2). NOTE: Upper unit not shown for clarity. Fig. 1 VELCRO Fig. 2 BRACKETS must rest on tackboard frame BACK OF TACK PANEL Steelcase Page 8 of 10 Y9501893...
- Page 9 (Fig. 1). Turn tackboard over and insert onto the top of the tackboard frame (Fig. 2). NOTE: Upper unit not shown for clarity. Fig. 2 Fig. 1 VELCRO HANG CLIPS BRACKETS must rest on tackboard frame HANG CLIPS BACKSIDE OF SLATWALL VELCRO Steelcase Page 9 of 10 Y9501893...
- Page 10 Adjust door hinges. DOOR Rear Screw- Middle Screw- Front Screw- Up/Down In/Out Side to Side Steelcase Page 10 of 10 Y9501893...
