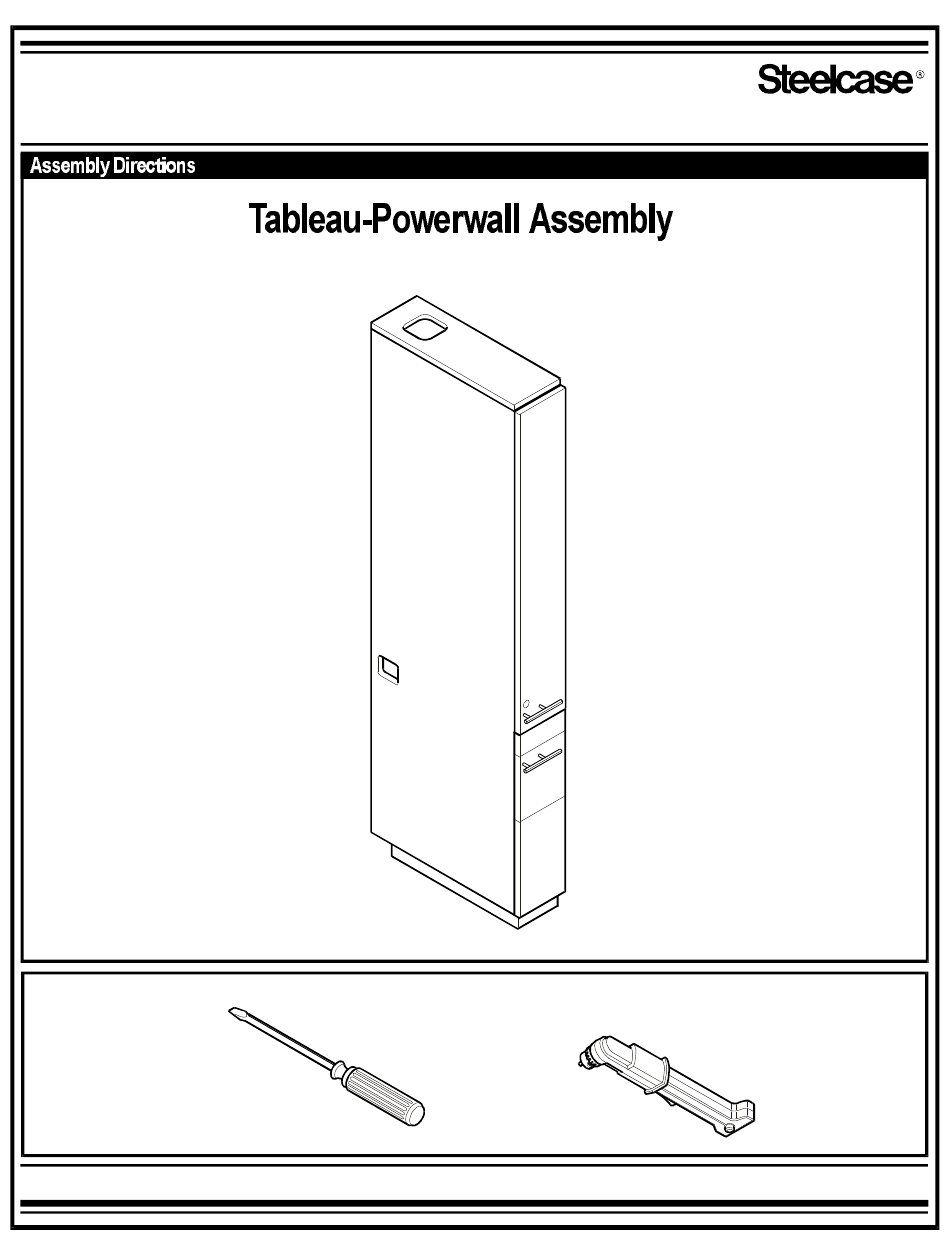

- Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 Note: Powerwall assembly RH is shown. Tools Angle Drill Page 1 of 6 REV B Y9501888...
- Page 2 Slide power wall so it is flush with side of adjacent unit (fig. 1). Open door for glide adjustment. Level unit by adjusting glides (fig. 2). Fig. 2 Fig. 1 LOWER RAISE GLIDE Steelcase Page 2 of 6 Y9501888...
- Page 3 Using six (6) #8 pan head screws 1-1/4” long, attach power wall to adjacent unit using the six (6) pre-drilled holes on the power wall. NOTE: To tighten screws, use an angle drill. Attaching screws to an adjacent unit Steelcase Page 3 of 6 Y9501888...
- Page 4 Adjust door hinges. DOOR Rear Screw- Middle Screw- Front Screw- Up/Down In/Out Side to Side Steelcase Page 4 of 6 Y9501888...
- Page 5 To begin installation of wire hanging Place basket down upon the two (2) Baskets, pull out the top door panel. support hooks. WIRE BASKET The basket (once engaged) should fit snugly onto the hook as shown below. HOOK Steelcase Page 5 of 6 Y9501888...
- Page 6 Install the remaining two (2) baskets repeating the procedure discussed in step 4. NOTE: Top door removed for clarity. Steelcase Page 6 of 6 Y9501888...
