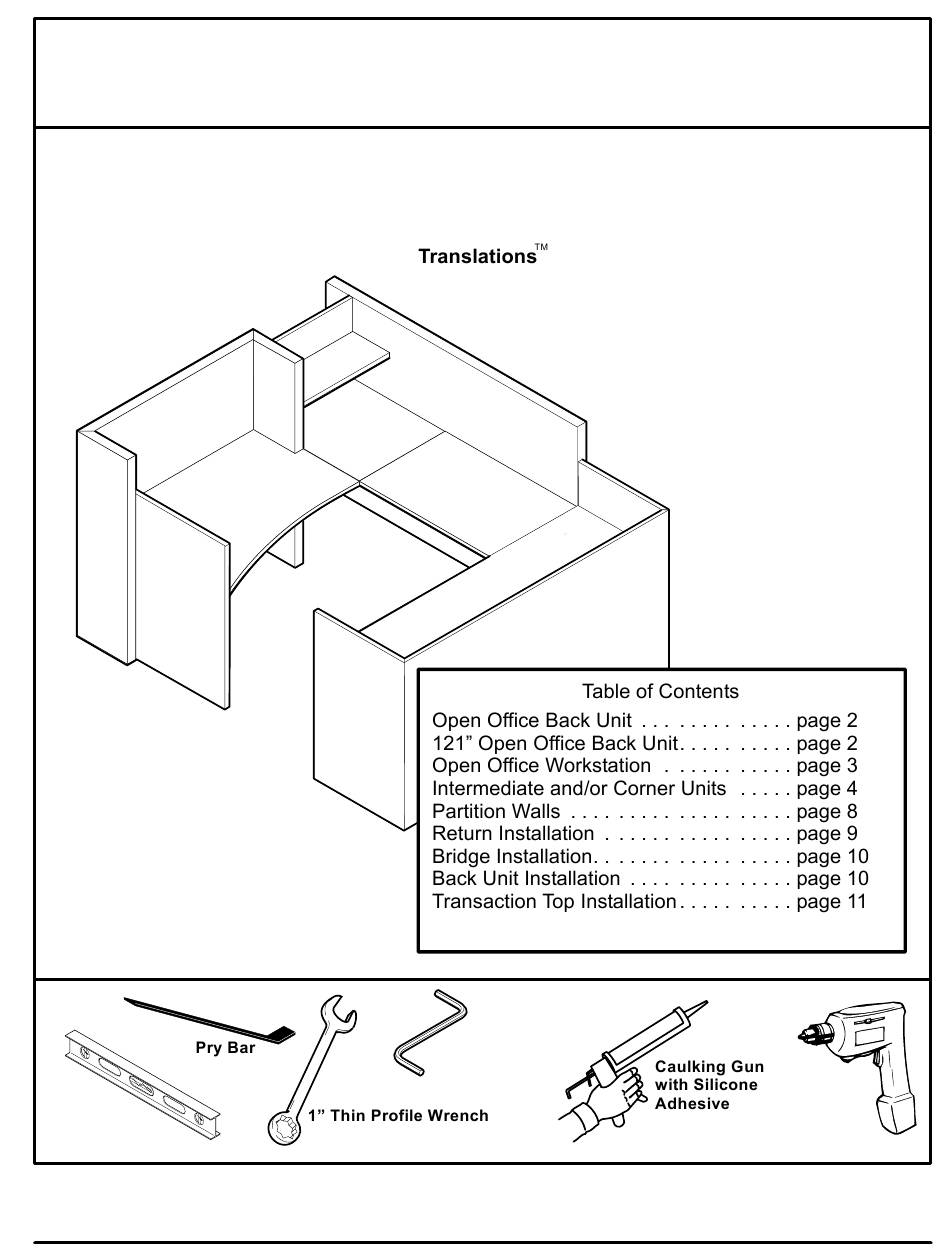

Open Workstation Installation
Tools
Level
Assembly Directions
"S" shaped 7mm
Allen wrench
(provided)
Printed in U.S.A.
Steelcase
®
Power Driver
with phillips
and/or square tip
REV
Y9501911 A
Page 1 of 11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Translations Open Workstation
Summary of Contents for Steelcase Translations Open Workstation
- Page 1 Steelcase Steelcase, Inc. ® Grand Rapids, MI 49501 U.S.A. 888-783-3522 Open Workstation Installation Tools “S” shaped 7mm Allen wrench (provided) Power Driver Level with phillips and/or square tip Assembly Directions Printed in U.S.A. Y9501911 A Page 1 of 11...
- Page 2 Using 3/4” WH screws, install all 8” angle brackets inside routs in back and end panels. Brackets should be positioned at top edge of routs. Join back assemblies by engaging bed-rail fasteners. Assembly Directions Page Steelcase Y9501911 REV A 2 of 11...
- Page 3 Begin installation by installing levelers and then leveling End Unit. Leveler adjustment can be aided by use of pry bar to take weight off leveler while adjustment is made. LEVELER PRY BAR 1” WRENCH Assembly Directions Page Steelcase Y9501911 REV A 3 of 11...
- Page 4 OPEN-OFFICE WORKSTATION TYPICAL INSTALLATION (continued) *Note: Step 2 shows disassembly of end unit. Re-assembly is simply a reversal of the following steps. To facilitate handling, End Unit may be partially disassembled. A. Remove all 3/4” screws from angle brackets that support worksurface. Leave angle brackets attached to ends, back, etc.
- Page 5 When Gyro fasteners are located on right side, turn clockwise to tighten. WOODEN BISCUIT Insert appropriate number of wooden biscuits into worktop and fit against End Unit top. Assembly Directions Page Steelcase Y9501911 REV A 5 of 11...
- Page 6 This step is for Intermediate Units only. Install support leg with 3/4” screws through angle bracket and into top. Position support leg tightly against back panel and aligned with top as shown in Fig. A. Assembly Directions Page Steelcase Y9501911 REV A 6 of 11...
- Page 7 Modeez fastener shown in locked position. METAL ANGLE ACCENT 8x1/2” LEDGE UPRIGHT SCREWS 1/8” 8x2” SCREWS METAL ANGLE ACCENT Install metal angle accent as shown. Install ledge upright as shown. Assembly Directions Page Steelcase Y9501911 REV A 7 of 11...
- Page 8 Unit so that Gyro fasteners align with locking plates. Levelers may need to be adjusted to aid alignment. Turn Gyros clockwise to lock. If installing return, install minifix screws in partion wall, as shown. Assembly Directions Page Steelcase Y9501911 REV A 8 of 11...
-
Page 9: Angle Brackets
Return’s end panel to clear minifix screws in Partition Wall (A). Now push Return end panel against Partiton Wall to engage minifix cams and screws (B). Tighten minifix cams. Install screws to secure Partition Wall and Support Leg angle brackets. Assembly Directions Page Steelcase Y9501911 REV A 9 of 11... - Page 10 Partition Wall. The Back Unit’s inside edge should be flush with inner edge of the Partition Wall. Once aligned, install 3/4” screws through support leg angle bracket and into the worksurface of the Back Unit. Level Back Unit as necessary. Assembly Directions Page Steelcase 10 of 11 Y9501911 REV A...
- Page 11 Note: excessive amount of adhesive may cause uneven placement of top panel. Carefully lower stone top panel onto subtop assembly and align edges so they are flush. Assembly Directions Page Steelcase Y9501911 REV A 11 of 11...
