Recommended Solders
Kester "245" No-clean core solder,
Alpha Metals "Telecore Plus" solder,
Multicore "X39B" No-clean solder,
or equivalent.
Recommended Solder Temperature
315°C (600°F)

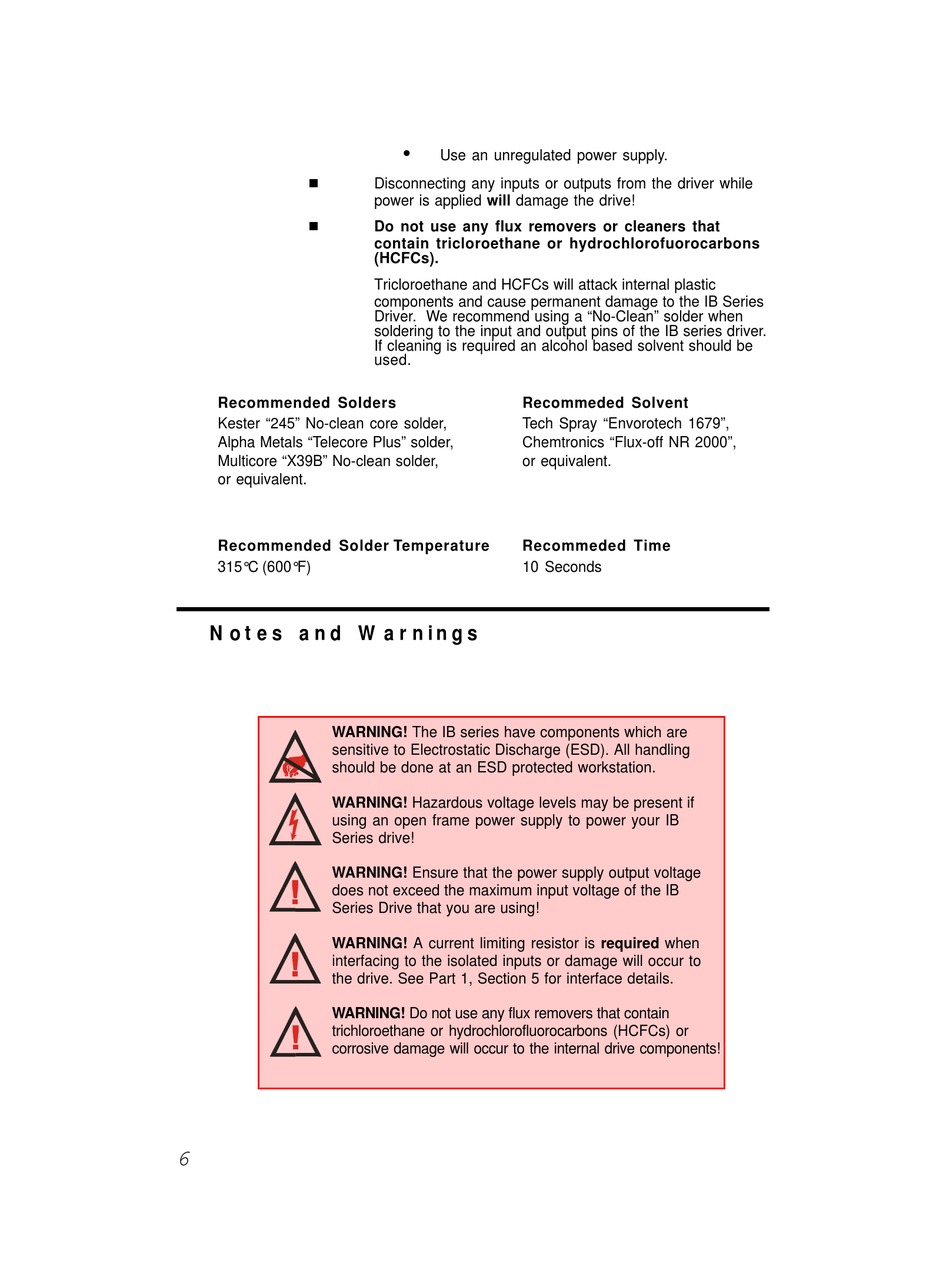

N o t e s a n d W a r n i n g s
WARNING! The IB series have components which are
sensitive to Electrostatic Discharge (ESD). All handling
should be done at an ESD protected workstation.
WARNING! Hazardous voltage levels may be present if
using an open frame power supply to power your IB
Series drive!
WARNING! Ensure that the power supply output voltage
does not exceed the maximum input voltage of the IB
Series Drive that you are using!
WARNING! A current limiting resistor is required when
interfacing to the isolated inputs or damage will occur to
the drive. See Part 1, Section 5 for interface details.
WARNING! Do not use any flux removers that contain
trichloroethane or hydrochlorofluorocarbons (HCFCs) or
corrosive damage will occur to the internal drive components!
6
•
Use an unregulated power supply.
Disconnecting any inputs or outputs from the driver while
power is applied will damage the drive!
Do not use any flux removers or cleaners that
contain tricloroethane or hydrochlorofuorocarbons
(HCFCs).
Tricloroethane and HCFCs will attack internal plastic
components and cause permanent damage to the IB Series
Driver. We recommend using a "No-Clean" solder when
soldering to the input and output pins of the IB series driver.
If cleaning is required an alcohol based solvent should be
used.
Recommeded Solvent
Tech Spray "Envorotech 1679",
Chemtronics "Flux-off NR 2000",
or equivalent.
Recommeded Time
10 Seconds
