Figure 2.5.1 Ib1010 Dimensions; Section 2.5: Ib1010 - Intelligent Motion Systems IB Series Operating Instructions Manual

S e c t i o n 2 . 5
S e c t i o n O v e r v i e w
This section includes the hardware specifications of the IB1010.
!
!
!
!
!
!
!
M e c h a n i c a l S p e c i f i c a t i o n s
4.96
(126.0)
0.188
(4.8)
0.95
(24.1)
ENABLE PHASE A
LOGIC
PHASE A
GROUND
H /F PHASE B
STEP
PHASE B
CLOCK
CW /CCW V+
CURRENT
GROUND
ADJUST
0.10
(2.54)
0.27
1.47
(6.86)
(37.3)
58
Mechanical Specifications.
Electrical Specifications.
Thermal Specifications.
Current Adjust Resistor Values.
Recommended IMS Power Supplies.
Recommended IMS Motors.
Options and Accessories.
1.00
(25.4)
0.28
(7.1)
2.90
(73.7)
0.02
(0.51)
3.95
(100.3)
1.25
(31.8)

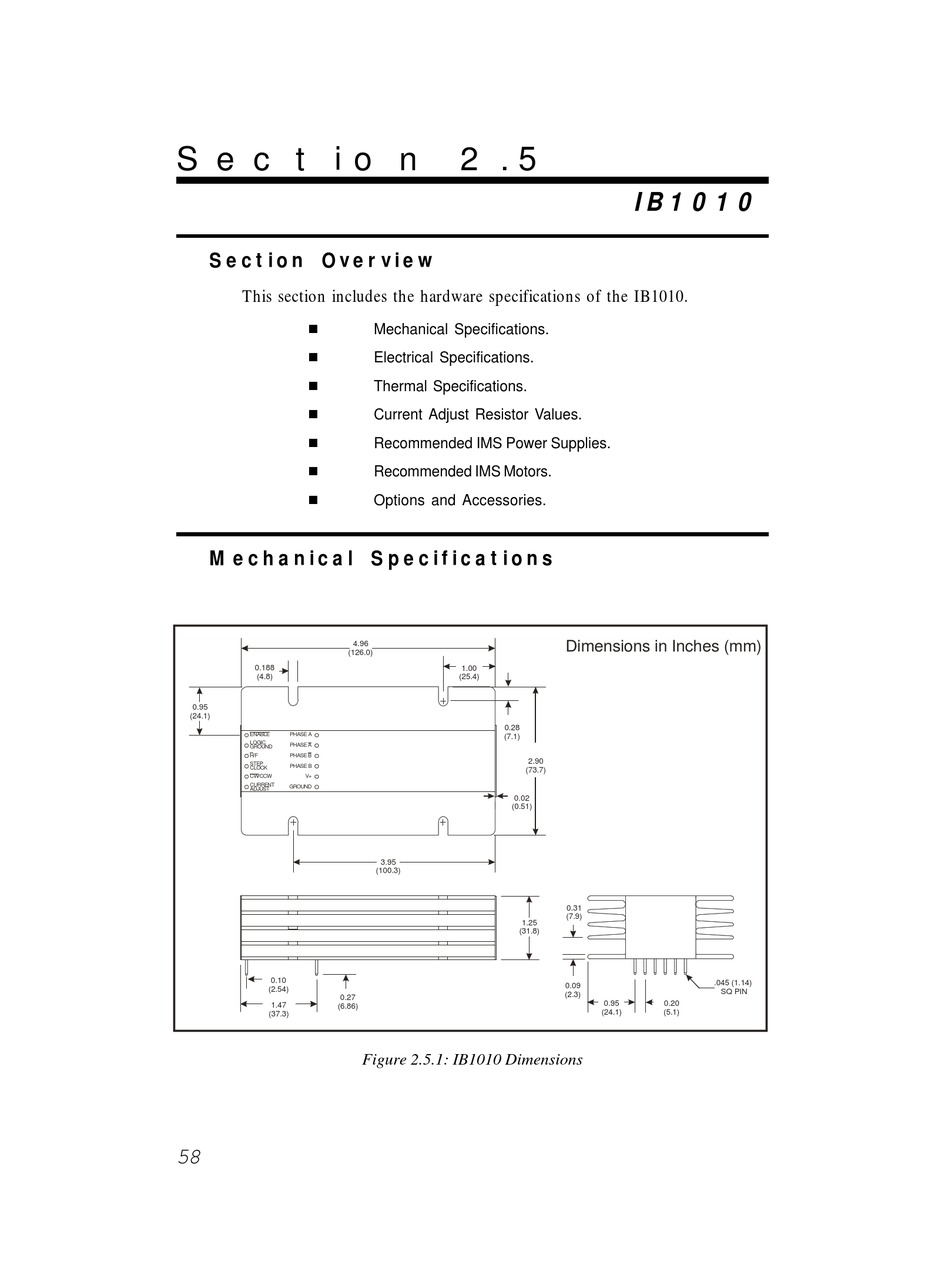

Figure 2.5.1: IB1010 Dimensions
I B 1 0 1 0
Dimensions in Inches (mm)
0.31
(7.9)
.045 (1.14)
0.09
SQ PIN
(2.3)
0.95 0.20
(24.1) (5.1)
