A p p e n d i x A
O p t i o n a l I n t e r f a c e B o a r d
D e t e r m i n i n g t h e R e s i s t o r V a l u e s
S e t t i n g t h e O u t p u t C u r r e n t
To set the output current on the IB series drive using the OPT140 board
you will need to place R4 (See Figure A.1 below for resistor location). The
value resistor needed will match the resistor table for the model IB drive
you purchased.
Reduction
Adjust
Current
Adjust
The OPT140 adds such features to the IB series
drive as:
! A Removable Screw Terminal Interface.
! Isolated Current Reduction.
! 470Ω Pull-up Resistors on Logic Inputs.
! Input Capacitor.
3.00
(76.2)
1 2 3 4 5 6 7 8 9 10 11 12 13 14
P1
R5
R1
Q1
R4
IMS OPT140

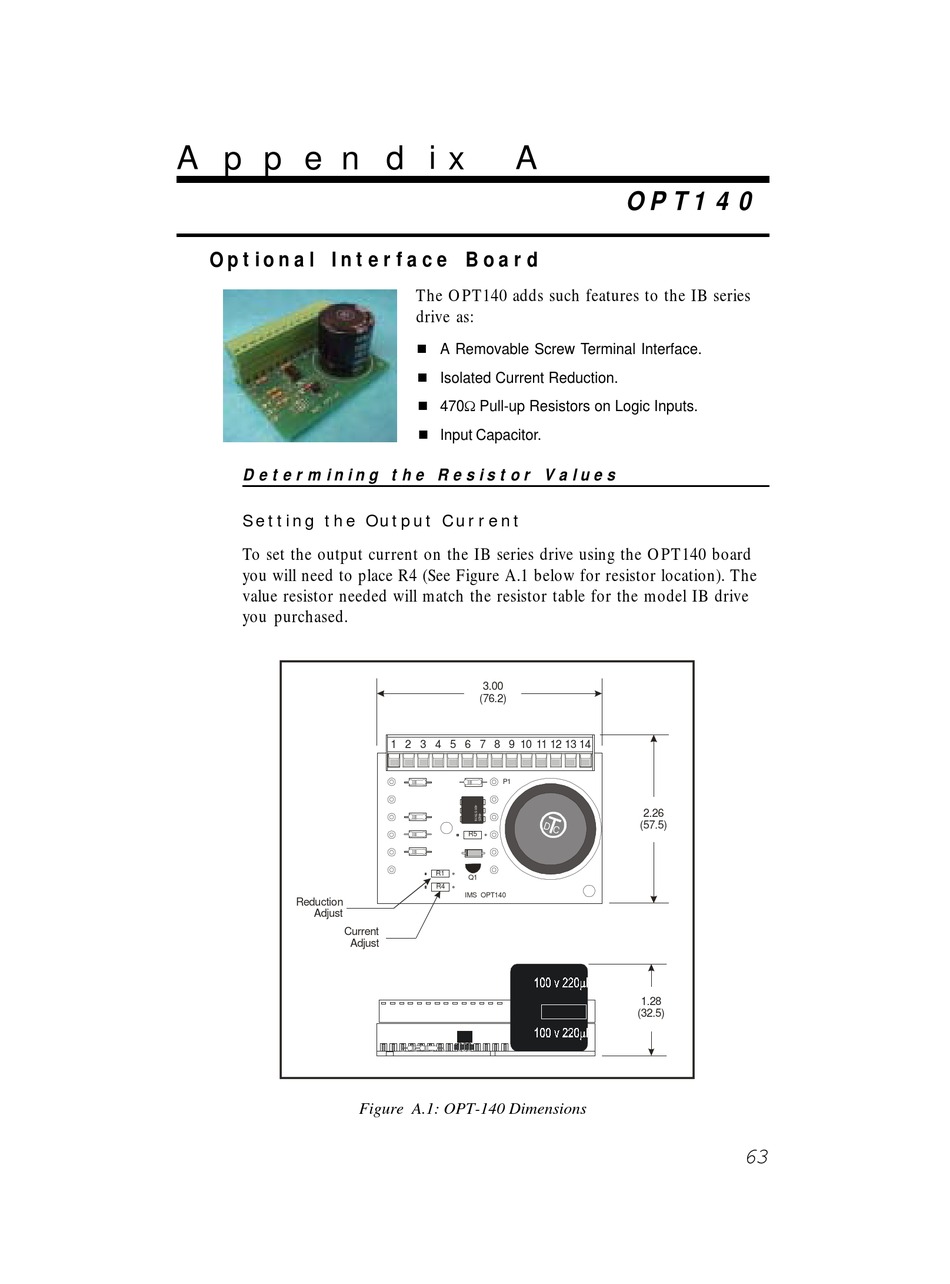

Figure A.1: OPT-140 Dimensions
O P T 1 4 0
2.26
(57.5)
1.28
(32.5)
63
