Figure 2.2.1 Ib463 Dimensions; Section 2.2: Ib463 - Intelligent Motion Systems IB Series Operating Instructions Manual

S e c t i o n 2 . 2
S e c t i o n O v e r v i e w
This section includes the hardware specifications of the IB463.
!
!
!
!
!
!
!
M e c h a n i c a l S p e c i f i c a t i o n s
0.19
(4.8)
1.375
(34.93)
0.02
(.51)
0.31
(7.9)
0.09
(2.3)
0.95
(24.1)
Mechanical Specifications.
Electrical Specifications.
Thermal Specifications.
Current Adjust Resistor Values.
Recommended IMS Power Supplies.
Recommended IMS Motors.
Options and Accessories.
2.90
(73.7)
.47
(11.9)
1.770
(44.96)
0.28
(7.1)
.045 (1.14)
SQ. PIN
0.20
(5.10)

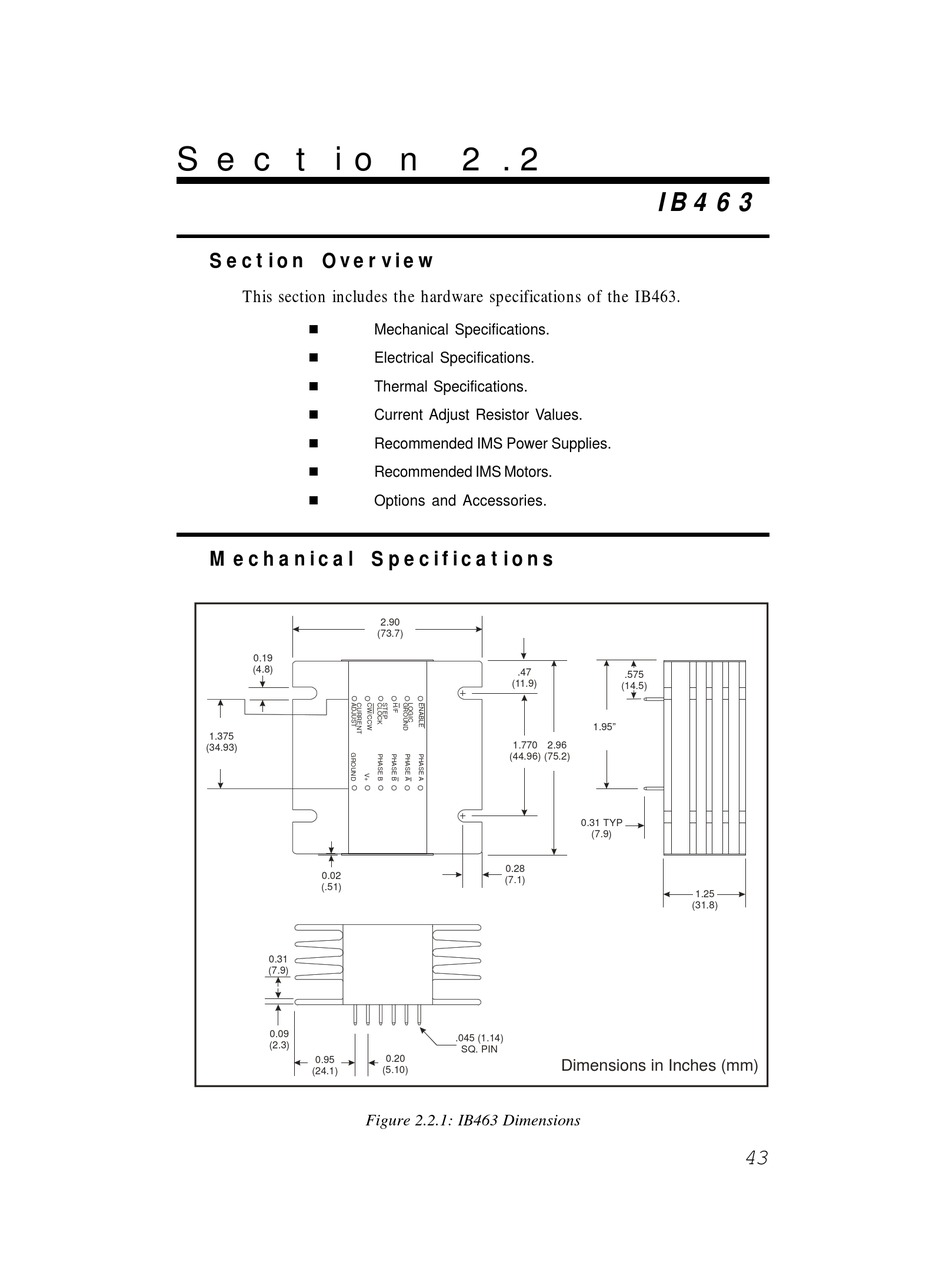

Figure 2.2.1: IB463 Dimensions
I B 4 6 3
.575
(14.5)
1.95"
2.96
(75.2)
0.31 TYP
(7.9)
1.25
(31.8)
Dimensions in Inches (mm)
