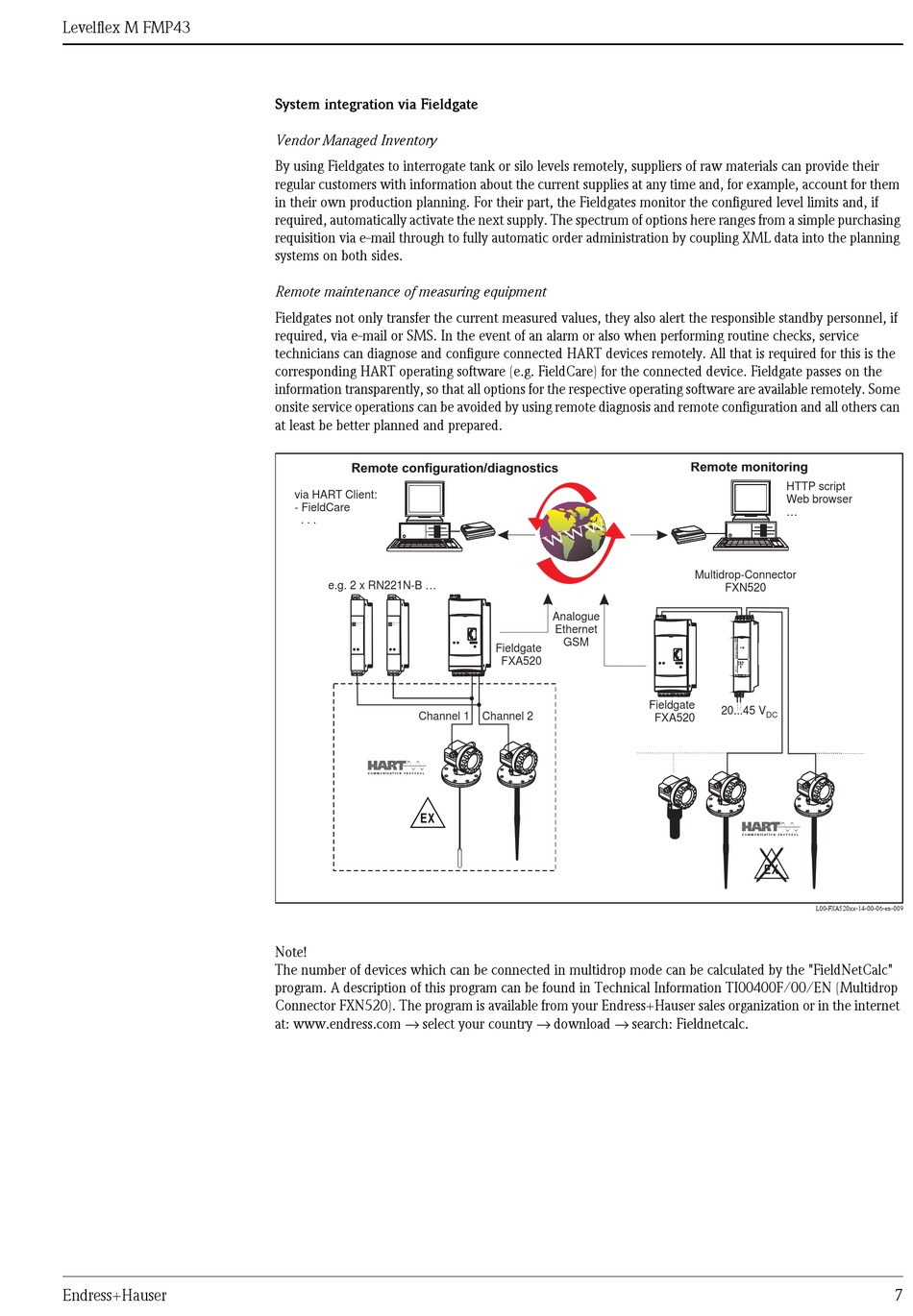

System integration via Fieldgate
Vendor Managed Inventory
By using Fieldgates to interrogate tank or silo levels remotely, suppliers of raw materials can provide their
regular customers with information about the current supplies at any time and, for example, account for them
in their own production planning. For their part, the Fieldgates monitor the configured level limits and, if
required, automatically activate the next supply. The spectrum of options here ranges from a simple purchasing
requisition via e-mail through to fully automatic order administration by coupling XML data into the planning
systems on both sides.
Remote maintenance of measuring equipment
Fieldgates not only transfer the current measured values, they also alert the responsible standby personnel, if
required, via e-mail or SMS. In the event of an alarm or also when performing routine checks, service
technicians can diagnose and configure connected HART devices remotely. All that is required for this is the
corresponding HART operating software (e.g. FieldCare) for the connected device. Fieldgate passes on the
information transparently, so that all options for the respective operating software are available remotely. Some
onsite service operations can be avoided by using remote diagnosis and remote configuration and all others can
at least be better planned and prepared.
Remote configuration/diagnostics
via HART Client:
- FieldCare
. . .
e.g. 2 x RN221N-B ...
ENDRESS+HAUSER ENDRESS+HAUSER
RN 221N RN 221N
Channel 1
-
Note!
The number of devices which can be connected in multidrop mode can be calculated by the "FieldNetCalc"
program. A description of this program can be found in Technical Information TI00400F/00/EN (Multidrop
Connector FXN520). The program is available from your Endress+Hauser sales organization or in the internet
at: www.endress.com → select your country → download → search: Fieldnetcalc.
Analogue
Ethernet
GSM
Fieldgate
FXA520
Fieldgate
Channel 2
Remote monitoring
HTTP script
Web browser
...
Multidrop-Connector
FXN520
20...45 V
DC
FXA520
.
L00-FXA520xx-14-00-06-en-009
