Onsite operation
36

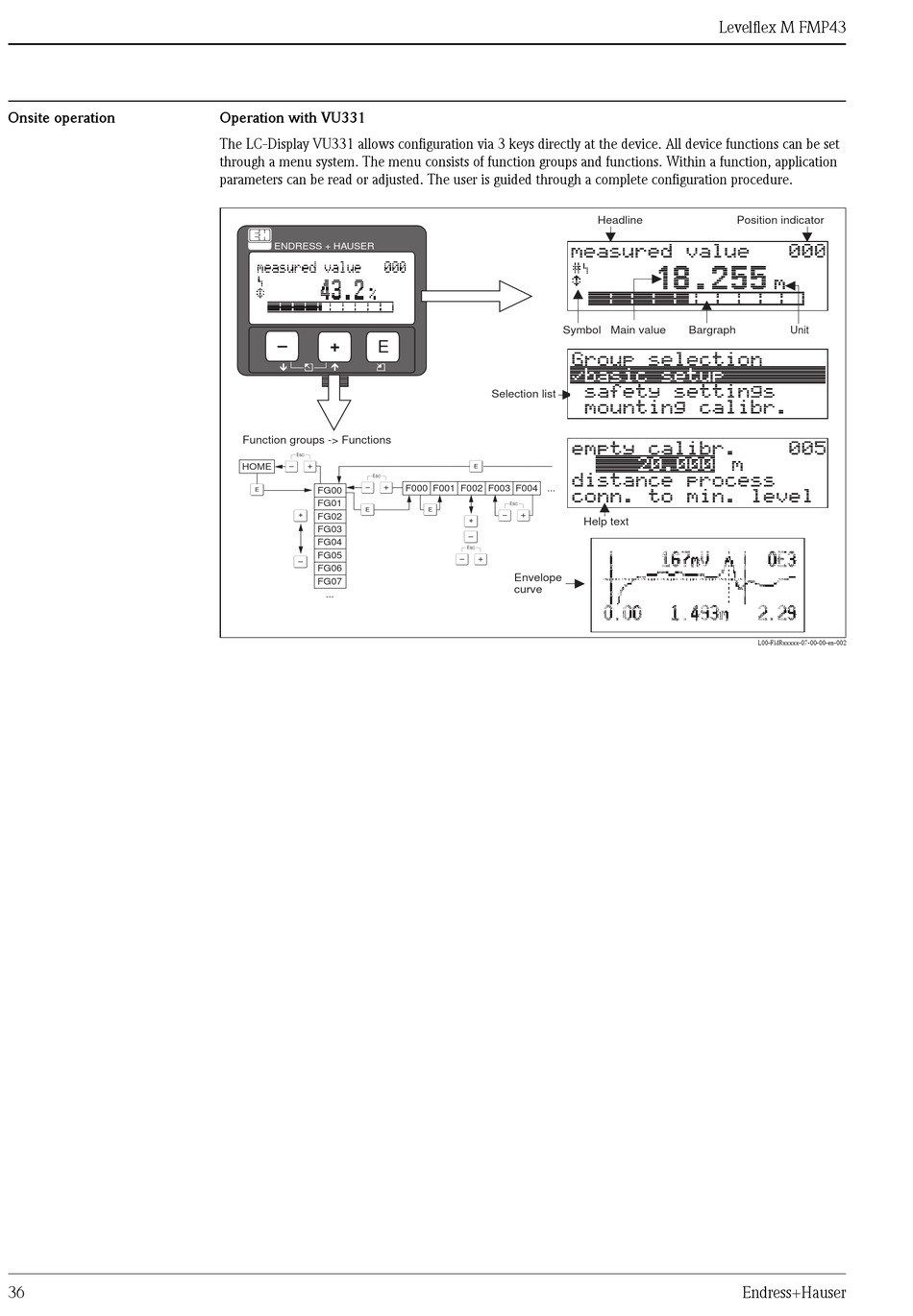

Operation with VU331
The LC-Display VU331 allows configuration via 3 keys directly at the device. All device functions can be set
through a menu system. The menu consists of function groups and functions. Within a function, application
parameters can be read or adjusted. The user is guided through a complete configuration procedure.
ENDRESS + HAUSER
–
+
E
Function groups -> Functions
X
HOME
X
F
FG00
FG01
F
O
FG02
FG03
FG04
FG05
S
FG06
FG07
...
Symbol
Selection list
F
F000 F001 F002 F003 F004 ...
X
F
O
S
X
Envelope
curve
Levelflex M FMP43
Headline
Position indicator
Main value
Bargraph
Help text
Endress+Hauser
Unit
L00-FMRxxxxx-07-00-00-en-002
