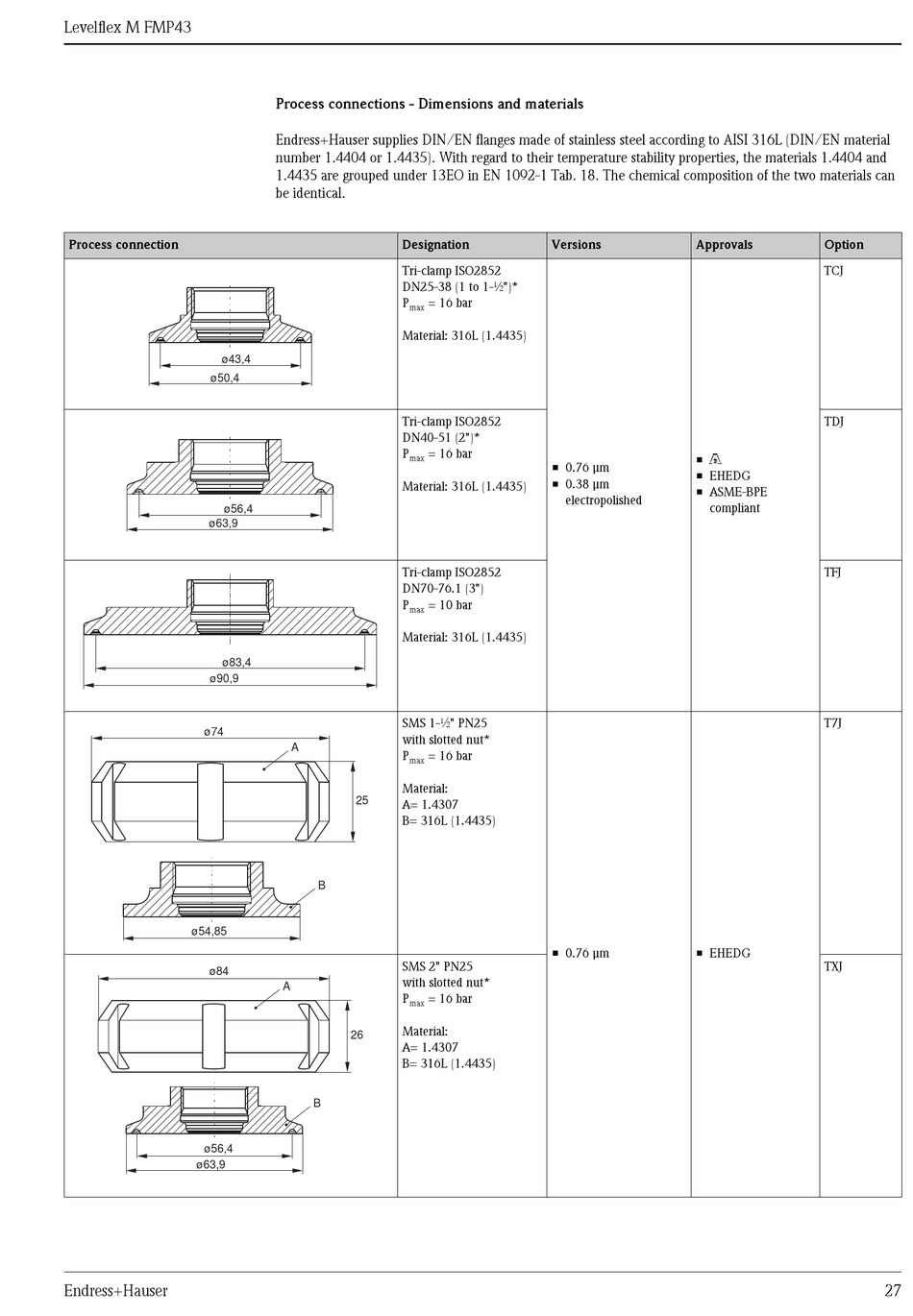

Process connections - Dimensions and materials
Endress+Hauser supplies DIN/EN flanges made of stainless steel according to AISI 316L (DIN/EN material
number 1.4404 or 1.4435). With regard to their temperature stability properties, the materials 1.4404 and
1.4435 are grouped under 13EO in EN 1092-1 Tab. 18. The chemical composition of the two materials can
be identical.
Designation
Tri-clamp ISO2852
DN25-38 (1 to 1-½")*
P
= 16 bar
max
Material: 316L (1.4435)
Tri-clamp ISO2852
DN40-51 (2")*
P
= 16 bar
max
Material: 316L (1.4435)
Tri-clamp ISO2852
DN70-76.1 (3")
P
= 10 bar
max
Material: 316L (1.4435)
SMS 1-½" PN25
with slotted nut*
A
P
= 16 bar
max
Material:
25
A= 1.4307
B= 316L (1.4435)
B
SMS 2" PN25
with slotted nut*
A
P
= 16 bar
max
Material:
26
A= 1.4307
B= 316L (1.4435)
B
Versions
Approvals
• 5
• 0.76 μm
• EHEDG
• 0.38 μm
• ASME-BPE
electropolished
compliant
• 0.76 μm
• EHEDG
Option
TCJ
TDJ
TFJ
T7J
TXJ
27
