Removing an SFP or SFP+ Module

Step 1
Step 2
Step 3
Step 4
Step 5
78-17572-04

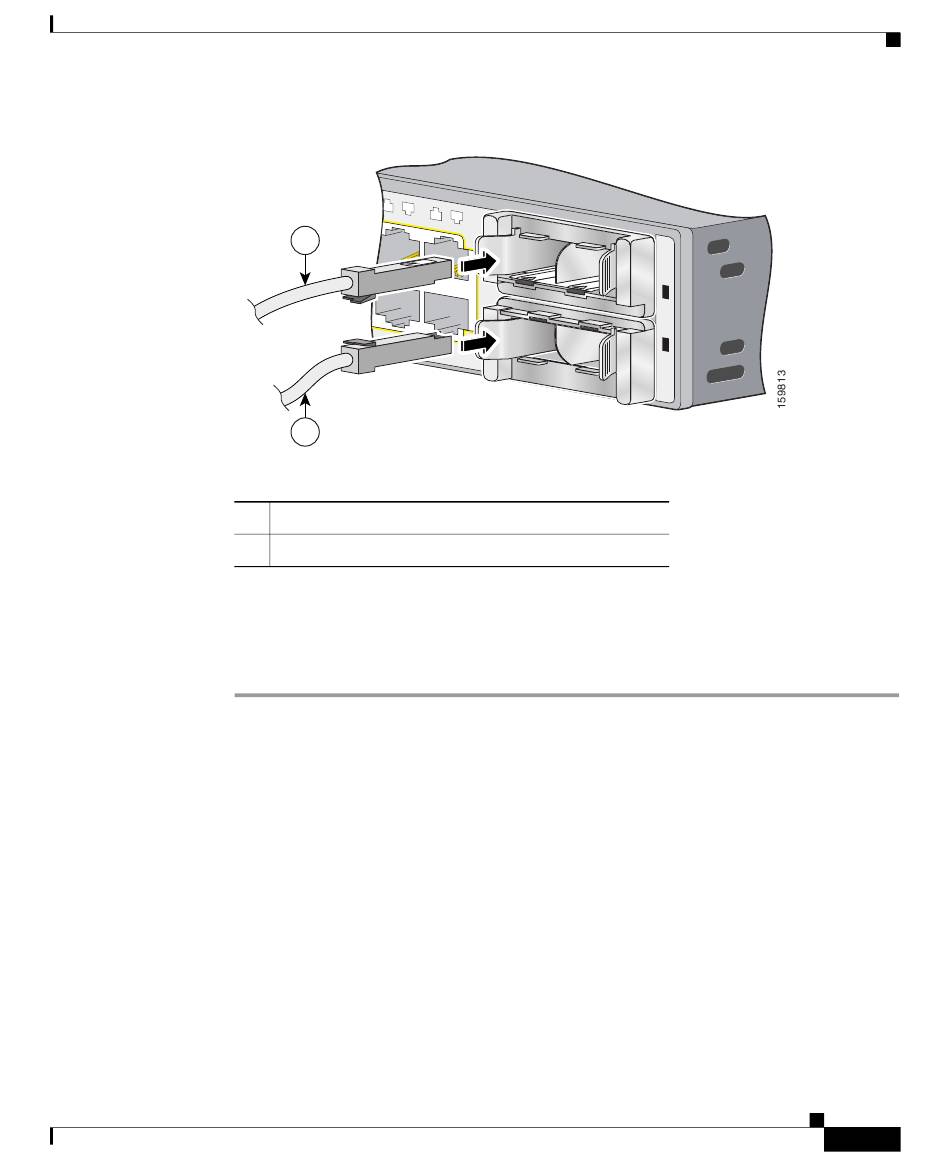

Figure 6
SFP Patch Cable Installation (TwinGig Shown)
4 5
4 6
1
t 3 7 5 0 -
E
2
1
Patch cable inserted face up
2
Patch cable inserted face down
To remove an SFP or SFP+ module from the converter module, follow these steps:
Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
Disconnect the cable from the SFP or SFP+ module. For reattachment, note which
cable connector plug is send (TX) and which is receive (RX).
Insert a dust plug into the optical ports of the SFP or SFP+ module to keep the
optical interfaces clean.
If the SFP or SFP+ module has a bale-clasp latch, pull the bale out and down to
eject the module. If the bale-clasp latch is obstructed and you cannot use your
index finger to open it, use a small, flat-blade screwdriver or other long, narrow
instrument to open the bale-clasp latch.
Grasp the SFP or SFP+ module, and carefully remove it from the converter
module.
Installation Notes for the Cisco TwinGig and OneX Converter Modules
4 7
4 8
4 7 X
4 9
X 2 -1
X 2 -2
5 1
4 8 X
S E R IE S
P o E - 4 8
Converter Module Installation
5 0
5 2
15
