Nava Buffet
Assembly Instructions
15
J
K

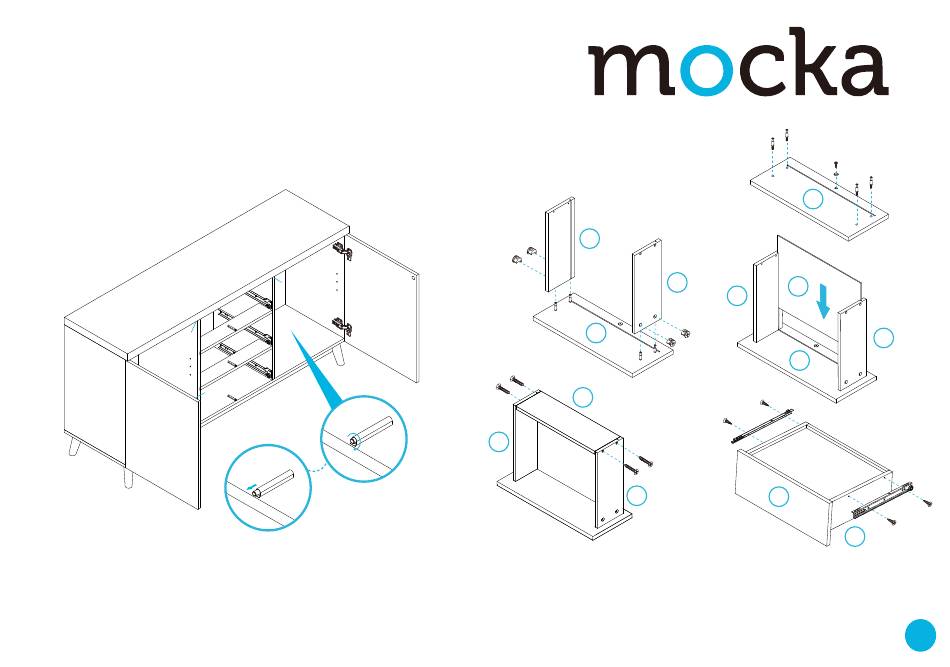

If a clip (J) is not catching on the seal (K), adjust the magnetic end by
twisting it outwards.
mocka.co.nz | mocka.com.au
K
J
J
J
16
16
D
D
15
B
B
19
16
B
B
17
Insert 4x bolts (C) and attach 1x seal (K) using 1x screw (E) to panel [15].
Attach side panels [16] and [17] using 4x locking nuts (D). Slide base panel [18]
down between the grooves of the side panels. Attach back panel [19] using 4x
screws (B). Turn drawer upside down and attach 1x slide rail (T) and 1x slide
rail (S) to the side panels using 4x screws (E). Tighten with a screwdriver.
C
C
E
K
15
17
18
16
D
D
15
E
E
T
15
16
C
C
17
S
E
E
9
