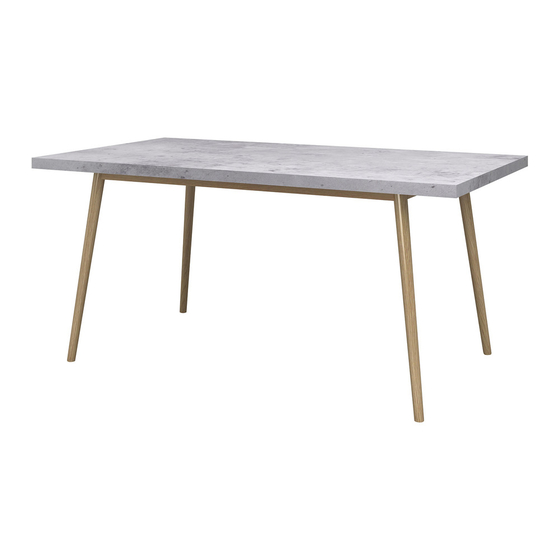

Nava Dining Table

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

screw

x16

x22

felt pad

allen

key x1

Hardware Supplied

Phillips screwdriver required

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

mocka.co.nz | mocka.com.au

| PO BOX 6171, Maroochydore, QLD, 4558

bolt

washer

slip ring

Table of Contents

Do you have a question about the Nava and is the answer not in the manual?

Page 1 Nava Dining Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. screw screw bolt washer felt pad slip ring allen key x1 Hardware Supplied Phillips screwdriver required For quicker assembly, we recommend the use of a power drill on a low-speed setting.
Page 2 Nava Dining Table Assembly Instructions Attach panels [2], [3] and [4] together as shown, using 16x screws (A). Attach panels [2] and [3] to the underside of the table top [1] using 22x Loosely tighten with a screwdriver. screws (B). Tighten with a screwdriver.
Page 3 Nava Dining Table Assembly Instructions Attach the legs [5] to each panel [4] using 8x washers (D), 8x slip ring (G) Carefully turn the table onto its legs, ensuring it’s balanced and steady. and 8x bolts (C). Loosely tighten with the allen key (E). Tighten the (A) You’re done, enjoy!
