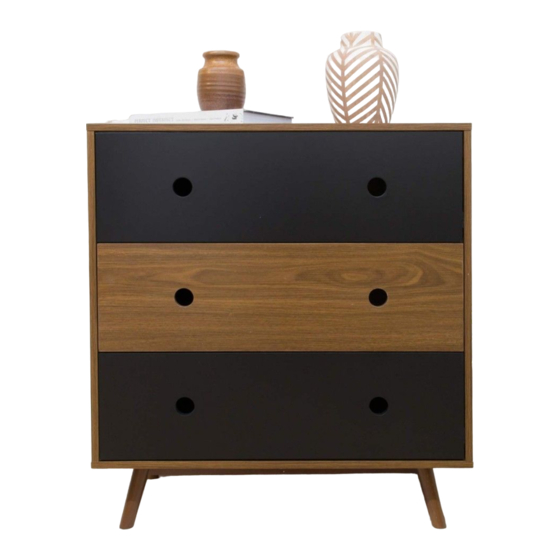

Nixon Three Drawer
ASSEMBLY INSTRUCTIONS
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
A
B
screw
dowel
bolt
locking
x14
x25
nut x25
H
I
J
nut
L & R slide
bolt
x4
rail x6
x4

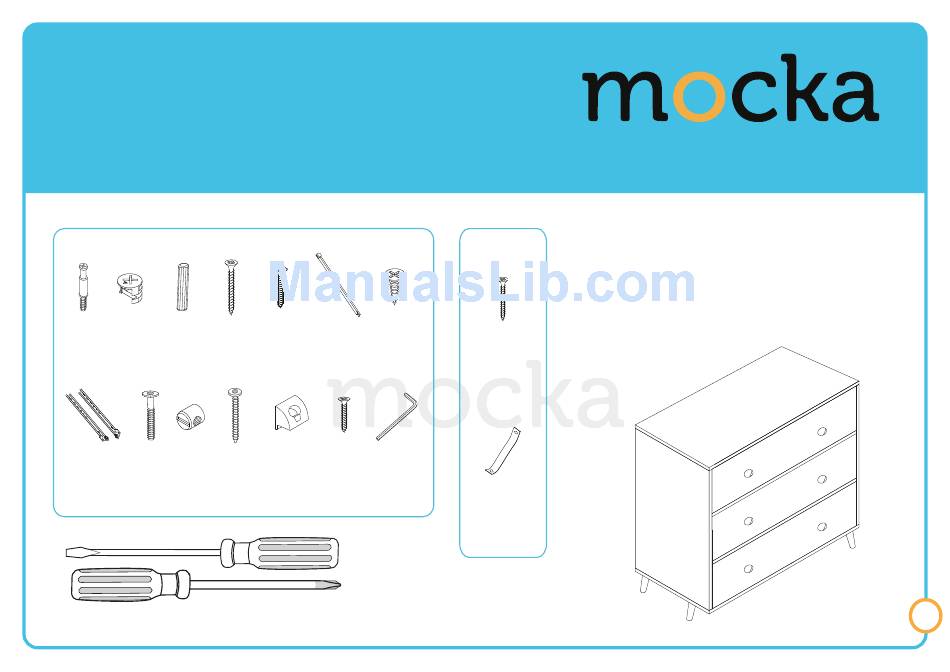

Hardware Supplied
Phillips & Flathead screwdrivers required
mocka.co.nz | mocka.com.au
D
E
G
F
screw
screw
slide
rail x6
x24
x16
x10
K
L
M
N
screw
wedge
screw
allen key
x4
x8
x8
x1
*We recommend using a Flathead screwdriver to
tighten all locking nuts 100% before first use. Please
clear any loose wood from the locking nut holes before
inserting the nut to ensure it locks 100%.
WARNING:
Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, i.e. if a child attempts to
Y
climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note that
different wall materials may require different fixing devices from
those supplied.
screw
x1
Z
safety
strap x1
Wall Strap
1
Advertisement
Related Manuals for Mocka Nixon Three Drawer
Summary of Contents for Mocka Nixon Three Drawer
- Page 1 Nixon Three Drawer ASSEMBLY INSTRUCTIONS Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Nixon Three Drawer ASSEMBLY INSTRUCTIONS back Insert 4x bolts (A) and 4x dowels (C) into the back of panel [1]. Attach 3x slide rails (H) to each panel [2] and [3] and secure with 6x small screws (G). Tighten with a screwdriver. Insert 3x bolts (A) and 3x dowels (C) into each panel [2] and [3] as shown.
- Page 3 Nixon Three Drawer ASSEMBLY INSTRUCTIONS Attach leg panels [10], [11], [12] and [13] together using 4x bolts (I) and Secure panels [5], [8] and [9] to side panels [3] and [2] with 6x locking secure with 4x nuts (J). Tighten with the allen key (N).
- Page 4 Nixon Three Drawer ASSEMBLY INSTRUCTIONS Slide panels [6] and [7] along the grooves between panels [2] and [3] to Attach panel [1] as shown, and secure with 4x locking nuts (B). Tighten form the back of the unit. with a screwdriver.
- Page 5 Jolt Wardrobe Nixon Three Drawer ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Attach panel [4] to the main unit using 4x dowels (C) and secure with Attach the leg panels to panel [4] and secure with 10x screws (E). 4x screws (K). Tighten with the allen key (N).
- Page 6 Nixon Three Drawer ASSEMBLY INSTRUCTIONS Drawers x3 Insert 5x bolts (A) into panel [14]. Secure side panels [16] and [17] with Attach panel [19] behind panel [18] using 1x locking nut (B). Attach panel 4x locking nuts (B). Tighten with a screwdriver. Slide panel [18] down [15] to panels [16], [17] and [19] using 5x screws (D) as shown.
- Page 7 Nixon Three Drawer ASSEMBLY INSTRUCTIONS Insert the completed drawers, ensuring they slide smoothly along the Attach 8x wedges (L) to each corner of the back panel as shown, and rails. secure using 8x screws (M). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 8 Nixon Three Drawer ASSEMBLY INSTRUCTIONS Wall Strap Attach the safety strap (Z) to the underside of the back edge of the top Once assembled lift furniture into place, do not drag. Attach the other of the unit using 1x screw (Y). Tighten with a screwdriver.
