Nava Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
screw
bolt
x24
x20
x12
H
I
J
height
bracket
clip
adjuster x1
x5
x5
P
Q
R
screw
slide
slide
x10
railx3
railx3
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before rst use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au
D
E
F
locking
screw
shelf
x45
nut x24
plugx8
K
L
M
seal
hinge
screw
x5
x4
x24
S
T
U
slide
slide
plastic
railx3
railx3
glide x4

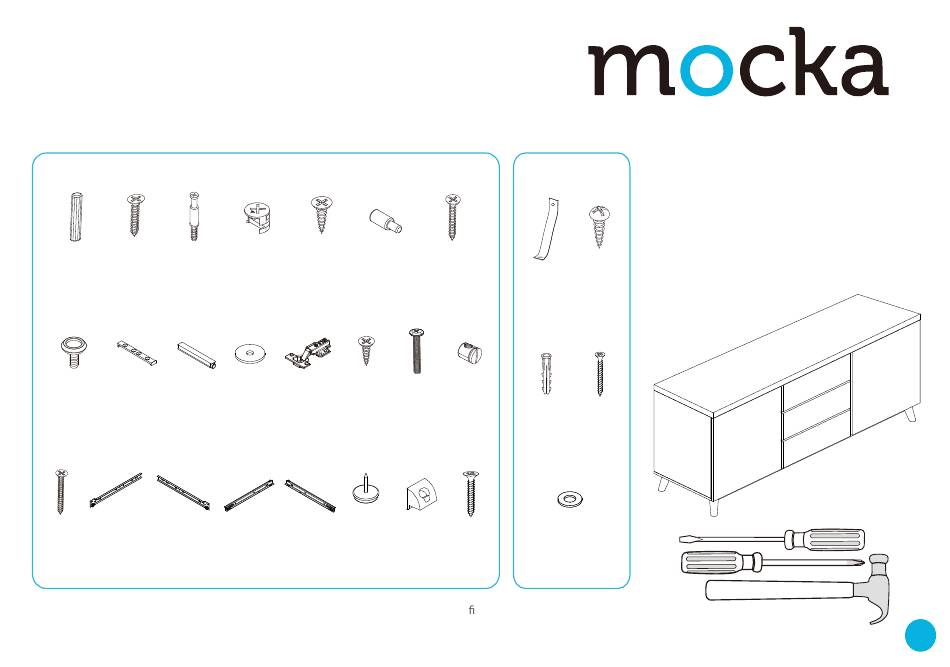

Hardware Supplied
V
G
screw
x8
safety
strap x1
N
O
X
bolt
nut
x4
x4
wall
anchor
x1
A1
B1
Z
washer
wedge
screw
x2
x12
x12
Wall Strap
WARNING:
Any furniture that is not anchored to a wall has the
W
potential to tip over in certain circumstances, i.e. if a child
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping.The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
screw
x1
Y
wall
screw
x1
Phillips & Flathead screwdrivers
and hammer required
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Nava Buffet
Summary of Contents for Mocka Nava Buffet
- Page 1 Nava Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Nava Buffet Assembly Instructions Attach 1x bracket (I) to panel [4] using 2x screws (E). Attach 1x bracket Insert 2x bolts (C) into panel [4]. Insert 2x bolts (C) into panel [5]. (I) to panel [5] using 2x screws (E). Tighten with a screwdriver. Cover each bracket with 1x clip (J) as shown.
- Page 3 Nava Buffet Assembly Instructions Attach 3x slide rails (Q) to panel [4] and secure with 9x screws (E). Attach 1x bracket (I) to each panel [7] using 2x screws (E). Tighten with Attach 3x slide rails (R) to panel [5] and secure with 9x screws (E).
- Page 4 Nava Buffet Assembly Instructions Attach both panels [7] between panels [4] and [5] using 4x dowels (A) Insert 8x bolts (C) into panel [1] as shown. and secure with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 5 Nava Buffet Assembly Instructions Attach panel [1] to panels [2], [3], [4] and [5] using 8x dowels (A) and Slide down panels [9] and [20] between the grooves in panels [2], secure with 8x locking nuts (D). Tighten with a screwdriver.
- Page 6 Nava Buffet Assembly Instructions Attach 1x bracket (I) to panel [8] using 2x screws (E). Tighten with a Attach panel [8] to the rest of the unit using 8x dowels (A) and 8x screws screwdriver. Cover the bracket with 1x clip (J) as shown.
- Page 7 Nava Buffet Assembly Instructions Ensure slot in nut is facing incoming bolt. Attach panels [10] and [11] together as shown using 4x nuts (O) and 4x Attach panels [10] and [11] to panel [8] using 10x screws (P). Attach bolts (N).Tighten with a screwdriver.
- Page 8 Nava Buffet Assembly Instructions NOTE: If the doors are uneven or there is a gap in the middle, loosen or tighten the screw on the door hinge until they are sitting flush. Attach 2x hinges (L) to panel [13] using 4x screws (M), and attach 1x Attach door hinges on panels [13] and [14] to the unit using 16x screws seal (K) and secure with 1x screw (E).
- Page 9 Nava Buffet Assembly Instructions If a clip (J) is not catching on the seal (K), adjust the magnetic end by Insert 4x bolts (C) and attach 1x seal (K) using 1x screw (E) to panel [15]. twisting it outwards. Attach side panels [16] and [17] using 4x locking nuts (D). Slide base panel [18] down between the grooves of the side panels.
- Page 10 Nava Buffet Assembly Instructions strap Insert 8x shelf plugs (F) into the unit at the desired height for the Attach 12x wedges (A1) to the back of the unit as shown, and secure with 12x screws (B1). Now attach 1x safety strap (V) to the back edge of shelves and rest the shelf panels [6] onto them.
- Page 11 Nava Buffet Assembly Instructions strap wall plug screw Once assembled lift furniture into place, do not drag. Use a drill to You’re done, enjoy! create a small hole lining up with the top of the safety strap (V). Fasten to wall using 1x wall plug (X), 1x washer (Z) and 1x screw (Y). Ensure unit is balanced and steady before use.
