Nava Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
screw
bolt
x22
x24
x8
H
I
J
height
bracket
clip
adjuster x1
x4
P
Q
O
nut
slide
slide
x4
railx2
railx2
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before rst use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au
D
E
F
locking
screw
screw
x32
nut x22
x10
K
L
seal
hinge
x4
x4
x4
R
S
T
slide
slide
plastic
railx2
railx2
glide x4

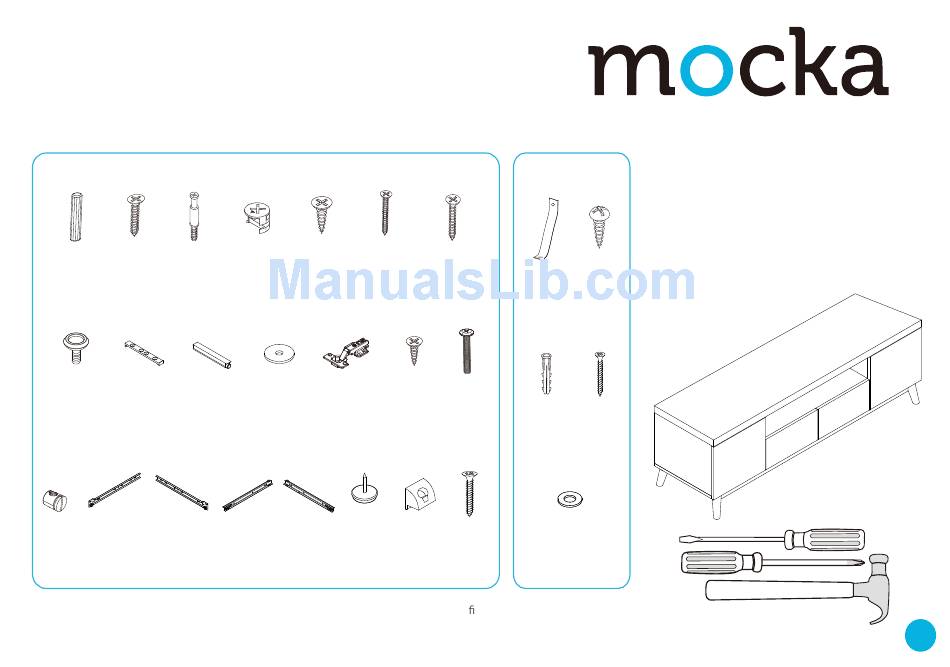

Hardware Supplied
G
V
screw
x10
safety
strap x1
M
N
X
screw
bolt
x24
x4
wall
anchor
x1
U
A1
Z
washer
wedge
screw
x2
x12
x12
Wall Strap
WARNING:
Any furniture that is not anchored to a wall has the
W
potential to tip over in certain circumstances, i.e. if a child
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping.The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
screw
x1
Y
wall
screw
x1
Phillips & Flathead screwdrivers
and hammer required
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nava and is the answer not in the manual?

Questions and answers

Related Manuals for Mocka Nava

Summary of Contents for Mocka Nava

  • Page 1 Nava Entertainment Unit Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
  • Page 2 Nava Entertainment Unit Assembly Instructions Attach 1x bracket (I) to panel [4] using 2x screws (E). Attach 1x bracket Attach 1x slide rail (P) to panel [4] and secure with 3x screws (E) as (I) to panel [5] using 2x screws (E). Tighten with a screwdriver. Cover shown.
  • Page 3 Nava Entertainment Unit Assembly Instructions FLIP Attach 1 x slide rail (P) to one side of panel [7] and secure with 3x Insert 2x bolts (C) into panel [6]. screws (E). Flip the panel over as shown. Attach 1x slide rail (Q) and secure with 3x screws (E).
  • Page 4 Nava Entertainment Unit Assembly Instructions Attach panel [7] to panel [6] using 2x dowels (A) and secure with 2x Attach panels [4] and [5] to panel [6] using 4x dowels (A) and secure with locking nuts (D). 4x locking nuts (D). Tighten with a screwdriver.
  • Page 5 Nava Entertainment Unit Assembly Instructions Insert 8x bolts (C) into the underside of panel [1]. Attach panels [2], [3], [4] and [5] to the bolts in panel [1] using 8x dowels (A) and secure with 8x locking nuts (D). Tighten with a screwdriver.
  • Page 6 Nava Entertainment Unit Assembly Instructions Slide down panels [9] and [10] along the grooves between panels [2], Attach 2x brackets (I) to panel [8] using 4x screws (E). Tighten with a [3], [4] and [5] to form the back of the unit.
  • Page 7 Nava Entertainment Unit Assembly Instructions back slot Ensure slot in nut is facing incoming bolt. Attach panel [8] to the rest of the unit using 10x dowels (A) and secure Attach panels [11] and [12] together using 4x nuts (O) and 4x bolts (N) with 10x screws (G) as shown.
  • Page 8 Nava Entertainment Unit Assembly Instructions Attach leg panels [11] and [12] to panel [8] using 10x screws (F) and Attach 2x hinges (L) to panel [14] and secure with 4x screws (M). Attach tighten with a screwdriver. Attach leg support [13] to panel [8] as 1x seal (K) using 1x screw (E).
  • Page 9 Nava Entertainment Unit Assembly Instructions NOTE: If the doors are uneven or there is a gap in the middle, loosen or tighten the screw on the door hinge until they are sitting flush. Attach door panels [14] and [15] at the hinges using 16x screws (M).
  • Page 10 Nava Entertainment Unit Assembly Instructions Insert 4x bolts (C) and attach 1x seal (K) using 1x screw (E) to panel [16]/[17]. Insert drawers [16] and [17] into the unit as shown. Ensure they slide Attach side panels [18] and [19] using 4x locking nuts (D). Slide base panel [20] smoothly and easily along the rails.
  • Page 11 Nava Entertainment Unit Assembly Instructions strap wall plug strap screw Attach 12 x wedges (U) to the back of the unit as shown, and secure Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety strap (V). Fasten to wall using 12x screws (A1).
