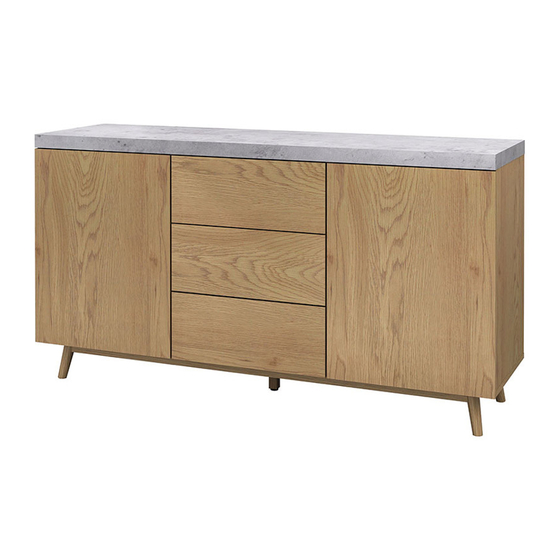

Nava Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
screw
bolt
x24
x20
x28
I
J
K
bracket
clip
seal
x5
x5
x5
Q
R
S
slide
slide
slide
railx3
railx3
railx3
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before rst use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
locking
screw
shelf
x45
nut x24
plugx8
L
N
M
bolt
hinge
screw
x4
x4
x24
T
U
A1
slide
screw
wedge
railx3
x12
x12

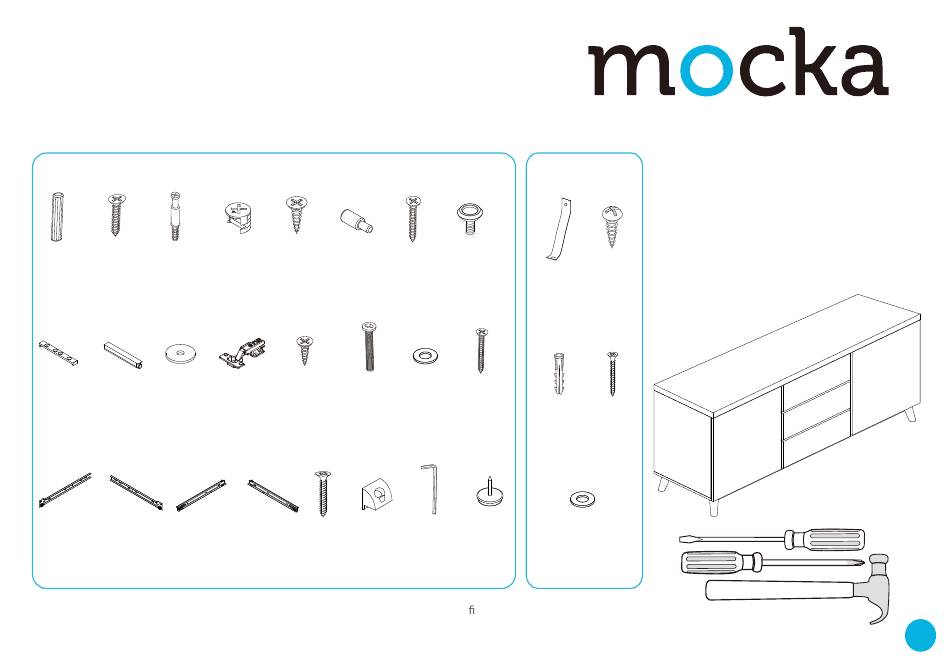

Hardware Supplied
V
G
H
screw
height
adjuster x1
x8
safety
strap x1
O
P
X
screw
washer
x4
x12
wall
anchor
x1
A2
A3
washer
Allen
plastic
glide x4
key x1
Wall Strap
WARNING:
Any furniture that is not anchored to a wall has the
W
potential to tip over in certain circumstances, i.e. if a child
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping.The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
screw
x1
Y
wall
screw
x1
Z
x2
Phillips & Flathead screwdrivers
and hammer required
