Table 3. Rear-Panel Controls and Connections
Item
Description
Handle
Power switch
Power inlet
Equipotential post
USB "B" connector – Computer connection.
USB "A" connectors – Connect a maximum of
four accessories such as:
Keyboard
Printer
Bar-Code reader
Fluid outlets – One per measurement
channel. Channel 1 at right and channel 4 at
left.
Infusion Device Analyzer
Instrument Familiarization
1
2
3
4
5
6

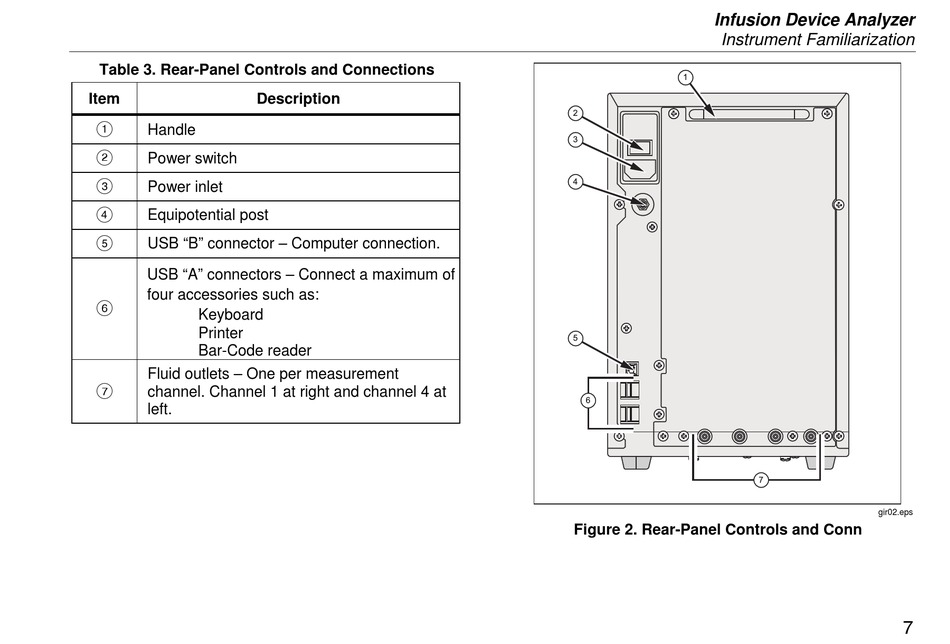

Figure 2. Rear-Panel Controls and Conn
7
gir02.eps
7
