Introduction

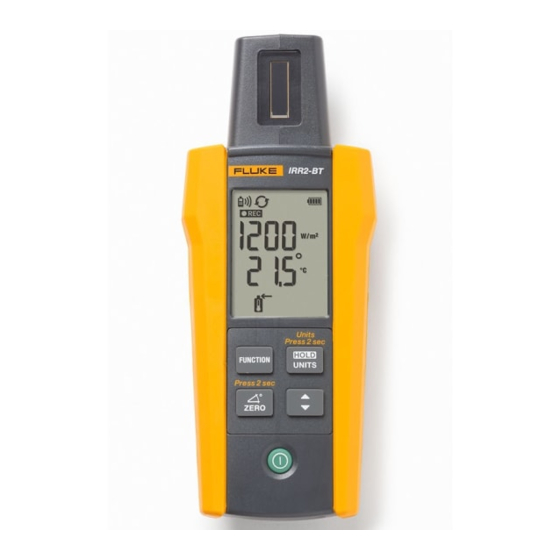

The Fluke IRR2-BT Solar Irradiance Meter Pro (the Meter or
Product) provides digital measurements related to photovoltaic
(PV) panels.
The Meter measures and reads:
Solar irradiation (W/m
panel
Temperature (°F or °C) on the surface of a photovoltaic (PV)
panel
Inclination (degrees) of a photovoltaic (PV) panel
Cardinal degrees with the compass function
The Meter can wirelessly transfer measurements to the
SMFT-1000 PV Analyzer (the Analyzer). This data is used for
IV curve performance analysis of the solar panel and other
measurements of the roof slope and the compass.
The Meter does not connect to smart phones and other
smart devices.
When the date and time on the Meter and the Analyzer match and
the Meter is out of wireless connection range with the Analyzer,
the Meter automatically records the data to memory. This data
can be transferred later to the SMFT-1000.
Contact Fluke
Fluke Corporation operates worldwide. For local contact
information, go to our website: www.fluke.com.
To register your product, or to view, print, or download the latest
manual or manual supplement, go to our website.
Fluke Corporation
P.O. Box 9090
Everett WA 98206-9090
U.S.A.
+1-425-446-5500
PN 5339484 (English) 8/2022
©2022 Fluke Corporation. All rights reserved.
Specifications are subject to change without notice. All Product
names are trademarks of their respective companies.
Solar Irradiance Meter Pro
2
) on the surface of a photovoltaic (PV)
Note
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
fluke-info@fluke.com
IRR2-BT
Users Manual
Advertisement
Table of Contents
Related Manuals for Fluke IRR2-BT
Summary of Contents for Fluke IRR2-BT
- Page 1 IRR2-BT Solar Irradiance Meter Pro Users Manual Introduction The Fluke IRR2-BT Solar Irradiance Meter Pro (the Meter or Product) provides digital measurements related to photovoltaic (PV) panels. The Meter measures and reads: Solar irradiation (W/m ) on the surface of a photovoltaic (PV) ...
-
Page 2: Kit Components
Kit Components The Product contains these items: 1 IRR2-BT Solar Irradiance Meter Pro 1 External Temperature Probe with Suction Cup 1 Carrying Case with Shoulder Strap 1 Mounting Bracket 4 AA IEC LR6 Batteries 1 User Manual ... -
Page 3: Product Overview
Product Overview ON/OFF Button Angle Reset Button Use Angle Reset to measure the angle difference between the solar panel and the surface Function key for Irradiance, Temperature, Compass, and Angle measurements Integrated Temperature Sensor for panel surface ... -
Page 4: Operation
Operation Use the Analyzer to adjust the recording settings, memory, and clock synchronization. See SMFT-1000 Users Manual for more information. 1. Power ON/OFF At power on, the Meter shows the available memory in hours for 2 seconds. The total memory capacity allows continuous recording for 17 hours. - Page 5 The Meter automatically starts recording the irradiance and temperature data and REC shows on the display until the memory is full. When the Meter is not synced, blinks on the display and REC turns off. should not blink at any point. For more information about wireless connection, see the SMFT-1000 Users Manual.
- Page 6 Change Temperature Units >2 s Connect the External Temperature Probe Reset Inclination >2 s HOLD Function...
- Page 7 Irradiance and Internal Sensor Temperature Measurements To measure irradiance and temperature, install the Meter and the bracket on the solar panel. Note For a spot check measurement, position the Meter directly on the PV panel. The internal, embedded conductive sensor in the back of the Meter automatically takes the temperature reading.
-
Page 8: External Temperature Probe Connection
External Temperature Probe Connection Connect the temperature probe to the top of the Meter. The screen automatically shows when connected. The icon indicates that the temperature is now read by the external probe. Place the Meter on or beside the PV panel and connect the temperature probe with the suction cup to the underside of the PV panel. - Page 9 Inclination and Cardinal Direction Place the Meter directly onto the PV panel to get accurate tilt. For surfaces of rooftops with inclinations different than 0°, push for 2 seconds to reset the angle and measure the true inclination of a solar panel. Secure a probe to the solar panel with optional electrical or similar tape to assure reliable mounting.
-
Page 10: Compass Calibration
Compass Calibration The Product contains a compass. The compass is affected by metal in the environment. Always recalibrate the compass: Before the first use. Each time you change the batteries. When you change geographical locations. When there is a significant change in the environment, for ... - Page 11 3. Slowly turn the Product around all three axis in the space using figure 8 movement (approximately 3 seconds/movement). Continue turning the product while slowly rotating your body 360 degrees for three complete body rotations at a steady pace, take at least 1 minute to complete the body rotation. 360°...
-
Page 12: Maintenance
Maintenance Battery Replacement Caution To prevent damage to the Meter: Remove the batteries if the Product is not used for an extended period of time, or if stored in temperatures above 50 °C. If the batteries are not removed, battery leakage may result. -
Page 13: Product Disposal
During long periods of non-use (>60 days), remove the battery and store separately from the Product. Service and Parts Only a qualified technician should service the Product. For service information, contact your nearest Fluke dealer or service center. Specifications Irradiance Measuring range....100 to 1400 W/m²... - Page 14 Batteries .........4x AA IEC LR6 Battery Life (typical)....50 hours Temperature Operating IRR2-BT ......-20 °C to 35 °C, 95 % RH 35 °C to 50 °C, 40 % RH 80PR-IRR......-30 °C to 100 °C Storage ........-30 °C to 60 °C (humidity <80 %) Altitude .........2000 m maximum...
- Page 15 Output Power ......8 dBm SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, Fluke declares that the radio equipment contained in this Product is in compliance with Directive 2014/53/EU. The full text of the EU declaration is available at the following Internet address:...
- Page 16 LIMITED WARRANTY This Fluke product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
