Introduction

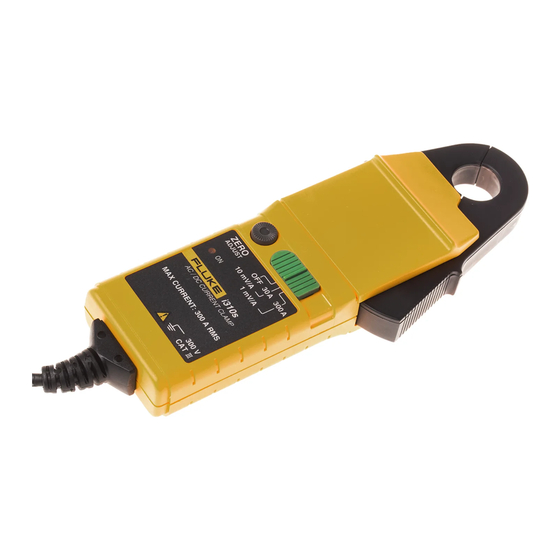

The i310s Current Clamp ("Clamp") has been designed for use
with oscilloscopes and digital multimeters for accurate non-
intrusive measurement of ac, dc and complex waveform currents.
Using advanced Hall Effect technology, the Clamp can
accurately measure currents up to 450 A peak over the
frequency range of dc to 20 kHz. These features make it a
powerful tool for use in inverters, switch mode power supplies,
industrial controllers, automotive diagnostics, and other
applications requiring current measurements and/or waveform
analysis.
Symbols
The table below lists the symbols used on the Clamp and/or in
this manual.
Symbol
~
W
X
T
,
)
P
;
PN 2842344
June 2007
©2007 Fluke Corporation. All rights reserved. Printed in China.
AC/DC Current Clamp
Do not dispose of this product as unsorted municipal
waste. Go to Fluke's website for recycling information.
Important Information. See manual.
Hazardous Voltage. Risk of electric shock.
Double insulation.
Application around and removal from HAZARDOUS
LIVE conductors is permissible.
Conforms to Canadian Standards Association.
Complies with the relevant European standards.
Conforms to Australian standards.
Instruction Sheet
Description
i310s
®
Advertisement
Table of Contents
Related Manuals for Fluke i310s
Summary of Contents for Fluke i310s
- Page 1 AC/DC Current Clamp Instruction Sheet Introduction The i310s Current Clamp (“Clamp”) has been designed for use with oscilloscopes and digital multimeters for accurate non- intrusive measurement of ac, dc and complex waveform currents. Using advanced Hall Effect technology, the Clamp can accurately measure currents up to 450 A peak over the frequency range of dc to 20 kHz.
- Page 2 Safety Instructions Please read this section carefully. It will make you familiar with the most important safety instructions for handling your product. In this instruction sheet, a Warning identifies conditions and actions that pose hazard(s) to the user. A Caution identifies conditions and actions that may damage the calibrator or the test instruments.
- Page 3 • CAT III equipment is designed to protect against the transients in the equipment in fixed equipment installations, such as distribution panels, feeders and short branch circuits, and the lighting systems in large buildings. • Do not use Clamp in wet environments or in locations that hazardous gases exist.
- Page 4 General Characteristics Maximum Conductor 19 mm (0.748 in) diameter Size Output Cable and Safety BNC connector supplied Connections with safety 4 mm adapter Output Zero Manual adjust via thumbwheel Cable Length 2 meters Operating Temperature -10 to +50 °C (14 to +122 °F) Range Storage Temperature Range (with battery...
- Page 5 Typical Performance Plots 300A Range 30A Range Typical Frequency Response i310s Frequency in Hz evy01_4.eps Typical Frequency Response Amps -0.5 Typical Accuracy i310s 30A range -1.5 evy02.eps Typical Frequency Response Amps -0.5 Typical Accuracy i310s 300A range -1.5 evy03.eps Typical Accuracy Curve...
- Page 6 Tactile Barrier Jaws Battery Cover Screw (Captive) evy04.eps Figure 1. i310s AC/DC Current Clamp Warning To avoid injury, when using the Clamp, ensure that your fingers are behind the protective barrier as shown in Figure 1. Do not use the Clamp if any part, including the lead and connector(s), appears to be damaged or if a malfunction of the instrument is suspected.
- Page 7 Current Measurement Switch on the Clamp to the required current range and check that the LED is lit. Connect the output lead to an oscilloscope, multimeter, or other measuring equipment. If necessary, adjust the Clamp output voltage to zero as described in section Zero Adjustment.
- Page 8 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for one year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
