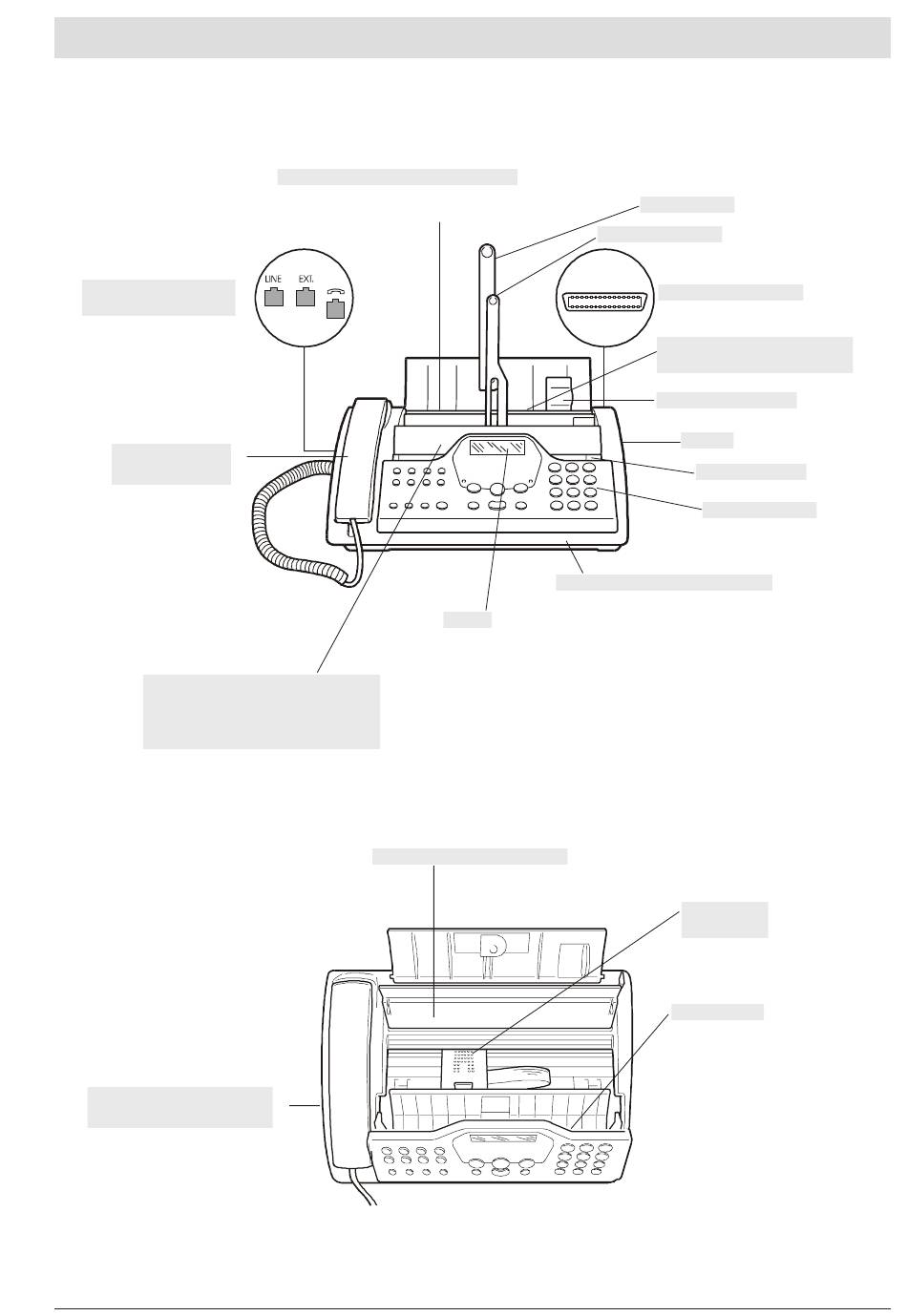

The figure shows the external and internal parts of fax machine.
Connection
sockets
(see base)
Built-in telephone
handset
Automatic feeder for original docu-
ments to be sent and copied (ADF)
Maximum capacity: 15 sheets of 80gr/m
Machine serial number plate
(see base)
Plain paper feed compartment (ASF)
Adjustable to the following paper sizes: A4, Letter and Legal.
Maximum capacity: 50 sheets (80gr/m
2
A4 paper
Print head compartment cover
2
).
Document support
Sent or copied document output
Display
The display consists of two lines of 16
characters each. It shows the date and
time, menu items, error messages, reso-
lution and contrast values.
C
OMPONENTS
Paper support
Parallel port (see rear)
Received or copied document
output
Paper adjusting lever
Speaker
Paper references
Operator console
Print
head
compartment
Optical reader
