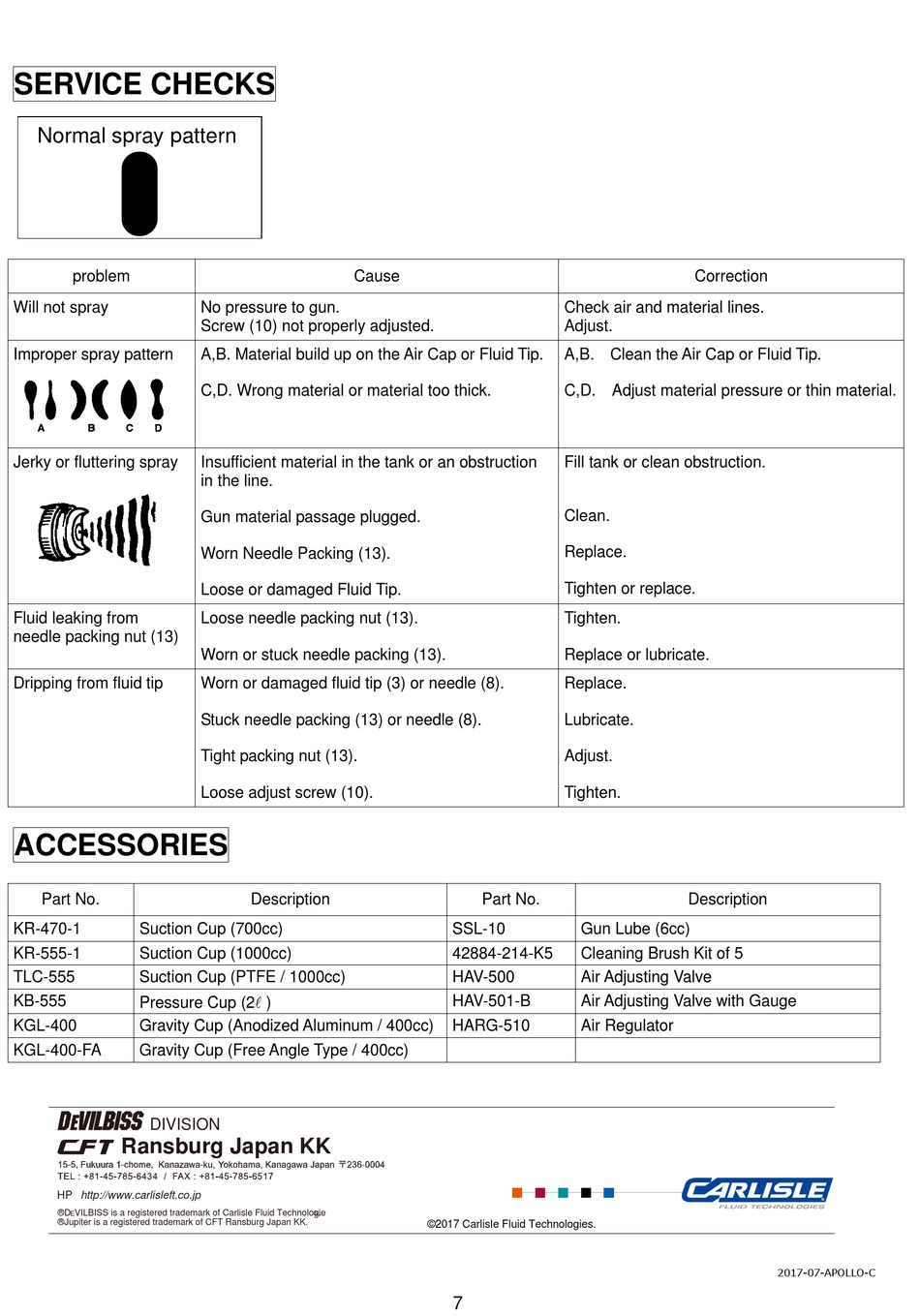

SERVICE CHECKS
Normal spray pattern
problem
Will not spray
Improper spray pattern
Jerky or fluttering spray
Fluid leaking from
needle packing nut (13)
Dripping from fluid tip
ACCESSORIES
Part No.
KR-470-1
Suction Cup (700cc)
KR-555-1
Suction Cup (1000cc)
TLC-555
Suction Cup (PTFE / 1000cc)
KB-555
Pressure Cup (2 )
KGL-400
Gravity Cup (Anodized Aluminum / 400cc)
KGL-400-FA
Gravity Cup (Free Angle Type / 400cc)
DIVISION
Ransburg Japan KK
HP http://www.carlisleft.co.jp
®D
VILBISS is a registered trademark of Carlisle Fluid Technologie
E
®Jupiter is a registered trademark of CFT Ransburg Japan KK.
Cause
No pressure to gun.
Screw (10) not properly adjusted.
A,B. Material build up on the Air Cap or Fluid Tip.
C,D. Wrong material or material too thick.
Insufficient material in the tank or an obstruction
in the line.
Gun material passage plugged.
Worn Needle Packing (13).
Loose or damaged Fluid Tip.
Loose needle packing nut (13).
Worn or stuck needle packing (13).
Worn or damaged fluid tip (3) or needle (8).
Stuck needle packing (13) or needle (8).
Tight packing nut (13).
Loose adjust screw (10).
Description
s.
Check air and material lines.
Adjust.
A,B. Clean the Air Cap or Fluid Tip.
C,D. Adjust material pressure or thin material.
Fill tank or clean obstruction.
Clean.
Replace.
Tighten or replace.
Tighten.
Replace or lubricate.
Replace.
Lubricate.
Adjust.
Tighten.
Part No.
SSL-10
Gun Lube (6cc)
42884-214-K5
Cleaning Brush Kit of 5
HAV-500
Air Adjusting Valve
HAV-501-B
Air Adjusting Valve with Gauge
HARG-510
Air Regulator
