MAINTENANCE

Daily lubrication and cleaning is necessary to maintain the best condition of the gun.
NOTE: Clean the spray gun after used with clean solvent and empty the inside of the hose.
To clean the fluid passage, after removing extra paint, through the appropriate solvent and flush down the residual
paint. When blowing the paint inside the hose and the gun back to pressure tank by pressuring, follow the following
procedure:
Release the pressure in the tank and loosen the lid a little, then make one rotation to loosen the Retaining Ring (1),
which presses the gun cap. Press the point of the gun with cloth and pull the Trigger (14). The atomizing air then
flows back to the fluid hose and the paint in the hose is flushed back to the tank.
CAUTION: To clean the gun body, wipe exterior with solvent dampened cloth. Do not submerge the gun body in solvent as
any solids may get into the air passage and cause troubles.
CAUTION: The air cap can be immersed in solvent for cleaning. If orifices are clogged, use a broom straw or toothpick to
remove obstruction. Never use a steel wire or hard instrument. This will damage air cap and result in a distorted
spray pattern.
NOTE: Do not immerse any plastic parts in solvent for long time.
CAUTION
Lubrication
:
Do not lubricate to any portions where not instructed
Lubricate one drop of Gun Lube SSL-10 daily to the following portions.
Lubricate regularly, Trigger Bearing Stud (16), Air Valve Stem (12) where it enters the valve body and the Needle
(8) where it enters the Packing Nut (13).
When installing Air Cap (2), make sure no foreign materials adhered on Retaining Ring (1) and thread of Baffle
(4) and then oil one drop of Gun Lube SSL-10.
Apply non-silicone grease lightly on Needle Spring (9) and Air Valve Spring.
Do not apply too much grease as it may clog the air passage.

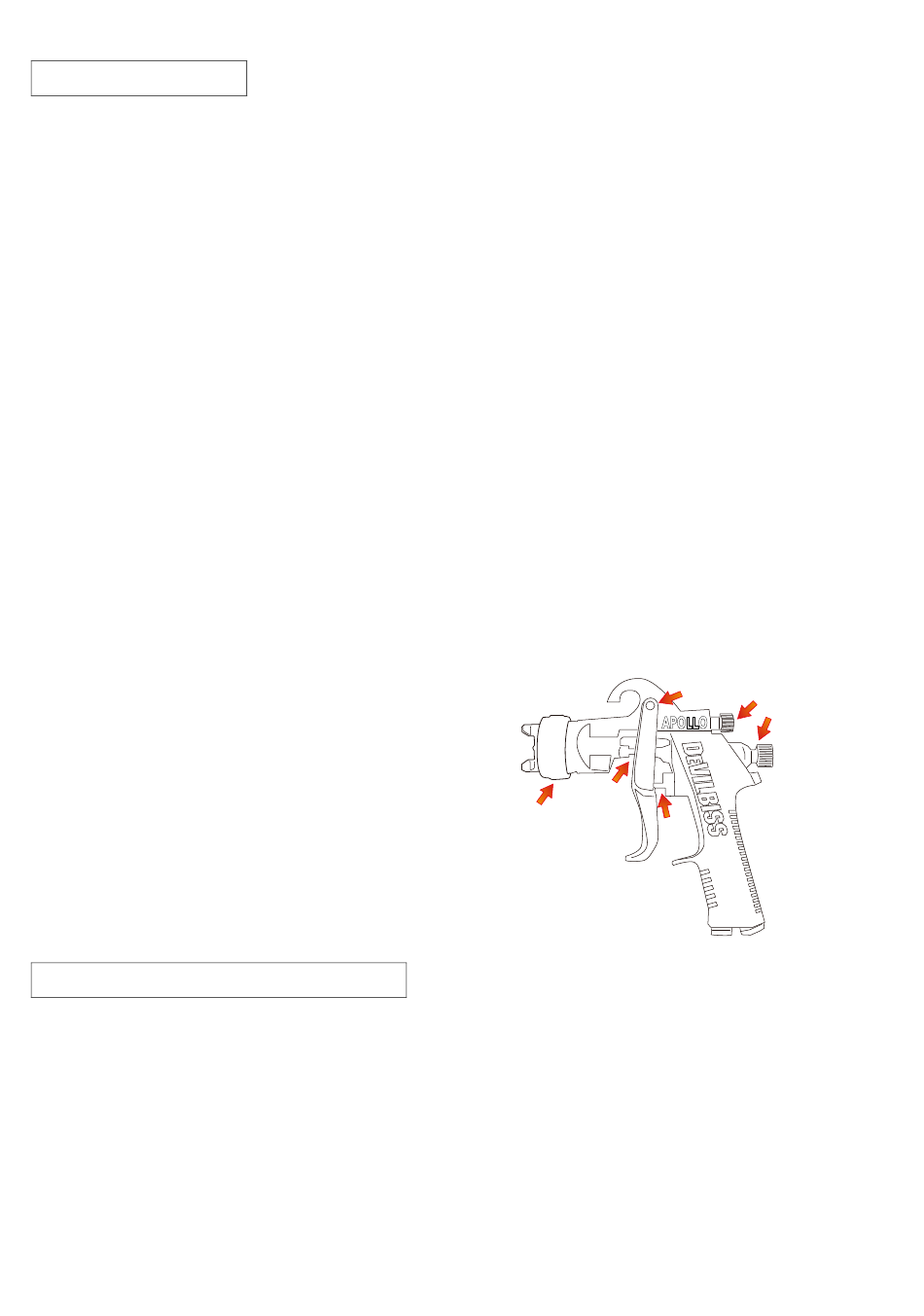

Lubricate daily to the following portions. For lubrication, SSL-10 Gun Lube is recommended.
A) Trigger Bearing Stud
B) Needle Packing
C) Thread of Pattern Valve
Thread of Adjusting Screw
D) Retaining Ring
E) Air Valve Stem

REPLACEMENT OF PARTS

CAUTION: Be careful not to touch the point of Needle (8) as it is sharp.
When removing Fluid Tip (3), Adjust Screw (10) and Needle Spring (9) should also be removed and Needle (8)
should be withdrew or retreated. Turn the Pattern Valve (11) fully counter-clockwise.
Tools should be 1/2" offset wrench, box wrench or DeVilbiss wrench APOLLO-34, do NOT use open wrench or
adjustable wrench.
Recommended torque of fluid tip is 20N.m.
To replace Fluid Inlet Nipple (20) and Air Inlet Nipple (19), apply LOCKTIGHT 242 and tighten.
Recommended torque 16 - 20N・m.
B
D
6
A
C
E
