DeVilbiss AGX-552 Operation Manual

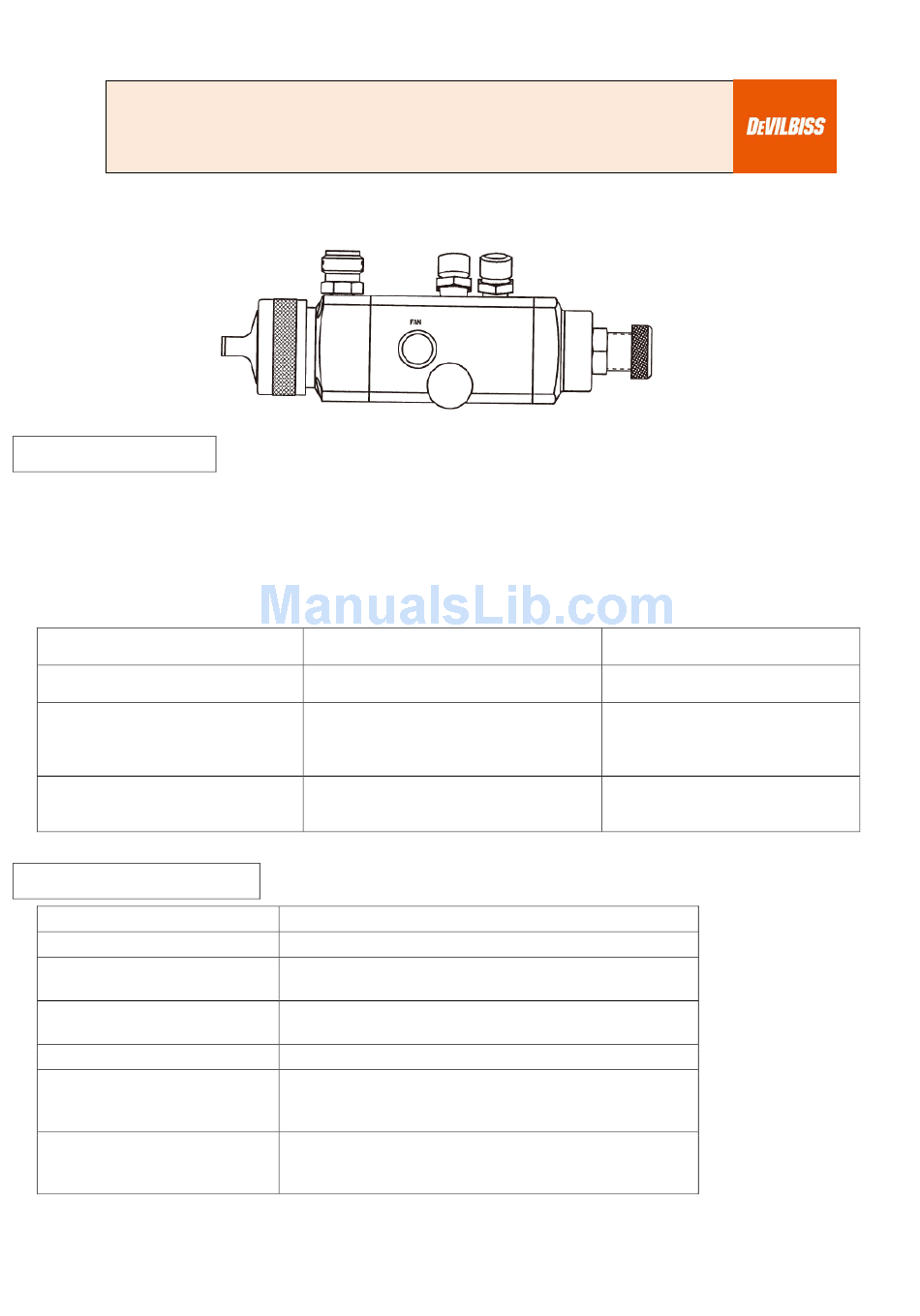

AUTOMATIC SPRAY GUNS OPERATION MANUAL
Important：Read and follow all instructions and SAFETY PRECAUTIONS before using this equipment.
Retain for future reference.
DESCRIPTION
The AGX spray gun is used on automatic and semi-automatic machines where mass production spraying of articles is
necessary or hand spraying is not accurate enough. Models and application information follows.
NOTE:
This gun may be used with chlorinated solvents. Aluminum is not used in fluid passages. If using chlorinated
solvents, make sure all other fluid handling components are also compatible.
Chart 1 MODELS
Model No.
(Available Tip Sizes)
AGX-550 (AC, D, E, FF, FX, G)
AGX-552 (D, EE, FF)
AGX-553 (E, FF, FX)
SPECIFICATIONS
Max. Air Pressure
Max. Fluid Pressure
Cylinder Air Pressure
Weight
Mounting Stud Diameter
Wetted Parts
Hose Connections
* For installations where 50 psi cylinder air is not available, the inner (red) piston spring can be removed which lowers the
minimum cylinder air to approximately 37 psi. Refer to Operations, page 5, paragraph 2.
AGX-550, AGX-552 & AGX-553
Typical Applications
Most conventional materials and most
waterbornes and chlorinated solvents.
Abrasive materials (i.e. porcelain
enamel, ceramic glazes, buffing
compounds) and/or water mix materials.
Includes abrasive fluid seal.
Waterbornes and more corrosive
materials (below 7 pH)
0.69MPa (100 psi)
0.69MPa (100 psi)
Min. 0.35MPa (*50 psi)
Max. 0.69MPa (100 psi)
without mounting stud 737g
with mounting stud 865g
3/4" (see Accessories for Optional 1/2" mounting)
AGX-550 300 & 400 Gr.Stainless, PTFE
AGX-552 300 & 400 Gr. S.S., carboloy, PTFE
AGX-553 300 Gr. S.S., PTFE, U.H.M.W. Poly.
- Fluid Inlet 3/8" NPS(M)
- Cylinder Air 1/4" NPS(M)
- Atomization Air 1/4" NPS(M)
Fluid Tip/Needle Construction
400 Gr. Stainless
303 Gr. Stainless
Carboloy, 400 Gr.
Stainless
303 Gr.Stainless
w/U.H.M.W.poly.
insert
1
