DeVilbiss AGF-508 Operation Manual

AGF-508 Automatic Gun
Read and follow all instructions and SAFETY PRECAUTIONS

DESCRIPTION

A lightweight automatic spray gun for small work suitable for use with most solvent based coating materials. The design
features, a single air supply to operate the single acting cylinder and provide the atomising air. A remotely positioned two-way
control valve (supplied by user) triggers the gun. Coating material supply is by a pressure feed system.
IMPORTANT: These guns are not designed for use with highly corrosive or highly abrasive coating material and if used with
such materials it must be expected that the need for thorough cleaning and/or the necessity for replacement parts will be
increased. If there is any doubt regarding the suitability of a specific material, advise what material is to be used and/or submit
a sample for test.

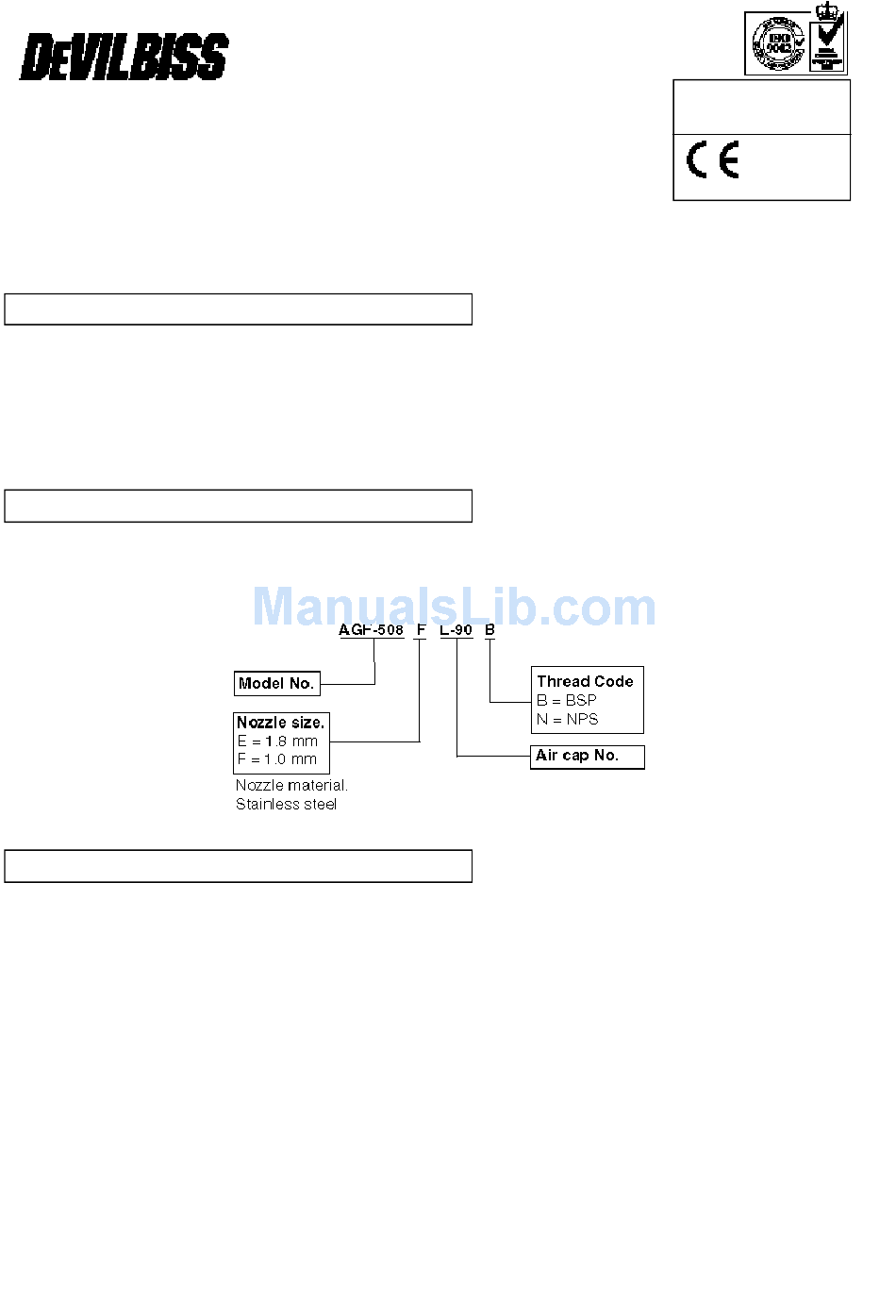

MODELS

AGF-508EL-92 Spray gun fitted with 1.8 mm nozzle and No. 92 air cap.
AGF-508FL-90 Spray gun fitted with 1.0 mm nozzle and No. 90 air cap.
When ordering add the hose connecting thread required.

SPECIFICATIONS

HOSE CONNECTION:
Air supply:
Coating material supply:
MAXIMUM RECOMMENDED WORKING PRESSURES:
Air supply
Coating material supply
MINIMUM CYLINDER AIR PRESSURE:
WEIGHT:
Gun less mounting stud
Mounting stud
Operation Manual:
Important:
before using this equipment
THREAD CODE
'B' 'N'
1 1
/ " BSP / " NPS
4 4
1 1
/ " BSP / " NPS
4 4
2
: P = 7 bar (100 lbf/in ).
1
2
: P = 7 bar (100 lbf/in ).
2
2
: 4 bar (60 lbf/in ).
: 375g.
: 110g.
© ITW LTD 1994
SB-E-2- 782-B
