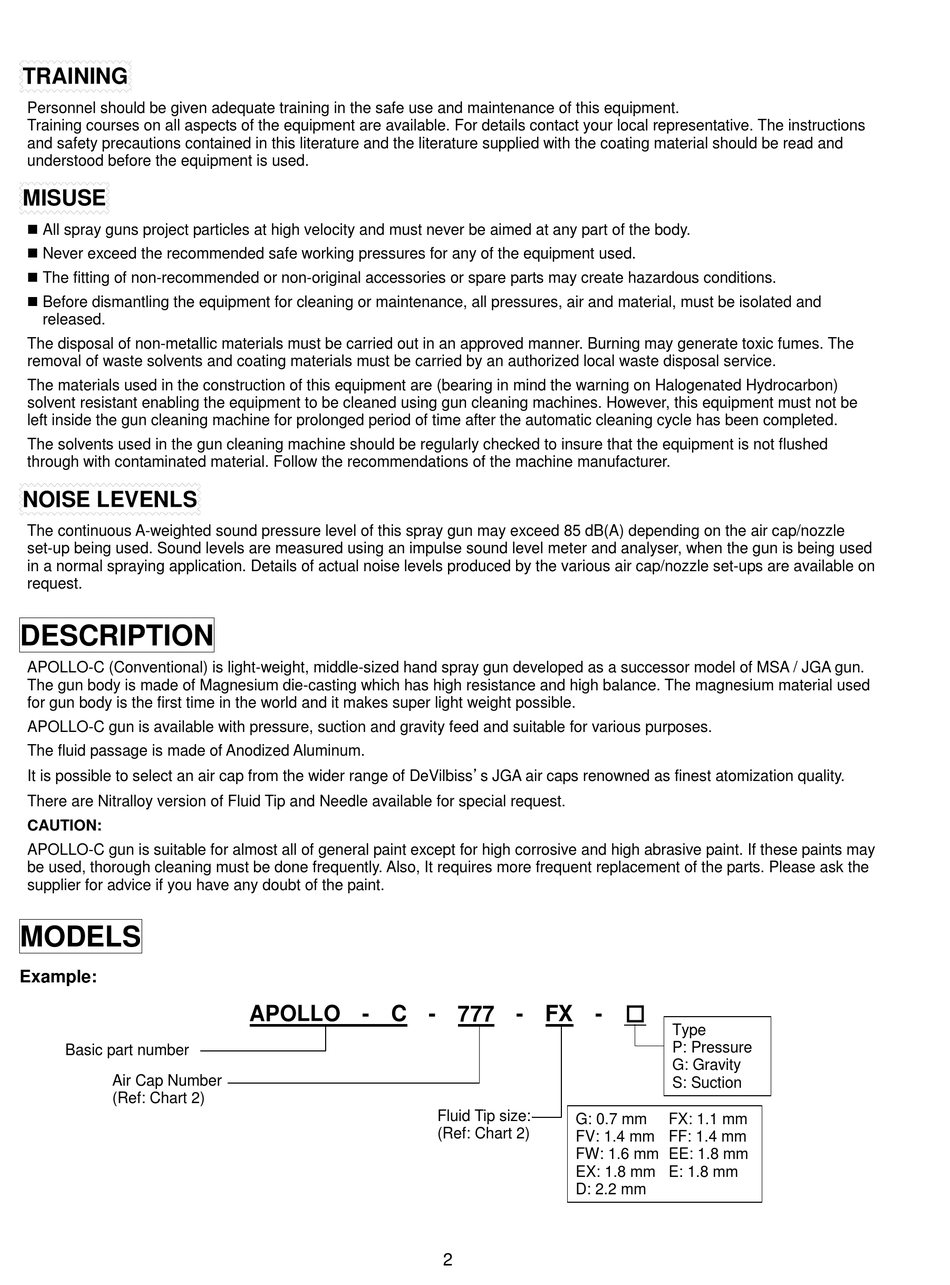

DeVilbiss APOLLO-C Series Operation Manual page 2

TRAINING
Personnel should be given adequate training in the safe use and maintenance of this equipment.
Training courses on all aspects of the equipment are available. For details contact your local representative. The instructions
and safety precautions contained in this literature and the literature supplied with the coating material should be read and
understood before the equipment is used.
MISUSE
 All spray guns project particles at high velocity and must never be aimed at any part of the body.
 Never exceed the recommended safe working pressures for any of the equipment used.
 The fitting of non-recommended or non-original accessories or spare parts may create hazardous conditions.
 Before dismantling the equipment for cleaning or maintenance, all pressures, air and material, must be isolated and
released.
The disposal of non-metallic materials must be carried out in an approved manner. Burning may generate toxic fumes. The
removal of waste solvents and coating materials must be carried by an authorized local waste disposal service.
The materials used in the construction of this equipment are (bearing in mind the warning on Halogenated Hydrocarbon)
solvent resistant enabling the equipment to be cleaned using gun cleaning machines. However, this equipment must not be
left inside the gun cleaning machine for prolonged period of time after the automatic cleaning cycle has been completed.
The solvents used in the gun cleaning machine should be regularly checked to insure that the equipment is not flushed
through with contaminated material. Follow the recommendations of the machine manufacturer.
NOISE LEVENLS
The continuous A-weighted sound pressure level of this spray gun may exceed 85 dB(A) depending on the air cap/nozzle
set-up being used. Sound levels are measured using an impulse sound level meter and analyser, when the gun is being used
in a normal spraying application. Details of actual noise levels produced by the various air cap/nozzle set-ups are available on
request.
DESCRIPTION
APOLLO-C (Conventional) is light-weight, middle-sized hand spray gun developed as a successor model of MSA / JGA gun.
The gun body is made of Magnesium die-casting which has high resistance and high balance. The magnesium material used
for gun body is the first time in the world and it makes super light weight possible.
APOLLO-C gun is available with pressure, suction and gravity feed and suitable for various purposes.
The fluid passage is made of Anodized Aluminum.
It is possible to select an air cap from the wider range of DeVilbiss's JGA air caps renowned as finest atomization quality.
There are Nitralloy version of Fluid Tip and Needle available for special request.
CAUTION:
APOLLO-C gun is suitable for almost all of general paint except for high corrosive and high abrasive paint. If these paints may
be used, thorough cleaning must be done frequently. Also, It requires more frequent replacement of the parts. Please ask the
supplier for advice if you have any doubt of the paint.
MODELS
Example:
Basic part number
Air Cap Number
(Ref: Chart 2)
APOLLO - C - 777 - FX - □
Fluid Tip size:
G: 0.7 mm
(Ref: Chart 2)
FV: 1.4 mm FF: 1.4 mm
FW: 1.6 mm EE: 1.8 mm
EX: 1.8 mm E: 1.8 mm
D: 2.2 mm
2
Type
P: Pressure
G: Gravity
S: Suction
FX: 1.1 mm
