DeVilbiss SGK-600-PR Service Instructions

HVLP Transtec
Model SGK - 600 - PR
Specifications:
• Pressure at spray gun inlet: up to 32 psi
• Paint flow rate: 270 ml/min
• Air consumption: 9,8 cfm
• Pattern size: 10" at 7" distance
Note: Figure obtained with metallic polyester base at
24 seconds viscosity #4 Ford cup.
Benefits:
• Less overspray
• Paint savings
• Cost reduction
Respect your work and protect
your equipment:
USE DEVILBISS ORIGINAL
SPARE PARTS.
Replacement kits
K-5026: Seal replacement kit, items 11(2x) and 12.
K-5027: Air valve replacement kit, items 11(2x), 12, 13 and 14.
K-5028-20: Tip, needle and gasket replacement kit, items 3, 4, 6, 16 and 17.
∇ K-5029:
Items 4, 11(2x), 12 and 32 replacement kit.
K-5030: Baffle replacement kit, items 4 and 5.

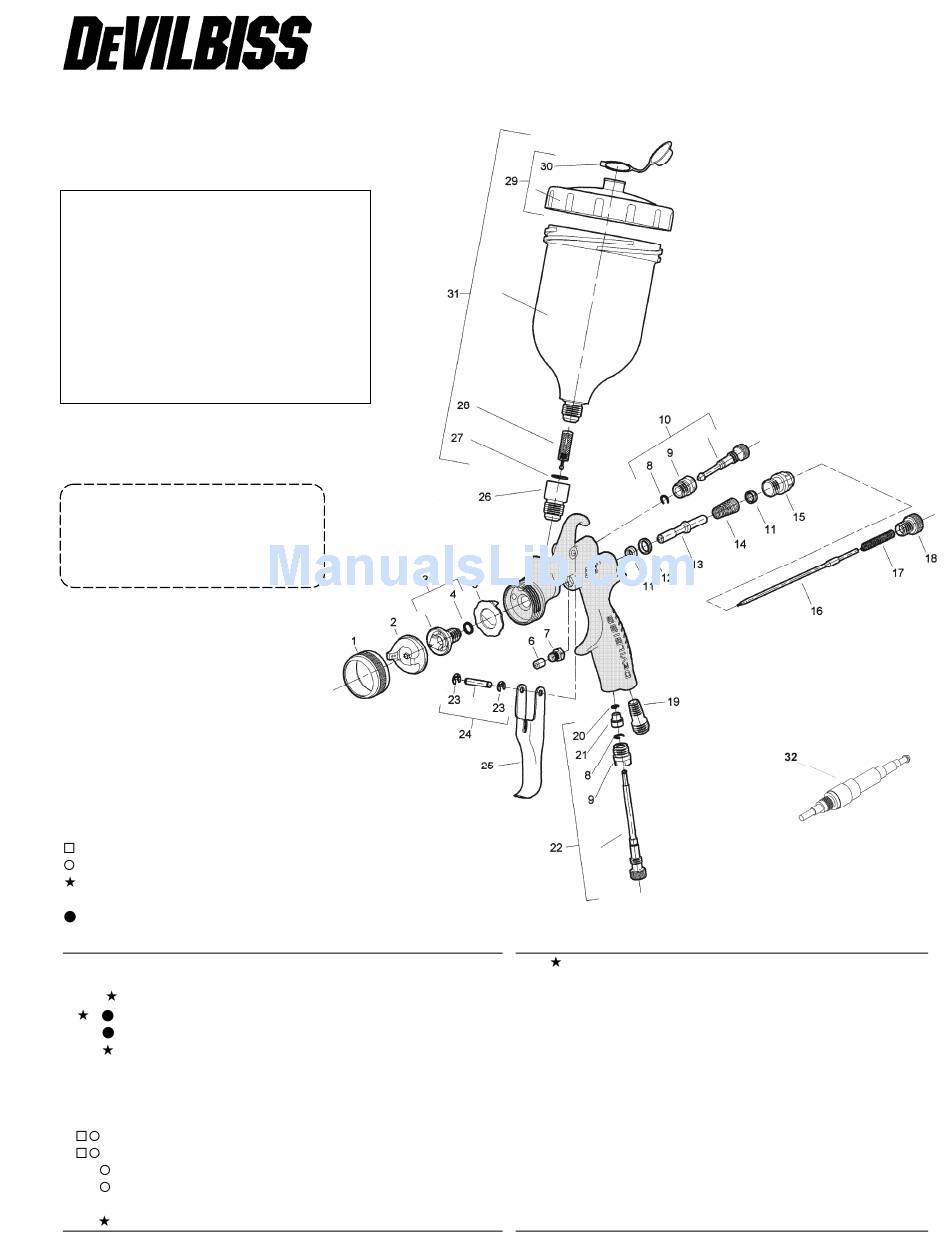

Ref. Part N.°
1 SGK-0023
2 BSK-0158-510
3 -
∇
-
4
5 -
SGK-0037
6
7 SGK-0036
8 SST-8416
9 SGK-0500
10 SGK-0501
∇11
-
∇12
-
13 -
14 SGK-0032
15 SGK-0034
-
16
gravity feed spray gun
Description
Retaining ring
Air cap
Fluid tip
Gasket
Baffle
Packing
Packing gland nut
Retaining ring
Spray pattern adjustment valve bushing
Spray pattern valve
U-cup seal
Air valve seat
Air valve stem
Air valve spring
Air valve bushing
Fluid needle
Ref. Part N.° Description
SGK-0400 Fluid needle spring
17
18 SGK-0035 Fluid adjustment knob
19 PTGA-0029 Nipple
20 BSS-240104 Retaining ring
21 SGK-0041 Air adjusting valve head
22 SGK-0502 Air adjusting valve assembly
23 BSS-240106 Retaining ring
24 K-5025 Trigger pin assembly
25 SGK-0020 Trigger
26 SGK-0021 Fluid nipple
27 KGP-0012 Gasket
28 KGP-0005 Filter
29 GFC-0402 Lid assembly
30 GFC-0002 Drip free vent lid
31 GFC-0501 Cup assembly
∇ 32
- Assembly tool
Service Instructions
BYC-069-A
