GE DigitalFlow GS868 Programming Manual page 151

March 2008
Clearing a Site from the
Meter
Saving a Site in Text Form
C-14
To clear a site from the meter:
1. Highlight the site in the left pane. (See Figure C-14 on page C-12.)
2. Click Clear Site From Meter.
3. The program asks for confirmation. Click
the designated file.
To store the data from a site file as a text file for display or printout:
1. Highlight the site in the left pane. (See Figure C-14 on page C-12.)
2. Click Save Site Print to PC.
3. The Site File Selection window (shown in Figure C-15 on page C-
12) opens. Enter the desired site name (now with a .prt suffix) and
[Save]
click . PanaView displays a text version of the site, as shown
in Figure C-17 below.

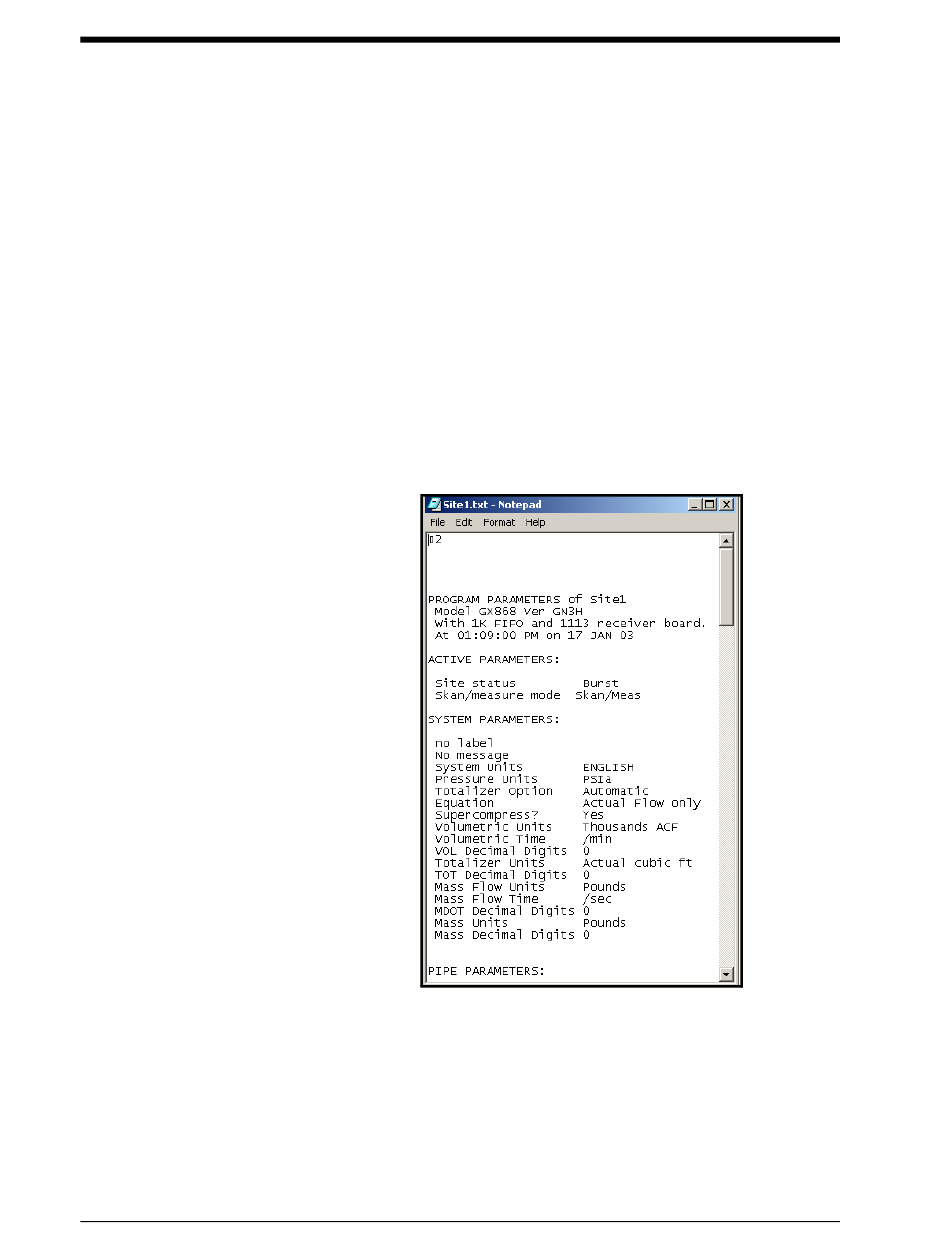

Figure C-17: Printout of Site File
4. Click
[Close]
once to close the Site File Operations window, and a
second time to close the Properties window and return to the
Meter Browser.
[OK]
. The meter deletes
Programming with PanaView
