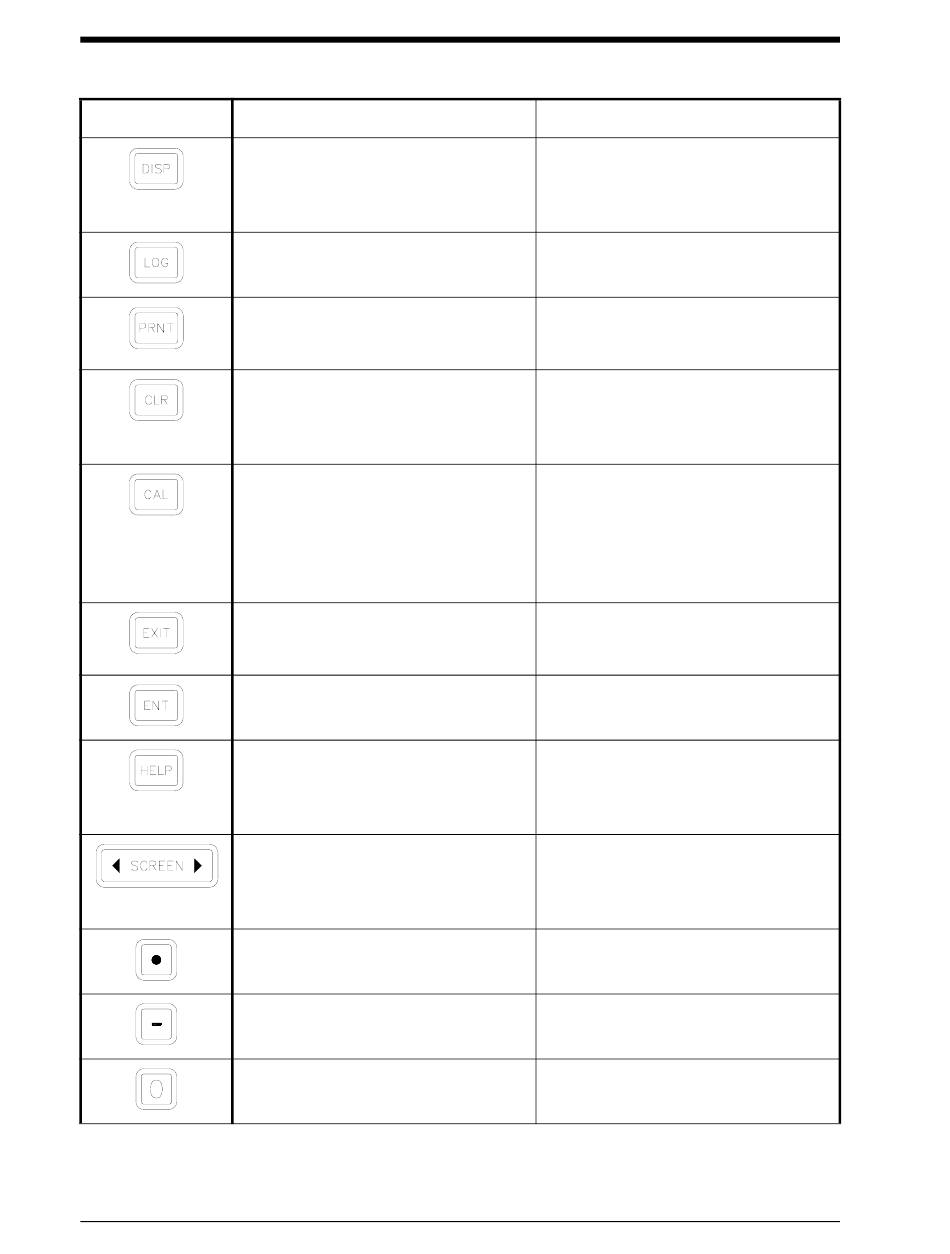

Table 1-1: Model GS868 Key Functions (Continued)
Key
Display Key - use to display data in a
variety of numeric and graphic for-
matting options. See Chapter 2 for
details.
Log Key - use to set up logs. See
Chapter 3 for details.
Print Key - use to print live measure-
ments, log files and signal arrays. See
Chapter 4 for details.
Clear Key - use to reset totals and to
delete site and log files from the
Model GS868 memory. See Chapter 5
for details.
Calibration Key - use to calibrate the
analog inputs and outputs and to
test the alarm relays and the total-
izer/frequency outputs. See Chapter
1, Calibration, in the Service Manual
for details.
Exit Key - use to move up one level in
the user program or to exit the user
program.
Enter Key - use to confirm the most
recent input information.
Help Key - use to access the Model
GS868's context-sensitive on-line
help system. See the next section for
details.
Screen Key - press the left side to
select the left display pane or press
the right side to select the right dis-
play pane.
Decimal Point Key - press to enter a
decimal point during numeric entry.
Minus Key - use to enter a minus sign
or a dash.
Zero Key - use to enter the number 0. Use to enter the letter Y.
1-4
Unshifted Function Shifted Function
Use to enter the letter O.
Use to enter the letter X.
Use to enter the letter R.
Use to enter the letter H.
Use to enter the letter P.
Use to enter the letter J.
Use to enter the letter K.
Use to enter the letter I.
Press the left side to enter the letter V
or press the right side to enter the
letter W.
Use to enter the letter Z.
Use to enter a space character.
