Appendix B, Electronic lock

The Robin has a built-in voltage-free relay contact. The Robin is not able to power a electronic lock,
a power supply is required.
There are many different electronic locks on the market. We advise to use the prescribed method of
the electronic lock manufacturer to connect the Robin.
This Appendix shows two common ways to connect the Robin to the electronic door lock. That
doesn't mean that these two options are the only options possible!

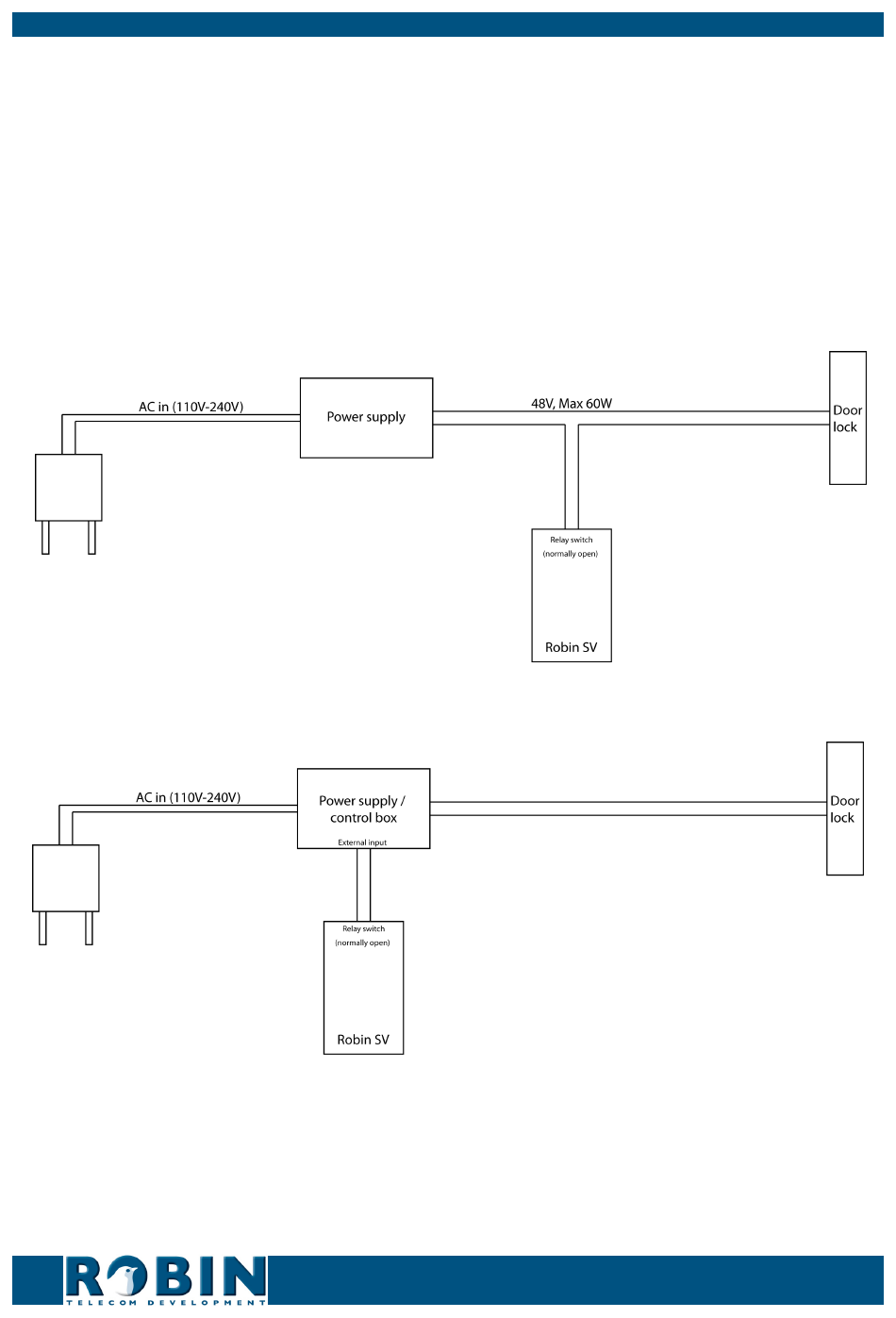

Basic electronic door lock with power supply:
Electronic door lock with input contact on the control box:
! Note: The relay switch of the Robin doesn't supply power for the electronic lock! Make sure that
the switched voltage does not exceed 48V and the switched power is max. 60W. !
